- YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017
FRONT SUSPENSION WHEEL

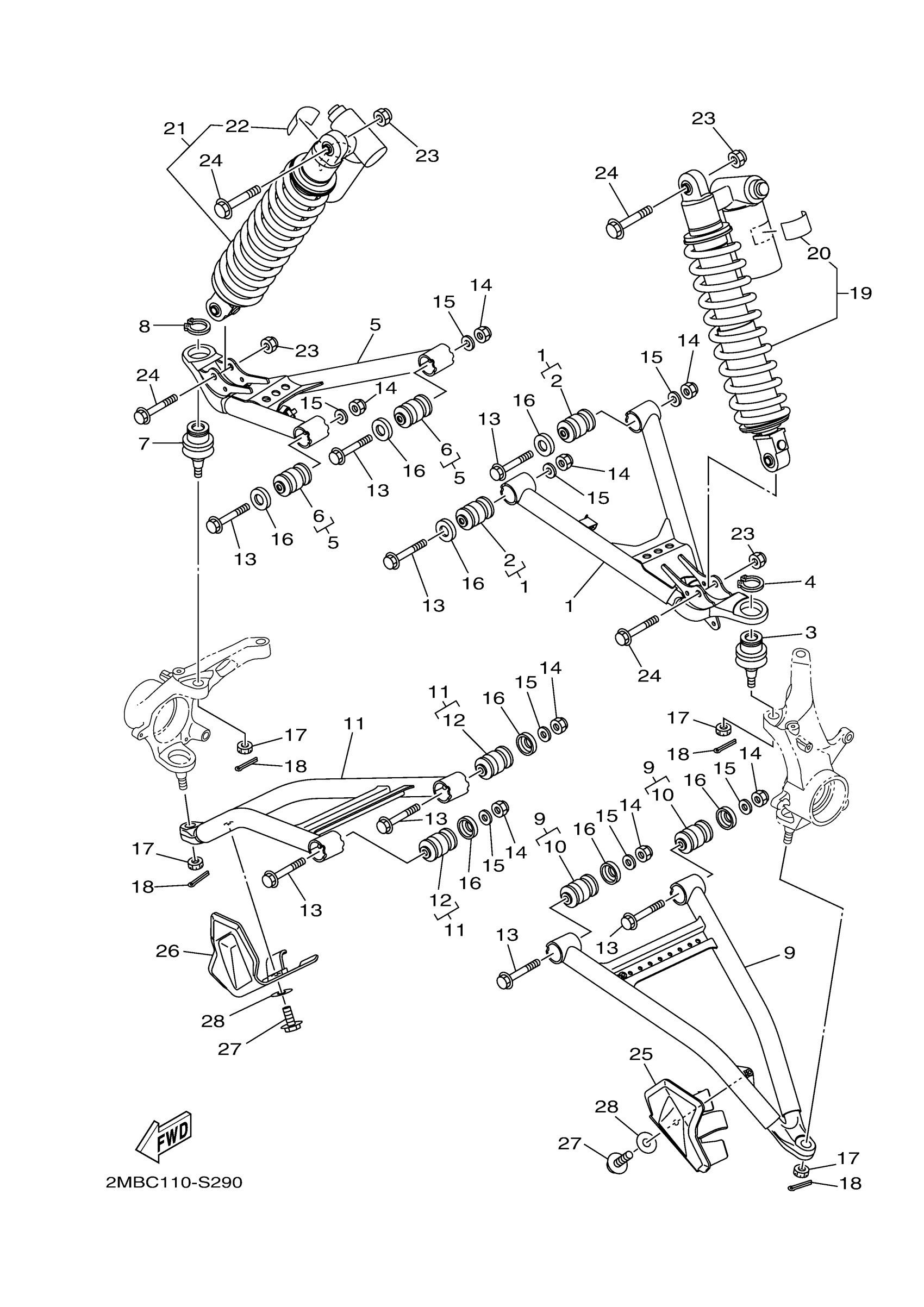

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
5
FRONTUPPERARMCOMP.(RIGHT)
1XD-F3550-01-00
Unavailable
11
FRONT LOWER ARM CO
2MB-F3580-00-00
Unavailable
16
WASHER
5KM-22149-10-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
FR. SHOCK ABSORBER
2MB-F350A-00-00
Unavailable
20
LABEL,WARNING
1HP-F2259-01-00
Unavailable
21
FR. SHOCK ABSORBER
2MB-F350B-00-00
Unavailable
22
LABEL,WARNING
1HP-F2259-01-00
Unavailable
24
BOLT, FLANGE
90105-10283-00
Unavailable
25
COVER, UNDER 1
2MB-F3123-01-00
Unavailable
26
COVER, UNDER 2
2MB-F3133-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06137-00
Unavailable
28
WASHER, PLATE
90201-06036-00
Unavailable
