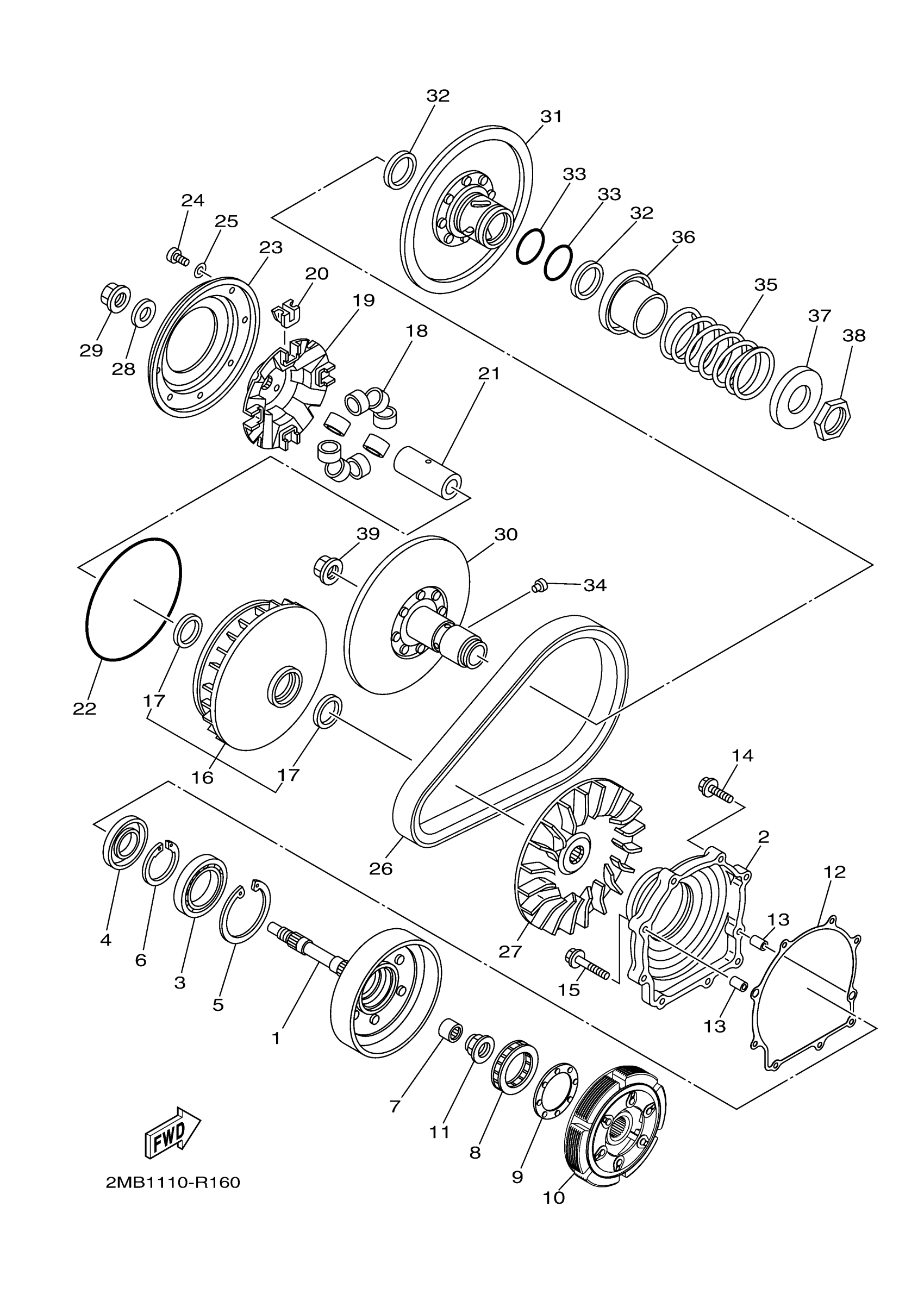

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COM

2PG-16611-00-00

$367.99

2

HOUSING, BEARING 1

3B4-15163-00-00

$111.99

3

BEARING

93316-01003-00

$104.99

4

OIL SEAL

93102-35004-00

$21.99

5

CIRCLIP (70R)

93420-80066-00

$14.99

6

CIRCLIP

93410-46079-00

$8.49

7

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

8

BEARING, ONE WAY

4SH-16664-00-00

$154.99

9

RING, SEAL

1HP-16717-00-00

$31.99

10

CLUTCH CARRIER ASS

2PG-16620-00-00

$336.99

11

NUT

90179-22021-00

$25.99

12

GASKET, COVER PINI

2MB-E5463-00-00

$10.99

13

PIN, DOWEL

2MB-E5181-00-00

$3.17

14

BOLT 1

2MB-E5481-50-00

Unavailable

15

BOLT 1

2MB-E5481-30-00

$1.56

16

PRIMARY SLIDING SHEAVE COMP.

2MB-E7606-00-00

Unavailable

17

OIL SEAL

2MB-F3145-00-00

Unavailable

18

WEIGHT

2MB-E7632-00-00

Unavailable

19

CAM

3B4-17623-02-00

Unavailable

20

SLIDER

16B-17653-00-00

Unavailable

21

COLLAR

2MB-E7645-00-00

Unavailable

22

O-RING

2MB-E3473-00-00

Unavailable

23

STOPPER

2MB-E7639-00-00

Unavailable

24

SCREW, PAN HEAD

90157-04006-00

Unavailable

25

WASHER 2

2MB-E1558-00-00

Unavailable

26

V-BELT

1XD-17641-00-00

Unavailable

27

SHEAVE, PRIMARY FIXED

3B4-17611-00-00

Unavailable

28

WASHER

2MB-E7648-00-00

Unavailable

29

NUT

90179-16005-00

Unavailable

30

SECONDARY FIXED SHEAVE COMP.

1XD-17660-00-00

Unavailable

31

SECONDARY SLIDING

2PG-17670-00-00

Unavailable

32

OIL SEAL

93104-41119-00

Unavailable

33

O-RING (10L)

93210-44545-00

Unavailable

34

PIN, GUIDE

4CW-17664-00-00

Unavailable

35

SPRING, COMPRESSION

90501-650A0-00

Unavailable

36

SEAT, SECONDARY SPRING

4WV-17684-00-00

Unavailable

37

SEAT, SPRING

4WV-17644-00-00

Unavailable

38

NUT (5G3)

90170-36279-00

Unavailable

39

NUT

90179-16005-00

Unavailable
