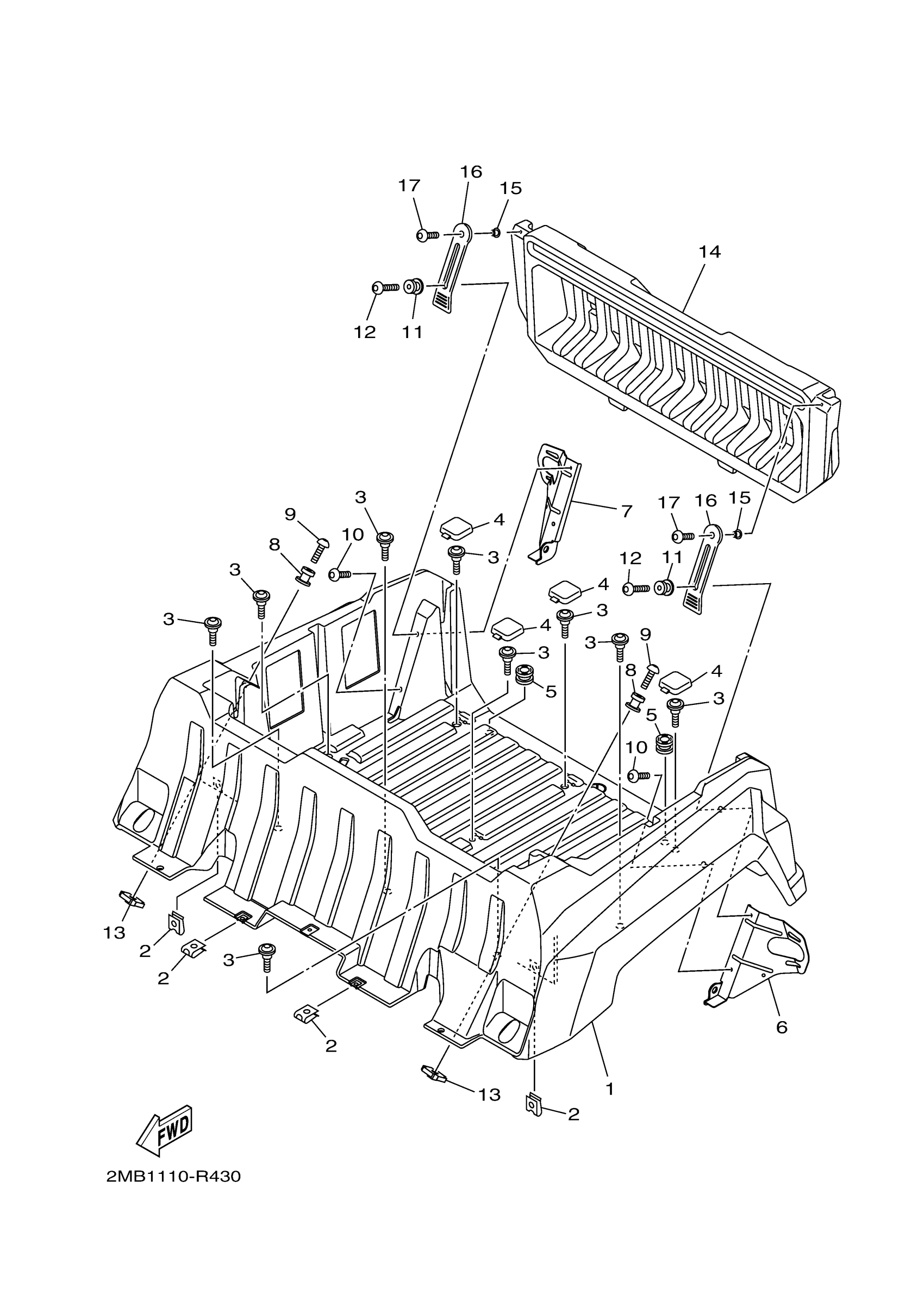

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 CARRIER Diagram

#

Description
Price

1

BOX

2MB-F1171-01-00

Unavailable

2

NUT, SPRING

90183-060A6-00

$5.49

3

BOLT

90109-068A5-00

$7.49

4

CAP

2MB-F143A-00-00

$1.81

5

GROMMET

90480-13029-00

$5.60

6

BRACKET, TAIL COVE

2MB-F475U-00-00

$20.99

7

BRACKET, TAIL COVE

2MB-F475V-00-00

$20.99

8

. HOLDER, LATCH

8M6-77175-00-00

Unavailable

9

BOLT,HEX. SOCKET BUTTON

90111-06106-00

$5.60

10

BOLT,HEX. SOCKET BUTTON

90111-06123-00

$3.66

11

. HOLDER, LATCH

8M6-77175-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06106-00

$5.60

13

NUT

2MB-F1296-00-00

Unavailable

14

CASE

2MB-K8365-00-00

Unavailable

15

COLLAR

90387-06M89-00

Unavailable

16

BODY, LATCH 1

8V0-77171-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06123-00

$3.66
