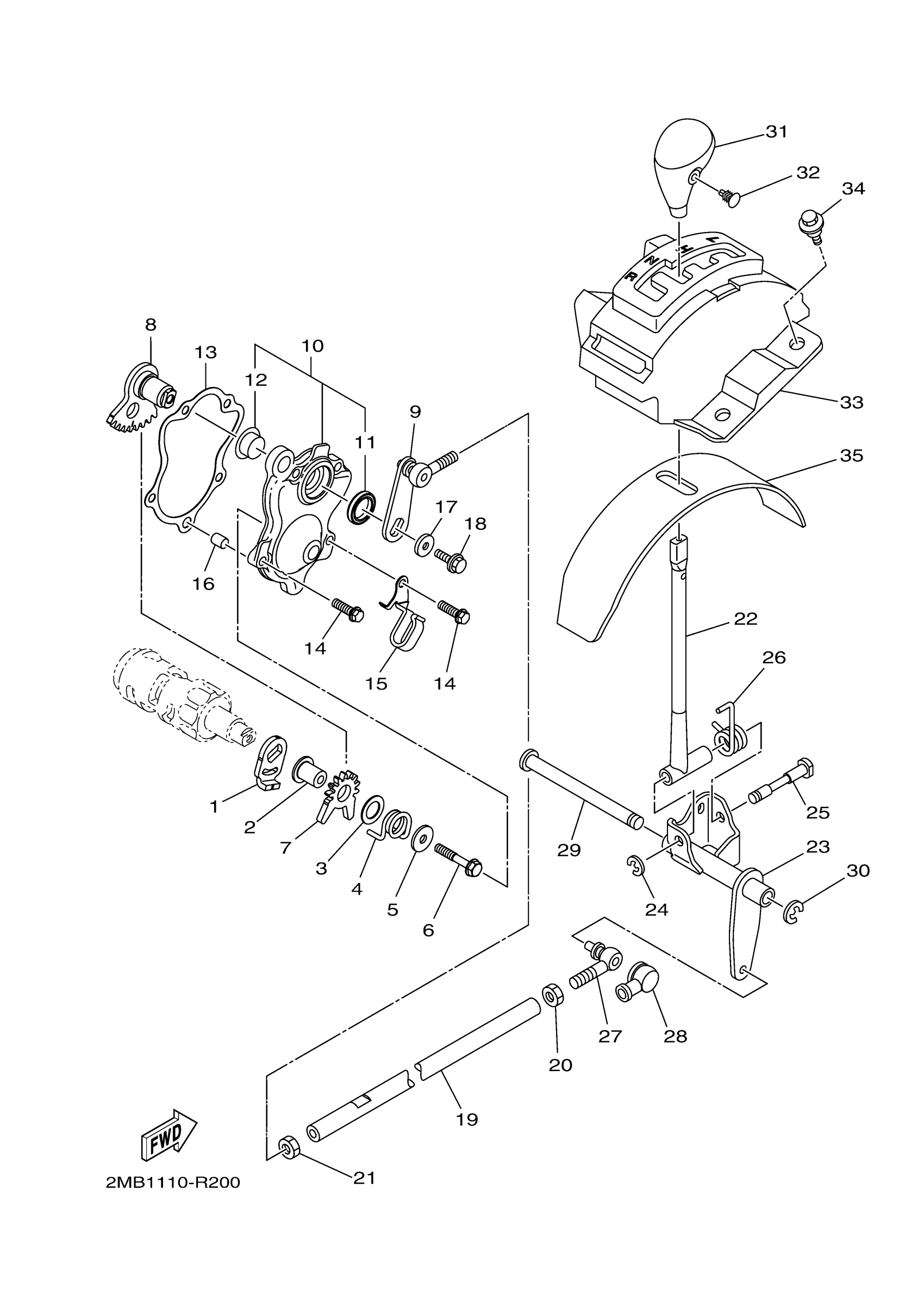

Yamaha YXE70WPXGL (WOLVERINE R-SPEC EPS) 2MB11 2016 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

2MB-E8198-00-00

$7.99

2

COLLAR, SHIFTER

2MB-E8413-00-00

Unavailable

3

WASHER 1

2MB-E8137-00-00

Unavailable

4

SPRING

2MB-E8183-00-00

Unavailable

5

WASHER 2

2MB-E8138-00-00

$3.07

6

BOLT 2

2MB-E5482-20-00

Unavailable

7

LEVER

2MB-E8191-00-00

Unavailable

8

SHIFT SHAFT COMP.

2MB-E8103-00-00

$86.99

9

SHIFT GUIDE COMP.

2MB-18104-00-00

$44.99

10

SHIFTER BRKT. ASSY

2MB-E8380-00-00

Unavailable

11

OIL SEAL 2

2MB-E76G3-00-00

$11.99

12

SPACER 2

3B4-18582-00-00

Unavailable

13

GASKET

2MB-E8146-00-00

$2.13

14

BOLT 1

2MB-E5481-10-00

$1.04

15

CLAMP 2

2MB-E261G-00-00

Unavailable

16

PIN, DOWEL

2MB-E8438-00-00

Unavailable

17

WASHER, PLATE

90201-06036-00

Unavailable

18

BOLT, FLANGE

90105-06175-00

Unavailable

19

ROD, SHIFT

2MB-18115-00-00

Unavailable

20

NUT(1KT)

90170-08358-00

Unavailable

21

. NUT

95380-08700-00

Unavailable

22

LEVER COMP. 1

1XD-E8190-10-00

Unavailable

23

ARM, SHIFT 2

2MB-E8169-00-00

Unavailable

24

CIRCLIP(53L)

99001-06600-00

Unavailable

25

SHAFT, SHIFT

1HP-E8125-00-00

Unavailable

26

SPRING, RETURN

1HP-E8196-00-00

Unavailable

27

JOINT 2

1KT-18157-00-00

Unavailable

28

COVER, DUST

2H9-18154-00-00

Unavailable

29

PIN, SHIFT

2MB-18173-00-00

Unavailable

30

CIRCLIP(2R6)

99001-08600-00

Unavailable

31

KNOB, SHIFT LEVER

28P-18174-00-00

Unavailable

32

RIVET(81E)

90269-05055-00

Unavailable

33

GUIDE, SHIFT

1XD-E8172-00-00

Unavailable

34

BOLT

90109-06172-00

Unavailable

35

COVER, DUST

1HP-E8154-01-00

Unavailable
