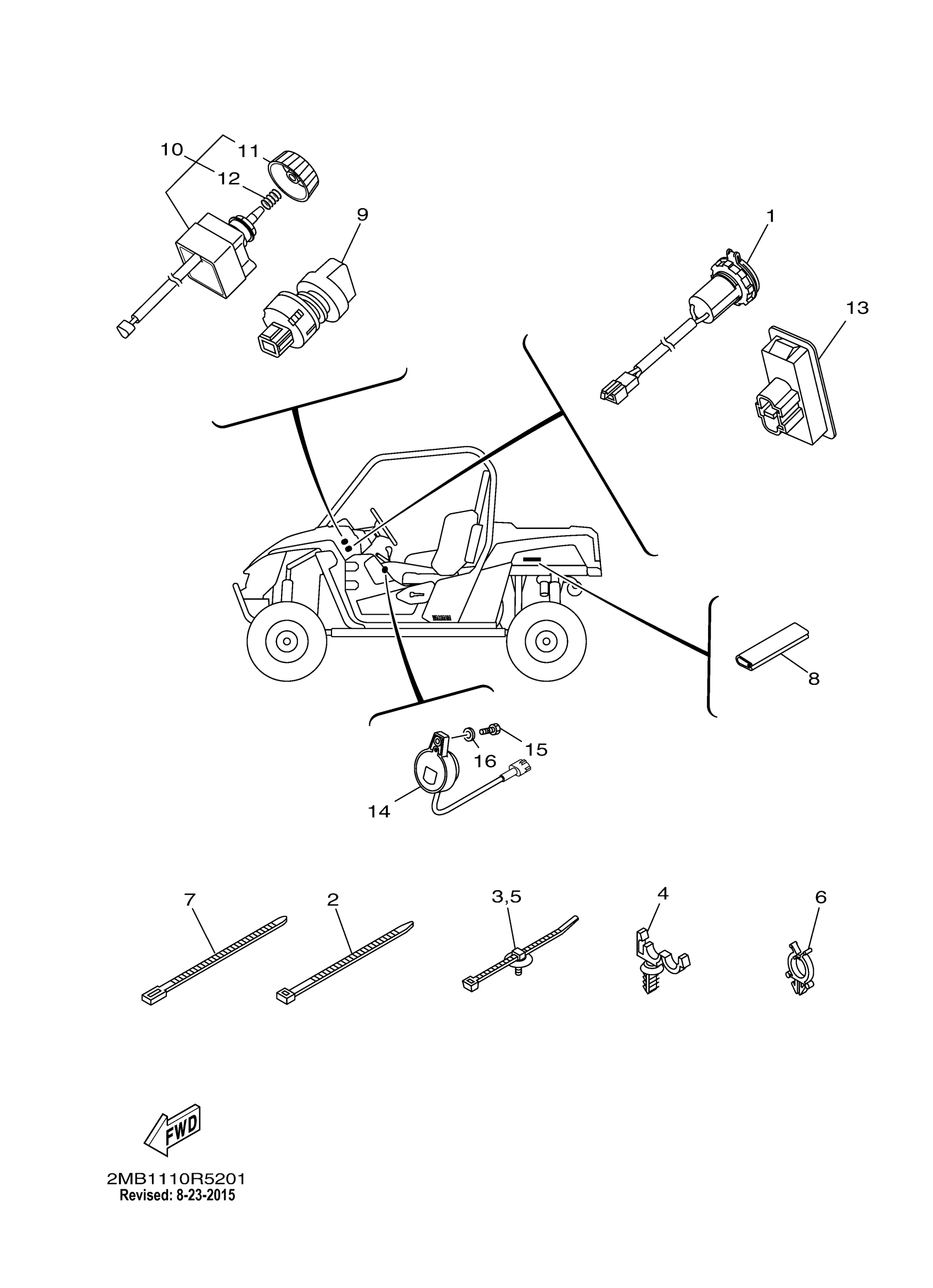

Yamaha YXE70WPXGL (WOLVERINE R-SPEC EPS) 2MB11 2016 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL COMP.

1HP-H254B-10-00

$18.99

2

CLAMP

90464-48800-00

Unavailable

3

CLAMP

5B4-F1338-00-00

$3.33

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

1NS-F1338-00-00

$3.33

6

CLAMP

90464-25826-00

Unavailable

7

CLAMP(3XV)

90464-29179-00

$1.64

8

MOLE 3

4XY-28347-00-00

Unavailable

9

SWITCH, LAMP

5UG-H2526-00-00

$53.99

10

SWITCH, SELECT

1XD-87280-01-00

Unavailable

11

KNOB, SELECT SWITCH

1XD-87285-00-00

$12.99

12

SPRING

1XD-87288-00-00

$1.35

13

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

14

BUZZER

2MB-83383-00-00

$68.99

15

BOLT(3JK)

97027-05020-00

$3.29

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable
