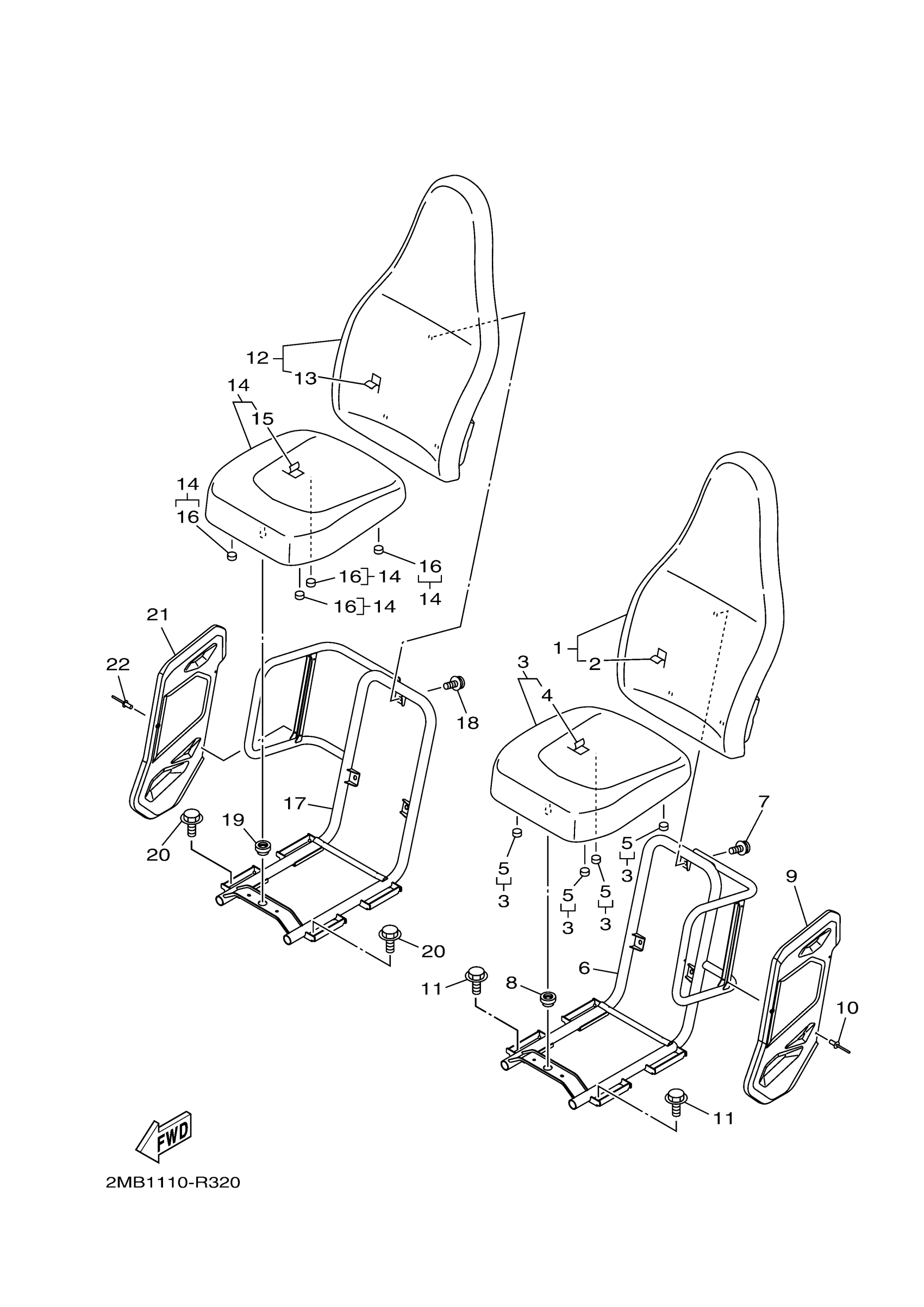

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

2MB-F4790-20-00

Unavailable

2

COVER, SEAT

2MB-F4711-21-00

Unavailable

3

. SEAT ASSY

1XD-F4700-20-00

$201.18

4

. COVER, SEAT

1XD-F4731-20-00

$90.58

5

DAMPER, SEAT

1XD-F4723-00-00

$1.47

6

FRAME, SEAT 1

1XD-F473C-01-00

$294.55

7

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

8

GROMMET

1XD-F4742-00-00

$2.96

9

COVER,2

1XD-F475X-01-00

$31.03

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

11

BOLT, FLANGE

95817-08012-00

$3.71

12

SEAT BACK ASSY

2MB-F4790-20-00

Unavailable

13

COVER, SEAT

2MB-F4711-21-00

Unavailable

14

. SEAT ASSY

1XD-F4700-20-00

$201.18

15

. COVER, SEAT

1XD-F4731-20-00

$90.58

16

DAMPER, SEAT

1XD-F4723-00-00

$1.47

17

FRAME, SEAT 2

1XD-F473D-01-00

$253.64

18

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

19

GROMMET

1XD-F4742-00-00

$2.96

20

BOLT, FLANGE

95817-08012-00

$3.71

21

COVER,2

1XD-F475X-01-00

$31.03

22

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11
