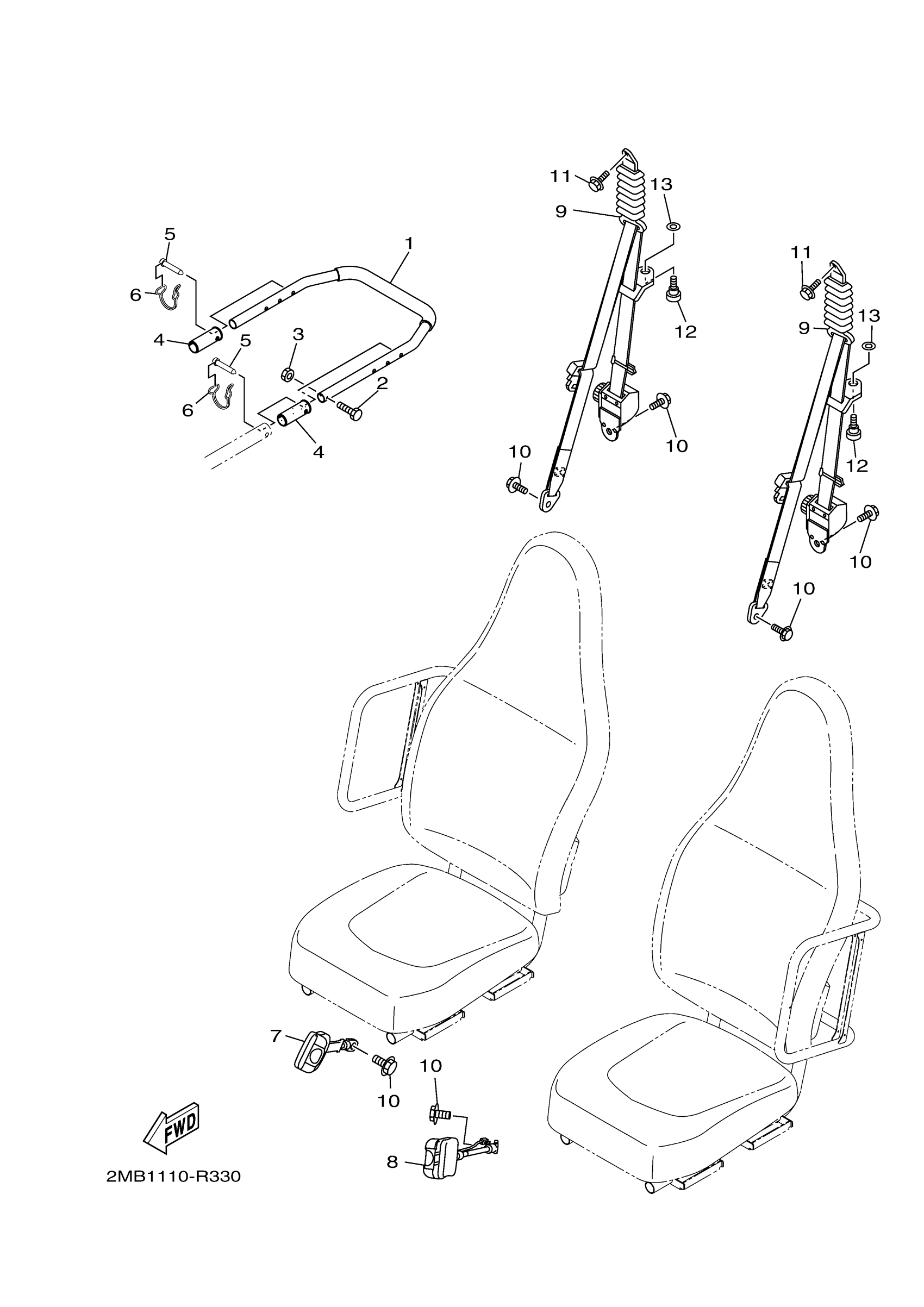

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 SEAT 2 Diagram

#

Description
Price

1

ASSIST GRIP ASSY.,

2MB-F470J-00-00

$83.91

2

BOLT

90101-06824-00

$1.13

3

NUT, SELF-LOCKING

95617-06100-00

$2.17

4

BUSH, CAP

1XD-F467K-00-00

$2.21

5

PIN, LOCK

1XD-F5926-00-00

$2.44

6

SNAP, PIN

1XD-F311F-00-00

$6.29

7

FR. BELT RECEIVER

2PG-F470R-00-00

$38.65

8

FR. BELT RECEIVER

2PG-F470R-10-00

$88.58

9

FR. SEAT BELT ASSY

1XD-F470L-00-00

$166.73

10

BOLT, FLANGE

95812-12020-00

$6.15

11

BOLT,HEX. SOCKET B

90111-12002-00

$3.24

12

BOLT, SPECIAL

16B-F3394-01-00

$2.45

13

WASHER, PLATE

90201-11801-00

$1.15
