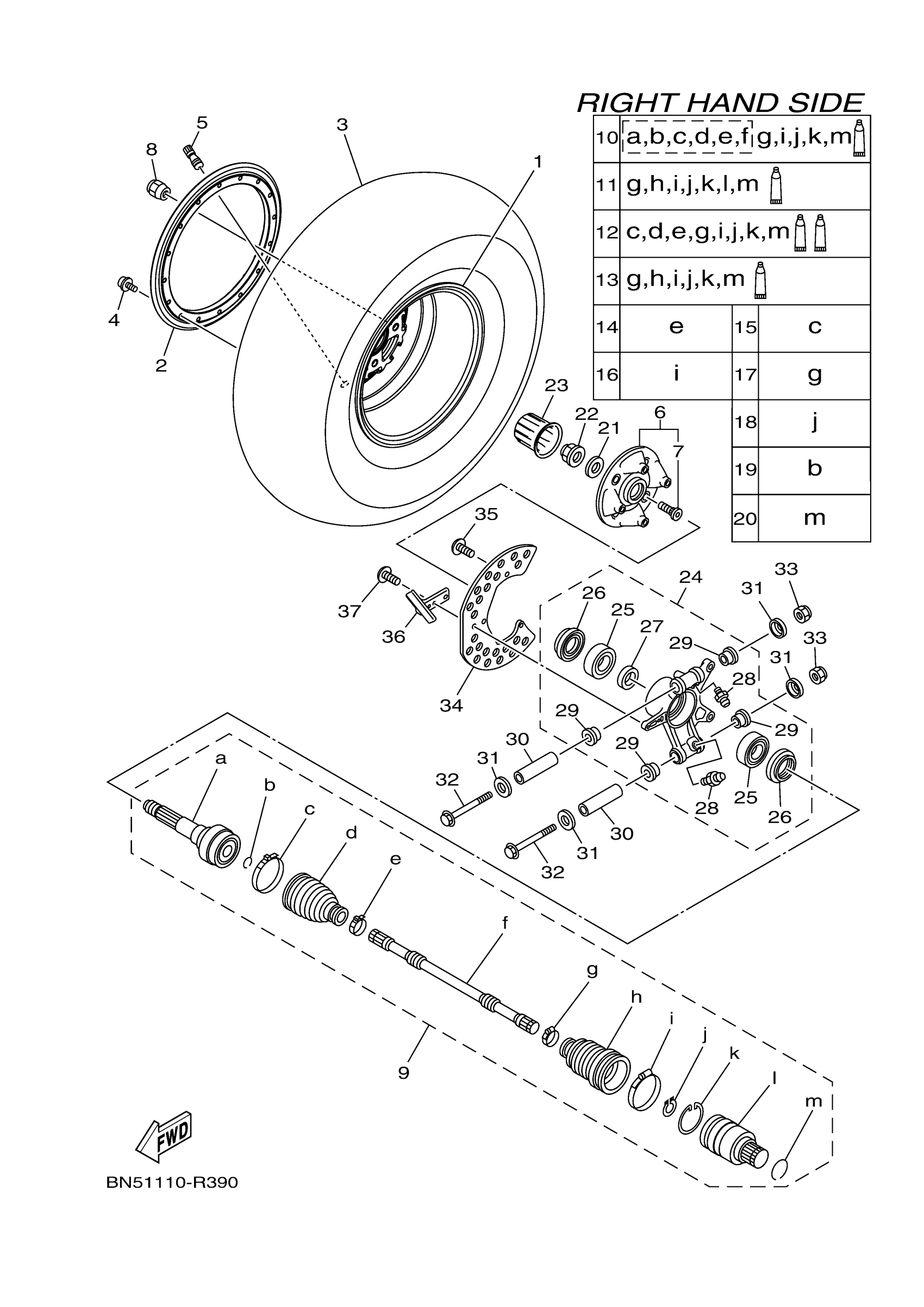

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 REAR WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, REAR

BN5-F5307-10-00

$181.82

2

NUT, CAP

BN5-F4658-01-00

$135.09

3

TIRE (26X10.00-12 MU10 4PR TL)

94110-12818-00

$374.20

4

BOLT, FLANGE

90105-068C3-00

$1.29

5

VALVE, RIM

93900-00812-00

Unavailable

6

HUB ASSY 2

2MB-F510D-04-00

Unavailable

7

BOLT, SERRATION

90114-12002-00

$2.80

8

NUT, CROWN

90176-12800-00

$2.98

9

REAR DRIVE SHAFT A

1XD-F531H-01-00

$224.19

10

BALL JOINT SET

1XD-F530T-00-00

$209.74

11

. DOUBLE OFF SET JOINT

1XD-F530V-00-00

$141.35

12

BOOT SET (BALL JOI

1XD-F530X-00-00

$147.70

13

BOOT SET(DOUBLE OF

1XD-F530Y-00-00

$132.95

14

BOOT BAND(DOUBLE O

1XD-F511H-00-00

$15.17

15

. BOOT BAND (BALL JOINT)

1XD-F511G-00-00

$20.65

16

. BOOT BAND (SMALL)

1XD-F512G-00-00

$20.86

17

. BOOT BAND (SMALL)

1XD-F510U-00-00

$20.86

18

. SNAP RING

1XD-F512J-00-00

$12.94

19

CIRCLIP

5UG-F512H-00-00

Unavailable

20

. CLIP, SPRING

1XD-F536E-00-00

$17.74

21

WASHER, PLATE

90201-25023-00

Unavailable

22

NUT

90179-24006-00

Unavailable

23

CAP, WHEEL

2MB-F512A-00-00

Unavailable

24

REAR KNUCKLE ASSY.

1XD-F532F-21-00

Unavailable

25

BEARING

93306-20725-00

Unavailable

26

OIL SEAL

93106-50002-00

Unavailable

27

COLLAR

90387-35007-00

Unavailable

28

NIPPLE, GREASE

93700-06M03-00

$7.40

29

BUSH, SOLID

90381-18003-00

Unavailable

30

COLLAR

90387-12N54-00

Unavailable

31

COVER, THRUST 1

1XD-23517-01-00

Unavailable

32

BOLT, FLANGE

90105-12089-00

Unavailable

33

NUT, SELF-LOCKING

90185-12010-00

Unavailable

34

RING, WHEEL 1

1XD-F514A-01-00

Unavailable

35

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

36

PLATE, GUIDE 2

1XD-F2342-00-00

Unavailable

37

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
