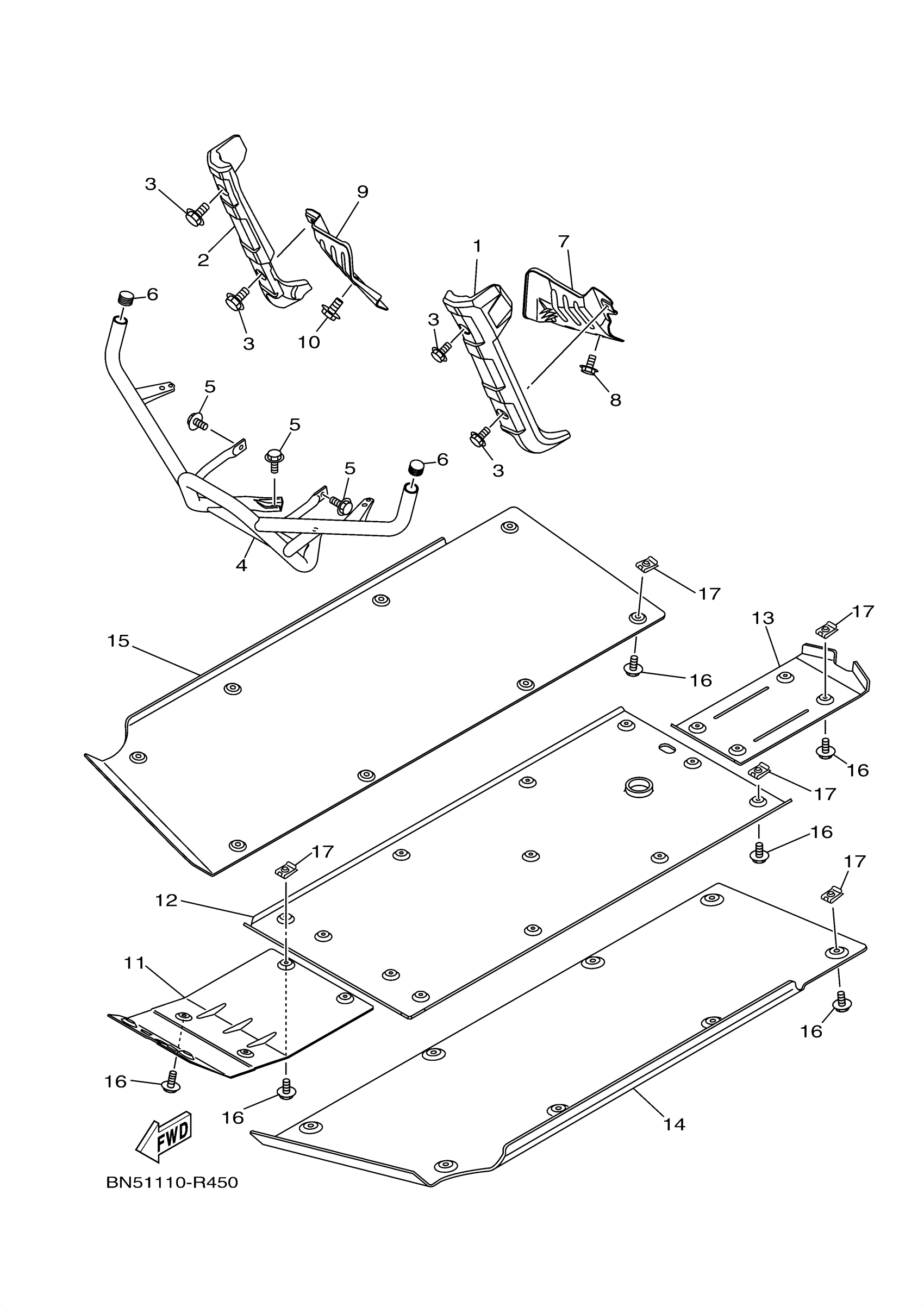

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 GUARD Diagram

#

Description
Price

1

EXTENSION, FRONT F

2MB-K8185-00-00

Unavailable

2

EXTENSION, FRONT F

2MB-K8186-00-00

$18.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

BAR, CARRY FRONT

2MB-F845N-10-00

Unavailable

5

BOLT, FLANGE

95812-10016-00

$9.49

6

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$6.99

7

GUARD COMP.

2MB-F840K-00-00

Unavailable

8

BOLT

90109-06202-00

$7.49

9

GUARD COMP. 2

2MB-F840M-00-00

$8.99

10

BOLT

90109-06202-00

$7.49

11

COVER 1

2MB-F842M-00-00

$147.99

12

COVER 2

2MB-F842N-01-00

Unavailable

13

COVER 3

2MB-F843J-00-00

Unavailable

14

COVER 4

2MB-F844J-00-00

Unavailable

15

COVER 5

2MB-F842A-00-00

Unavailable

16

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

17

NUT, SPRING(JR2)

90183-06811-00

Unavailable
