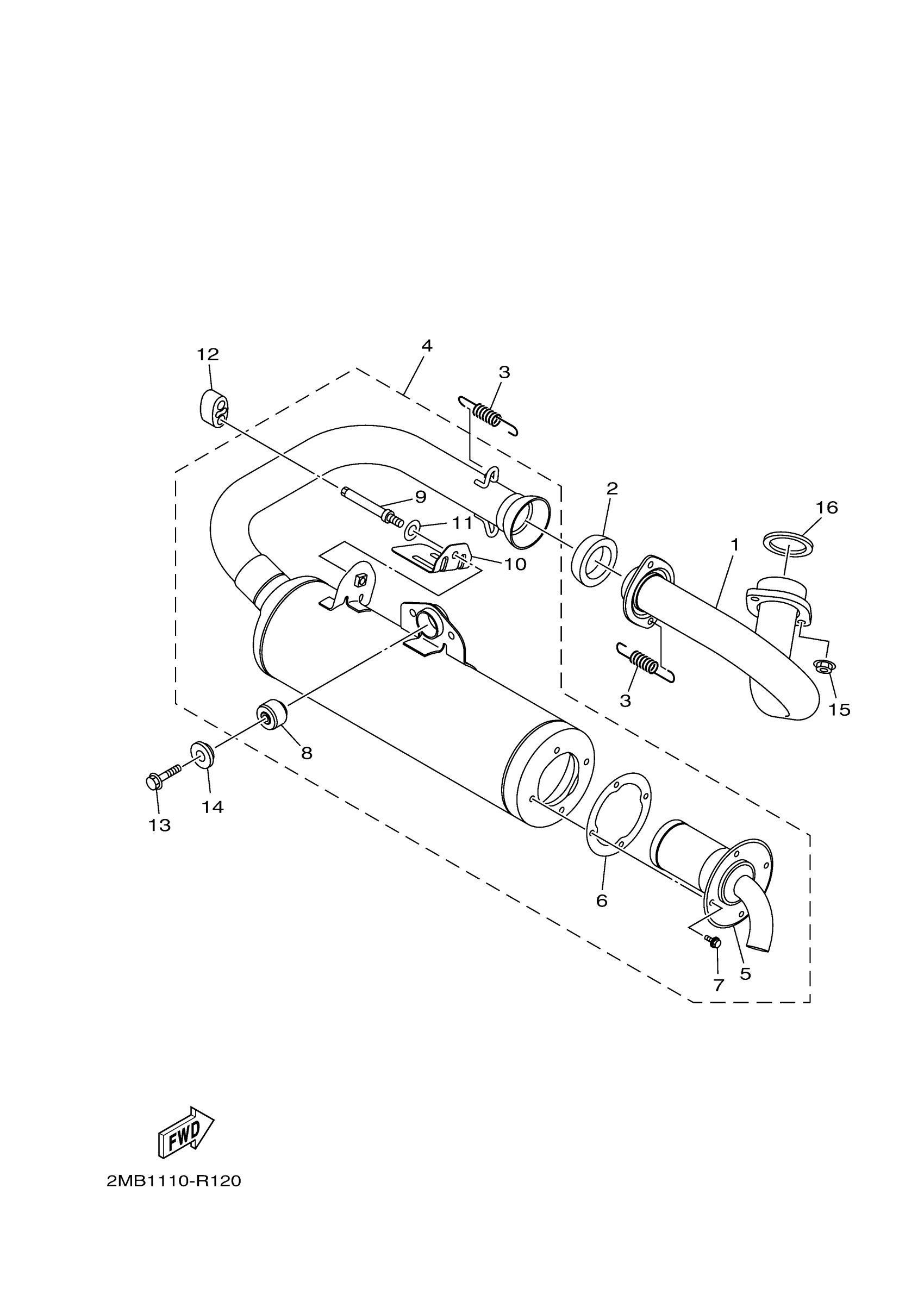

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2MB-E4611-00-00

Unavailable

2

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

3

SPRING, TENSION

90506-26012-00

$11.25

4

MUFFLER ASY L

2MB-E4710-01-00

Unavailable

5

SPARK ARRESTER ASS

2BG-E4780-00-00

$56.31

6

GASKET, SILENCER

2MB-E4755-00-00

Unavailable

7

BOLT, FLANGE

95022-06012-00

$2.80

8

DAMPER,FOOTREST

1HP-F7414-00-00

$18.79

9

SHAFT

1XD-E4745-00-00

$23.50

10

. PLATE, MUFFLER

2MB-E4793-00-00

$11.05

11

. WASHER

92902-08200-00

$0.22

12

DAMPER, MUFFLER

2MB-14737-00-00

$7.41

13

BOLT, FLANGE

95817-08040-00

$5.04

14

WASHER

3B4-14759-01-00

$14.08

15

NUT,FLANGE(J10)

95702-08500-00

$0.79

16

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable
