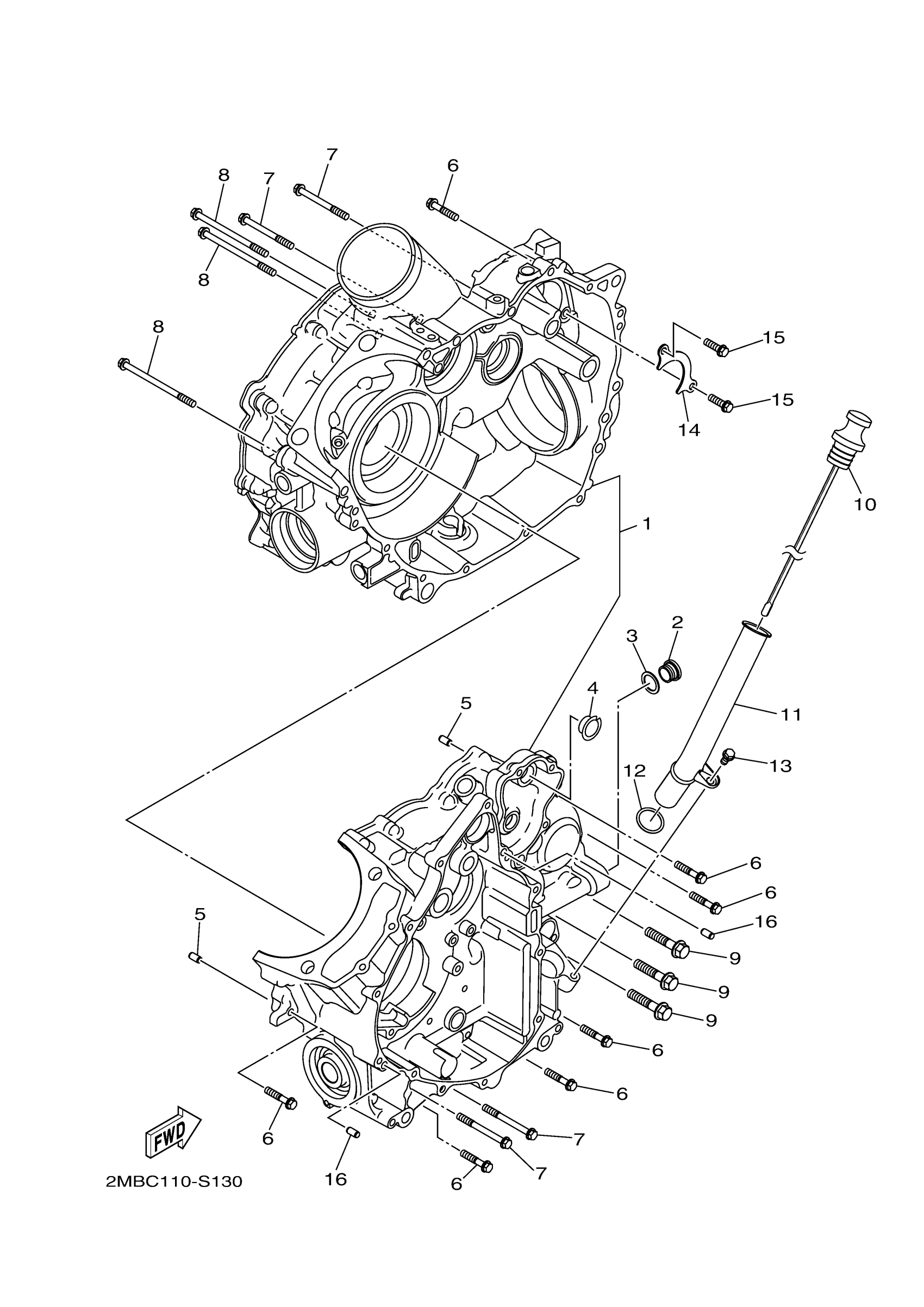

Yamaha YXE70WPSHS (WOLVERINE R-SPEC EPS SPECIAL EDITION) BN55 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2MB-E5100-01-00

Unavailable

2

PLUG, BLIND 1

2MB-E5167-00-00

$5.49

3

GASKET, BLIND PLUG

2MB-E5175-00-00

$0.94

4

SPACER, CAM SHAFT

3B4-18581-00-00

$39.99

5

PIN, DOWEL

2MB-E5184-00-00

$1.98

6

BOLT 1

2MB-E5481-50-00

Unavailable

7

BOLT 1

2MB-E5481-C0-00

$1.98

8

BOLT 1

2MB-E5481-90-00

$3.90

9

BOLT

2MB-E2623-00-00

Unavailable

10

PLUG, OIL LEVEL

2MB-E5362-01-00

$33.99

11

PIPE, OIL

2MB-E5112-00-00

Unavailable

12

O-RING

2MB-E2439-00-00

$4.84

13

BOLT 1

2MB-E5481-60-00

$1.40

14

PLATE, BEARING COV

2MB-E5388-00-00

$6.99

15

BOLT 1

2MB-E5481-10-00

$1.04

16

PIN, DOWEL

2MB-E5184-00-00

$1.98
