- YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016
TRANSMISSION

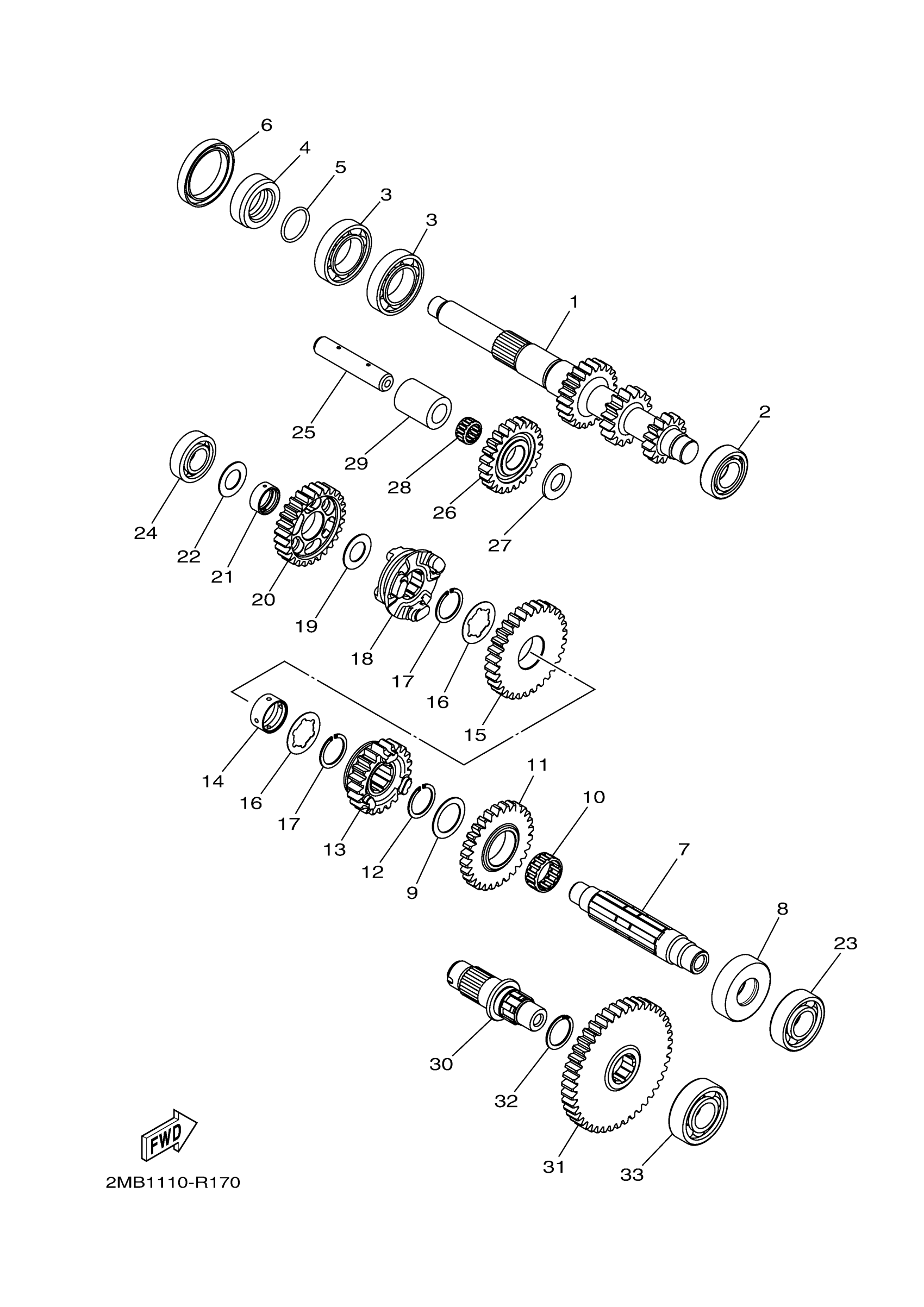

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 TRANSMISSION Diagram
#
1
SHAFT, SECONDARY
2MB-E7681-00-00
Unavailable
2
BEARING 1
2MB-E7156-00-00
$28.99
3
BEARING 2
2MB-E7166-00-00
$42.99
4
COLLAR 1
2MB-E7158-00-00
Unavailable
5
O-RING
2MB-E76F5-00-00
$3.28
6
OIL SEAL
2MB-E76F3-00-00
$17.49
7
AXLE, DRIVE
2MB-E7421-00-00
$137.99
8
COLLAR 2
2MB-E7168-00-00
$28.99
9
WASHER, GEAR HOLD
2MB-E7116-00-00
Unavailable
10
BEARING 1
2MB-E1428-00-00
$33.99
11
GEAR, REVERSE WHEE
2MB-E7253-00-00
Unavailable
12
CIRCLIP (4L0)
93440-25084-00
$5.60
13
GEAR, MIDDLE DRIVE
2MB-E7582-00-00
Unavailable
14
COLLAR 1
2MB-E7258-00-00
$32.99
15
GEAR, LOW WHEEL
2MB-E7233-00-00
Unavailable
16
WASHER, GEAR HOLD
2MB-E7126-00-00
Unavailable
17
CIRCLIP (4L0)
93440-25084-00
$5.60
18
CLUTCH, DOG
2MB-E7285-00-00
Unavailable
19
WASHER, GEAR HOLD
2MB-E7136-00-00
Unavailable
20
GEAR, HIGH WHEEL
2MB-E7223-00-00
Unavailable
21
COLLAR 2
2MB-E7268-00-00
Unavailable
22
WASHER, GEAR HOLD
2MB-E7154-00-00
Unavailable
23
BEARING 2
2MB-E1429-00-00
Unavailable
24
BEARING
2MB-E142A-00-00
Unavailable
25
AXLE, IDLE
2MB-E7432-00-00
Unavailable
26
GEAR, REVERSE WHEE
2MB-E7243-00-00
Unavailable
27
WASHER,2
2MB-E7059-00-00
Unavailable
28
BEARING
93310-31576-00
Unavailable
29
COLLAR
2MB-E7278-00-00
Unavailable
30
SHAFT
2MB-E7523-00-00
Unavailable
31
GEAR, MIDDLE DRIVE
2MB-E7583-00-00
Unavailable
32
CIRCLIP (4L0)
93440-25084-00
$5.60
33
BEARING
2MB-E4814-00-00
Unavailable
