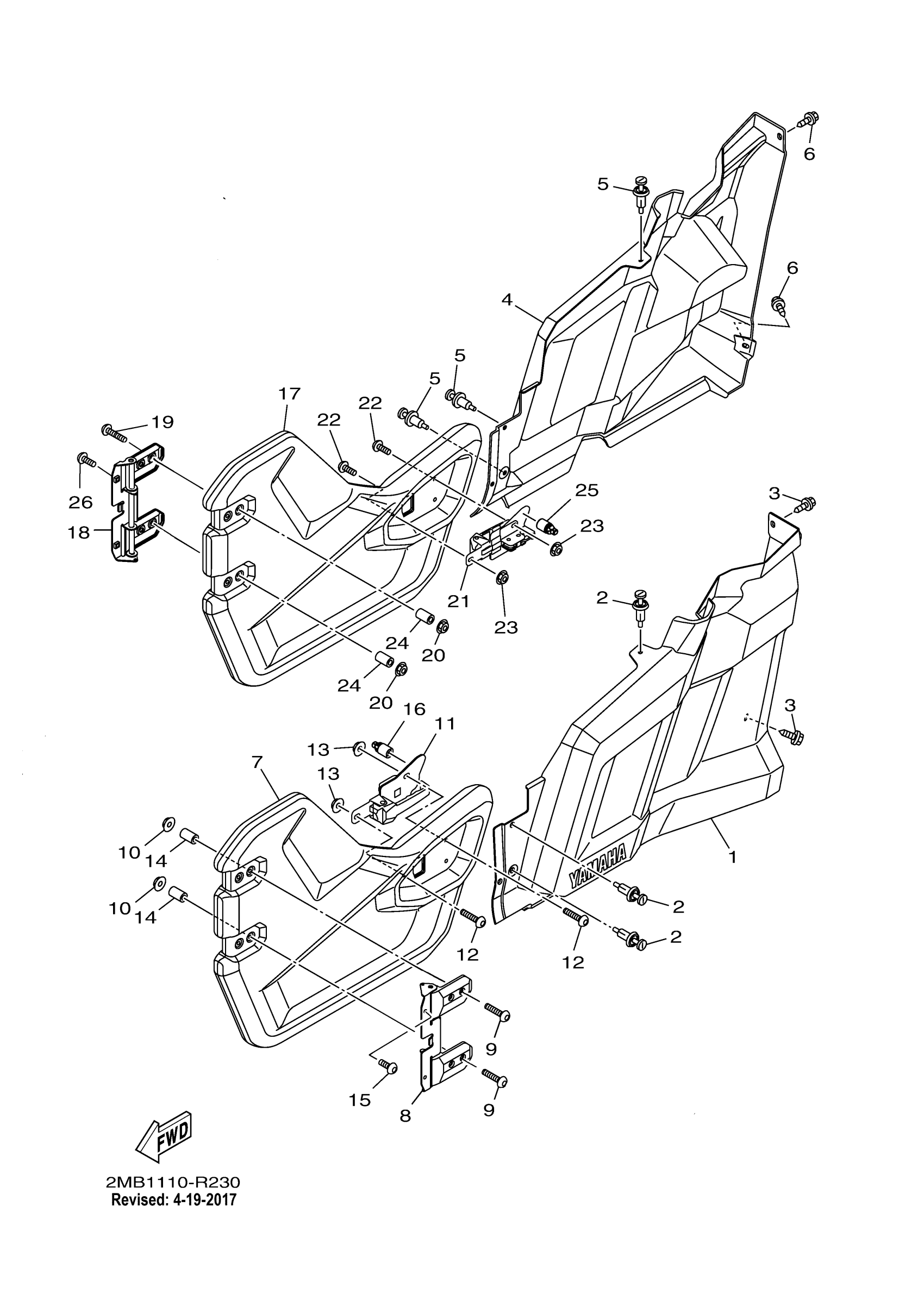

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

2MB-F1721-00-00

$217.99

2

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

COVER, SIDE 3

2MB-F1731-00-00

$217.99

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

PNL., DOOR FR. LH

1XD-K8557-11-00

$74.99

8

HINGE ASSY

1XD-F4772-00-00

$45.99

9

BOLT

90109-06897-00

$0.90

10

NUT, U FLANGE

95604-06200-00

$8.49

11

BODY, LATCH 1

2MB-K7171-00-00

$69.99

12

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

13

NUT, U FLANGE

95604-06200-00

$8.49

14

COLLAR

90387-06304-00

$2.60

15

BOLT 2

5B4-F1722-00-00

$6.99

16

PAD

2MB-F8378-00-00

Unavailable

17

PNL., DOOR FR. LH

1XD-K8557-11-00

$74.99

18

HINGE ASSY

1XD-F4772-00-00

$45.99

19

BOLT

90109-06897-00

$0.90

20

NUT, U FLANGE

95604-06200-00

$8.49

21

BODY, LATCH 2

2MB-K7172-00-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

23

NUT, U FLANGE

95604-06200-00

$8.49

24

COLLAR

90387-06304-00

$2.60

25

PAD

2MB-F8378-00-00

Unavailable

26

BOLT 2

5B4-F1722-00-00

$6.99
