Description

Price

1

SEAT BACK ASSY

2MB-F4790-20-00

Unavailable

2

COVER, SEAT

2MB-F4711-21-00

Unavailable

3

. SEAT ASSY

1XD-F4700-20-00

Unavailable

4

. COVER, SEAT

1XD-F4731-20-00

Unavailable

5

DAMPER, SEAT

1XD-F4723-00-00

$1.46

6

FRAME, SEAT 1

1XD-F473C-01-00

Unavailable

7

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

8

GROMMET

1XD-F4742-00-00

$3.69

9

COVER,2

1XD-F475X-01-00

$38.99

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

11

BOLT, FLANGE

95817-08012-00

$5.49

12

SEAT BACK ASSY

2MB-F4790-20-00

Unavailable

13

COVER, SEAT

2MB-F4711-21-00

Unavailable

14

. SEAT ASSY

1XD-F4700-20-00

Unavailable

15

. COVER, SEAT

1XD-F4731-20-00

Unavailable

16

DAMPER, SEAT

1XD-F4723-00-00

$1.46

17

FRAME, SEAT 2

1XD-F473D-01-00

Unavailable

18

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

19

GROMMET

1XD-F4742-00-00

$3.69

20

BOLT, FLANGE

95817-08012-00

$5.49

21

COVER,2

1XD-F475X-01-00

$38.99

22

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

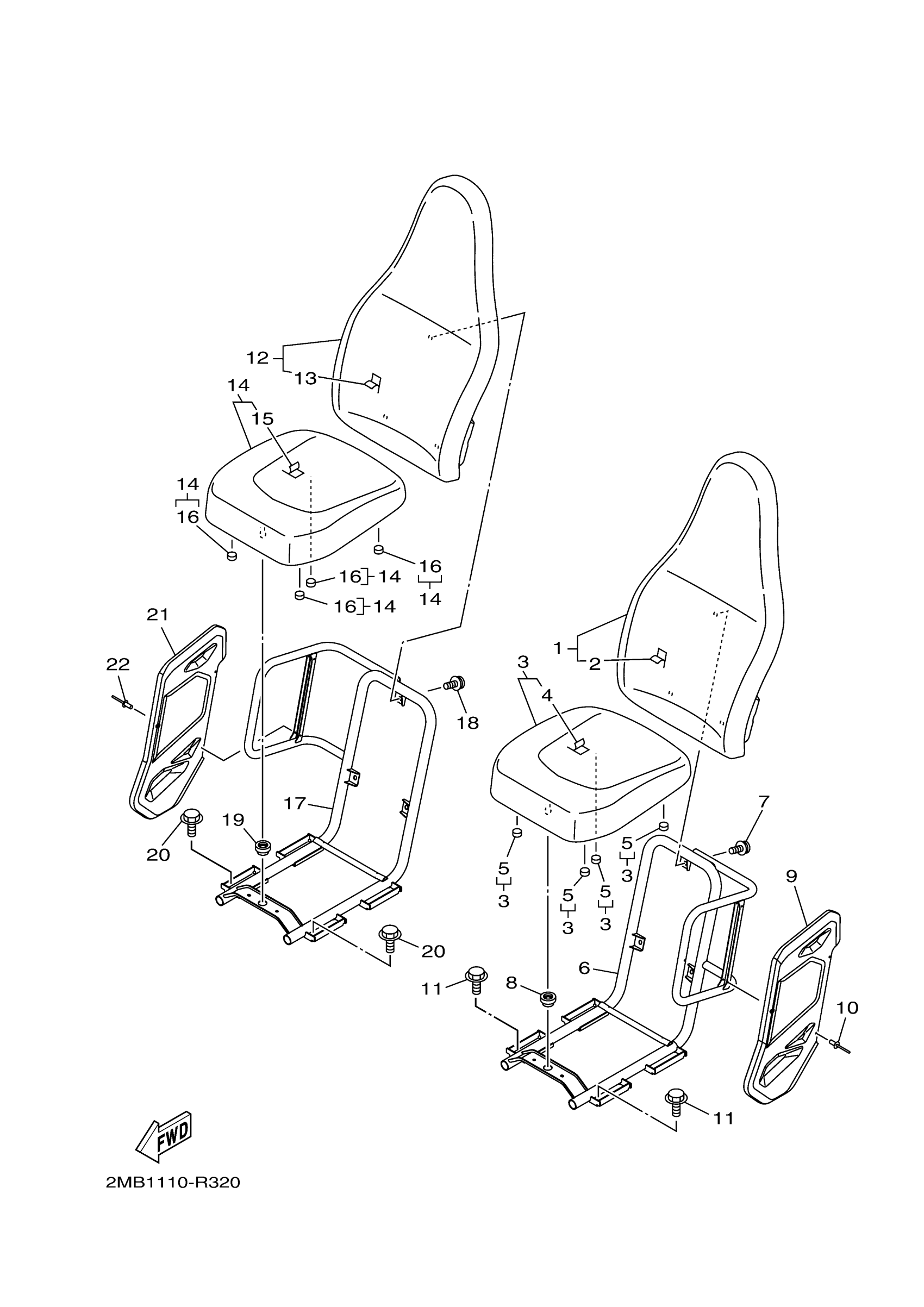

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 SEAT Diagram

SEAT BACK ASSY

COVER, SEAT

. SEAT ASSY

. COVER, SEAT

DAMPER, SEAT

FRAME, SEAT 1

BOLT, SEAT FITTING

GROMMET

COVER,2

RIVET, BLIND(EU0,USA)

BOLT, FLANGE

SEAT BACK ASSY

COVER, SEAT

. SEAT ASSY

. COVER, SEAT

DAMPER, SEAT

FRAME, SEAT 2

BOLT, SEAT FITTING

GROMMET

BOLT, FLANGE

COVER,2

RIVET, BLIND(EU0,USA)
