- YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016
REAR WHEEL

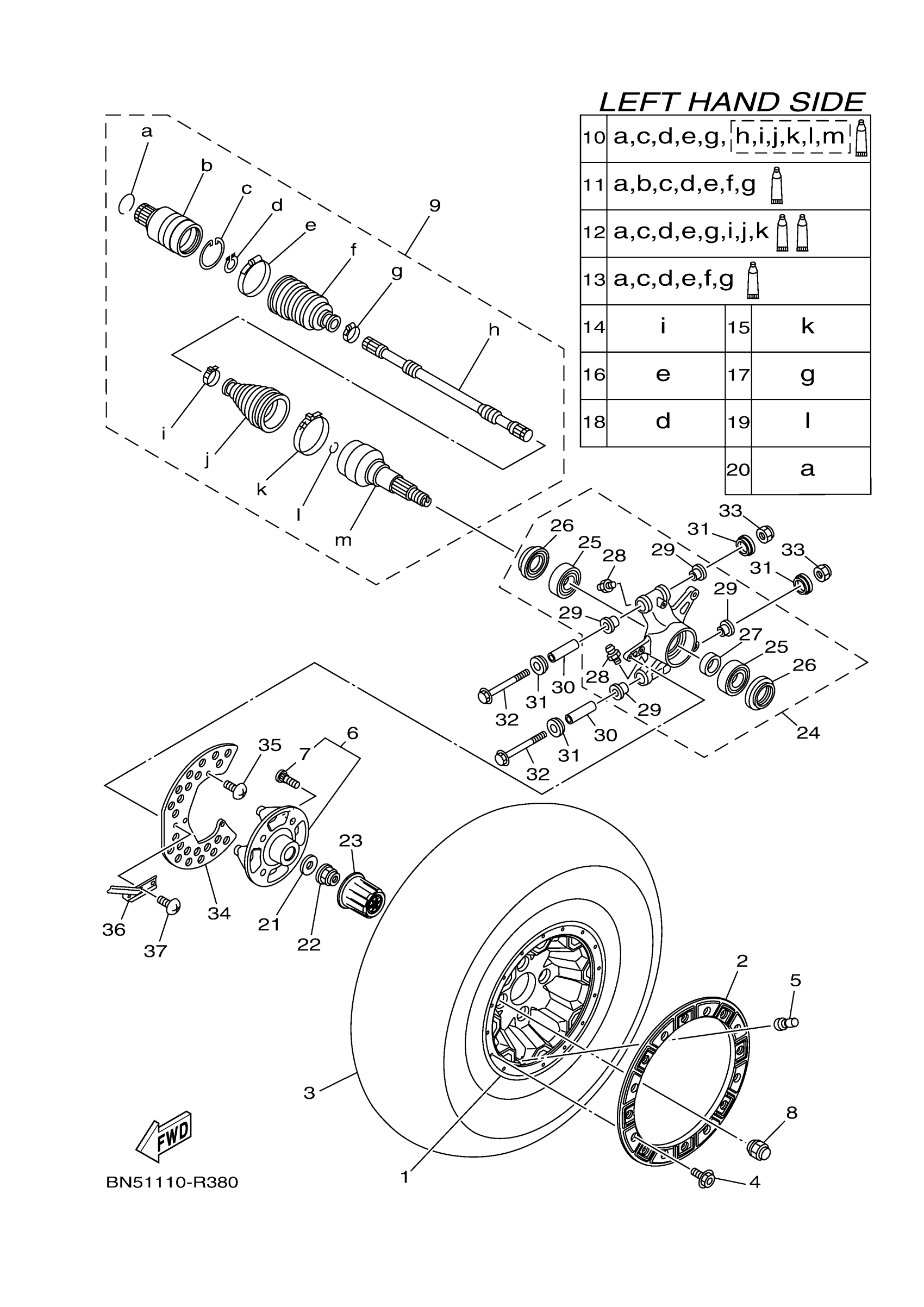

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 REAR WHEEL Diagram
#
1
CAST WHEEL, REAR
BN5-F5307-00-00
Unavailable
2
NUT, CAP
BN5-F4658-01-00
Unavailable
3
TIRE (26X10.00-12 MU10 4PR TL)
94110-12818-00
Unavailable
4
BOLT, FLANGE
90105-068C3-00
$2.92
5
VALVE, RIM
93900-00812-00
Unavailable
6
HUB ASSY 2
2MB-F510D-04-00
Unavailable
7
BOLT, SERRATION
90114-12002-00
$3.35
8
NUT, CROWN
90176-12800-00
$7.49
9
REAR DRIVE SHAFT A
1XD-F531H-01-00
$302.99
10
BALL JOINT SET
1XD-F530T-00-00
$238.99
11
. DOUBLE OFF SET JOINT
1XD-F530V-00-00
Unavailable
12
BOOT SET (BALL JOI
1XD-F530X-00-00
$163.99
13
BOOT SET(DOUBLE OF
1XD-F530Y-00-00
$151.99
14
BOOT BAND(DOUBLE O
1XD-F511H-00-00
$27.99
15
. BOOT BAND (BALL JOINT)
1XD-F511G-00-00
Unavailable
16
. BOOT BAND (SMALL)
1XD-F512G-00-00
Unavailable
17
. BOOT BAND (SMALL)
1XD-F510U-00-00
Unavailable
18
. SNAP RING
1XD-F512J-00-00
Unavailable
19
CIRCLIP
5UG-F512H-00-00
Unavailable
20
. CLIP, SPRING
1XD-F536E-00-00
Unavailable
21
WASHER, PLATE
90201-25023-00
Unavailable
22
NUT
90179-24006-00
Unavailable
23
CAP, WHEEL
2MB-F512A-00-00
Unavailable
24
REAR KNUCKLE ASSY
1XD-F530F-21-00
Unavailable
25
BEARING
93306-20725-00
Unavailable
26
OIL SEAL
93106-50002-00
Unavailable
27
COLLAR
90387-35007-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
BUSH, SOLID
90381-18003-00
Unavailable
30
COLLAR
90387-12N54-00
Unavailable
31
COVER, THRUST 1
1XD-23517-01-00
Unavailable
32
BOLT, FLANGE
90105-12089-00
Unavailable
33
NUT, SELF-LOCKING
90185-12010-00
Unavailable
34
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
35
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
36
PLATE, GUIDE 1
1XD-F2341-00-00
Unavailable
37
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
