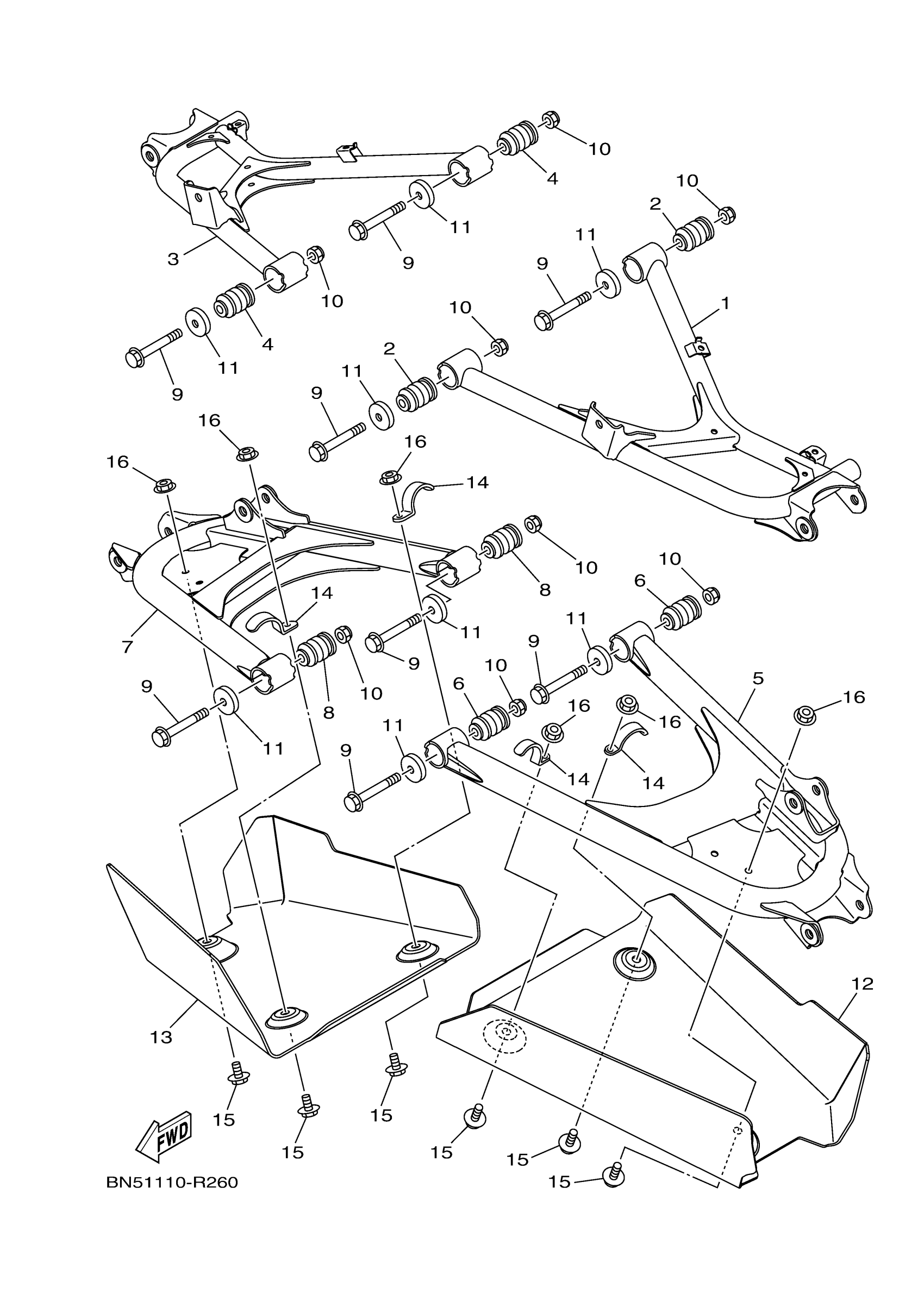

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

2MB-F2171-00-00

$48.88

2

BUSH

1HP-F3526-00-00

$20.42

3

ARM, REAR 2

2MB-F2172-00-00

$55.43

4

BUSH

1HP-F3526-00-00

$20.42

5

ARM 1

2MB-F217M-01-00

$48.84

6

BUSH

1HP-F3526-00-00

$20.42

7

ARM 2

2MB-F217N-01-00

$68.15

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10267-00

$7.23

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

WASHER

5KM-22149-10-00

$6.10

12

COVER 3

2MB-F117N-01-00

$93.34

13

COVER 4

2MB-F117R-01-00

$94.22

14

BRACKET, COVER

2MB-F139T-00-00

$2.95

15

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.18

16

NUT, U FLANGE

95604-06200-00

Unavailable
