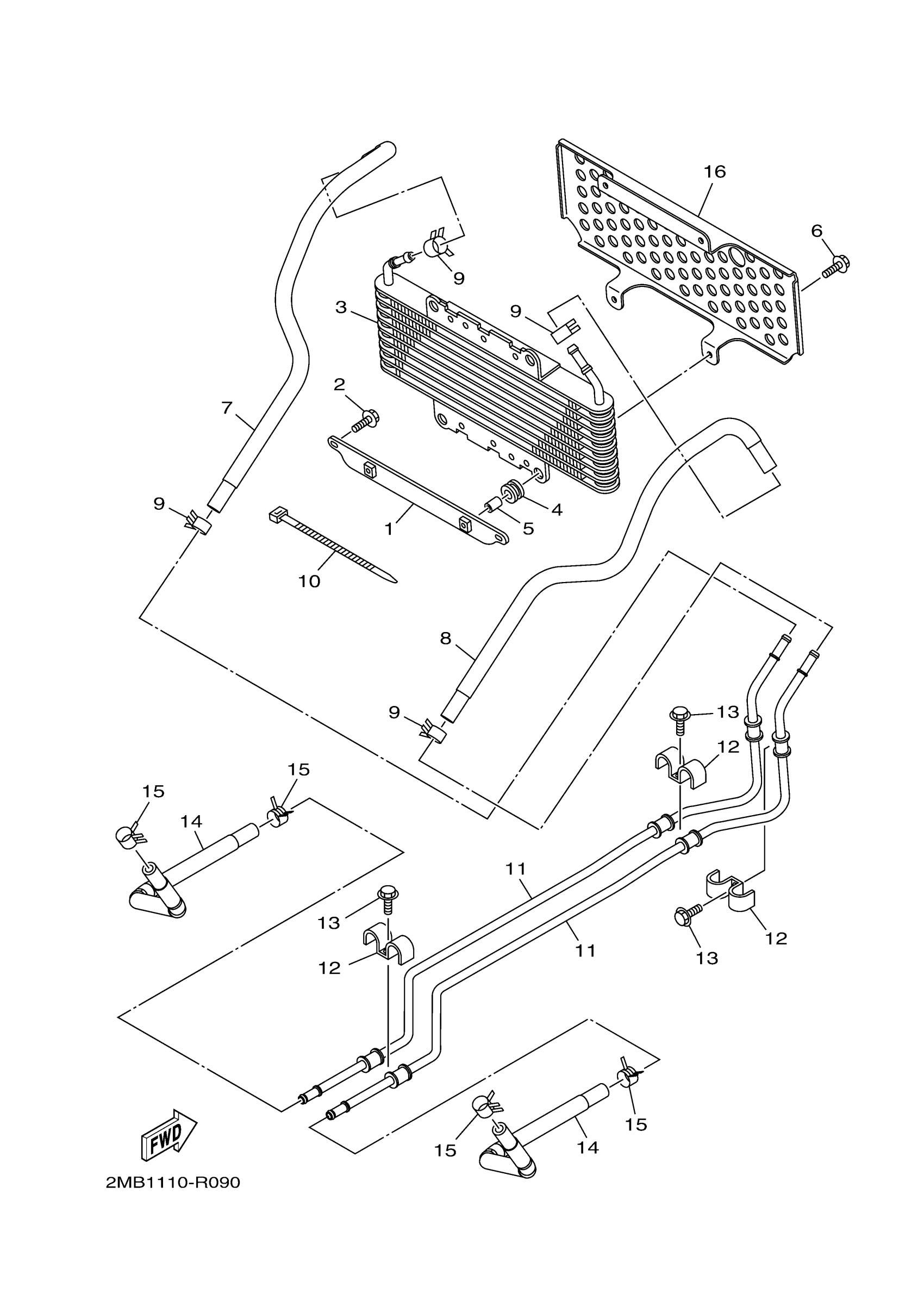

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 OIL PIPE Diagram

Description

Price

BRACKET, OIL COOLER

2MB-F1498-00-00

$4.95

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

ELEMENT, OIL COOLE

1NS-E3480-00-00

$338.82

GROMMET(2GH)

90480-12475-00

$6.22

COLLAR

90387-06113-00

$9.81

BOLT, FLANGE

95817-06025-00

Unavailable

HOSE 1

2MB-E243A-01-00

$21.44

HOSE 2

2MB-E2577-01-00

$20.68

CLIP

90467-150A0-00

$3.33

CLAMP

90464-48800-00

Unavailable

OIL PIPE COMP. 1

2MB-E3405-01-00

$28.21

CLAMP

90462-15800-00

Unavailable

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

HOSE 7

2MB-E2551-01-00

Unavailable

CLIP

90467-150A0-00

$3.33

BRACKET, AIR COOLER

2MB-E3691-00-00

$35.88
