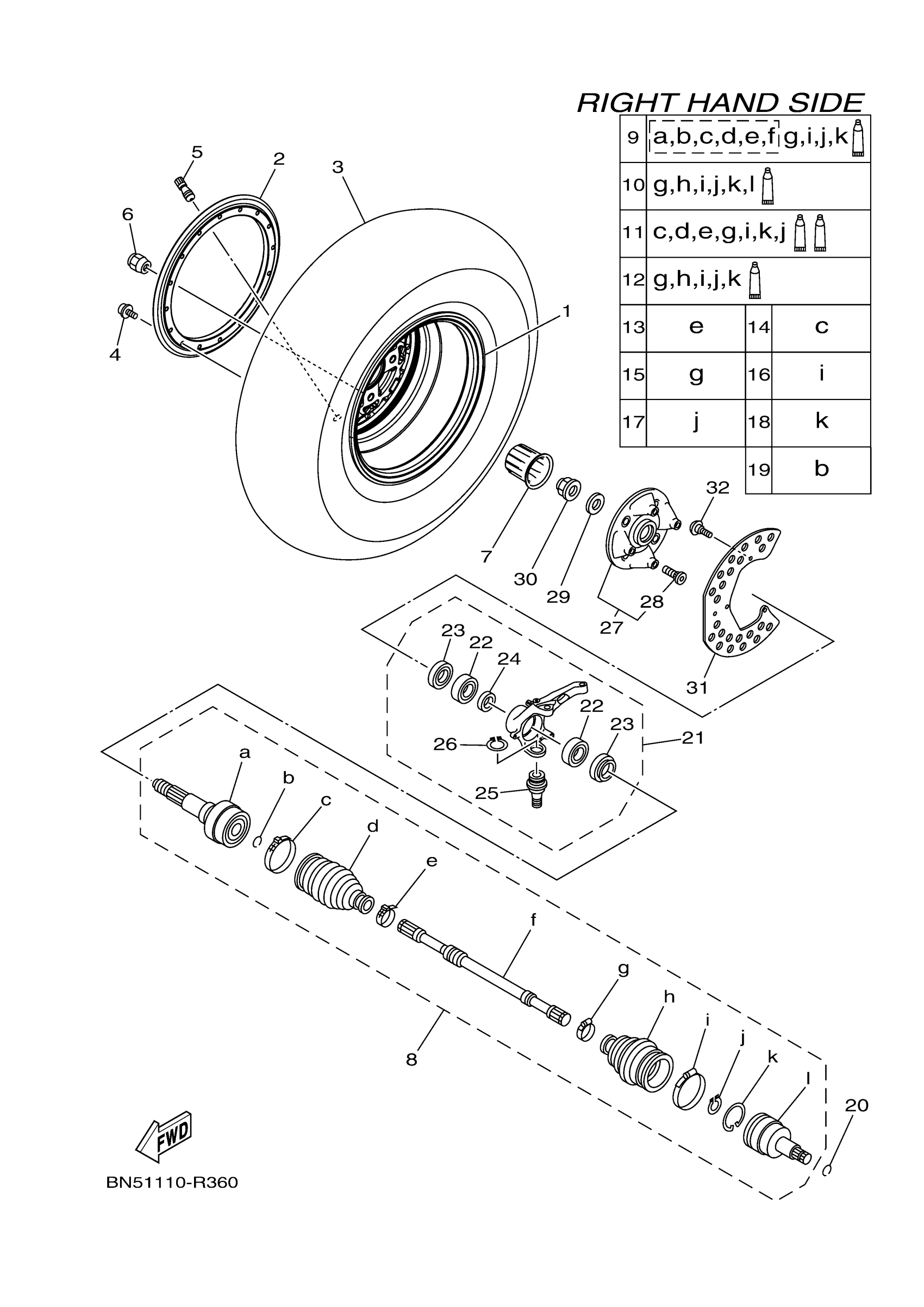

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 FRONT WHEEL 2 Diagram

#

Description
Price

1

WHEEL,CAST FRONT

BN5-F5168-01-00

Unavailable

2

NUT, CAP

BN5-F4658-01-00

$133.07

3

TIRE (26X8.00-12 MU09 2PR TL)

94108-12821-00

$315.00

4

BOLT, FLANGE

90105-068C3-00

$1.29

5

VALVE, RIM

93900-00812-00

Unavailable

6

NUT, CROWN

90176-12800-00

$2.94

7

CAP, WHEEL

2MB-F512A-00-00

$2.78

8

DRIVE SHAFT ASSY

1XD-F518F-01-00

$193.79

9

BALL JOINT SET

1XD-F530T-10-00

$196.83

10

. DOUBLE OFF SET JOINT

1XD-F530V-10-00

$139.57

11

BOOT SET (BALL JOI

1XD-F530X-10-00

$145.49

12

BOOT SET(DOUBLE OF

1XD-F530Y-10-00

$130.97

13

BOOT BAND(DOUBLE O

1XD-F511H-00-00

$14.94

14

. BOOT BAND (BALL JOINT)

1XD-F511G-00-00

$20.34

15

. BOOT BAND (SMALL)

5UG-F510U-00-00

$10.46

16

. BOOT BAND (SMALL)

1XD-F512G-10-00

$14.66

17

SNAP RING

3B4-2512J-00-00

Unavailable

18

CIRCLIP

3B4-25182-00-00

Unavailable

19

CIRCLIP

5UG-F512H-00-00

Unavailable

20

CIRCLIP(2HR)

93450-22119-00

Unavailable

21

STEERING KNUCKLE A

1XD-F3502-00-00

Unavailable

22

BEARING

93306-20725-00

Unavailable

23

OIL SEAL

93106-50002-00

Unavailable

24

COLLAR

90387-35007-00

Unavailable

25

BALL JOINT 2

1XD-23579-00-00

Unavailable

26

CIRCLIP

93410-32075-00

Unavailable

27

HUB ASSY 2

2MB-F510D-04-00

Unavailable

28

BOLT, SERRATION

90114-12002-00

Unavailable

29

WASHER, PLATE

90201-25023-00

Unavailable

30

NUT

90179-24006-00

Unavailable

31

RING, WHEEL 1

1XD-F514A-01-00

Unavailable

32

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
