- YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016
FRONT WHEEL

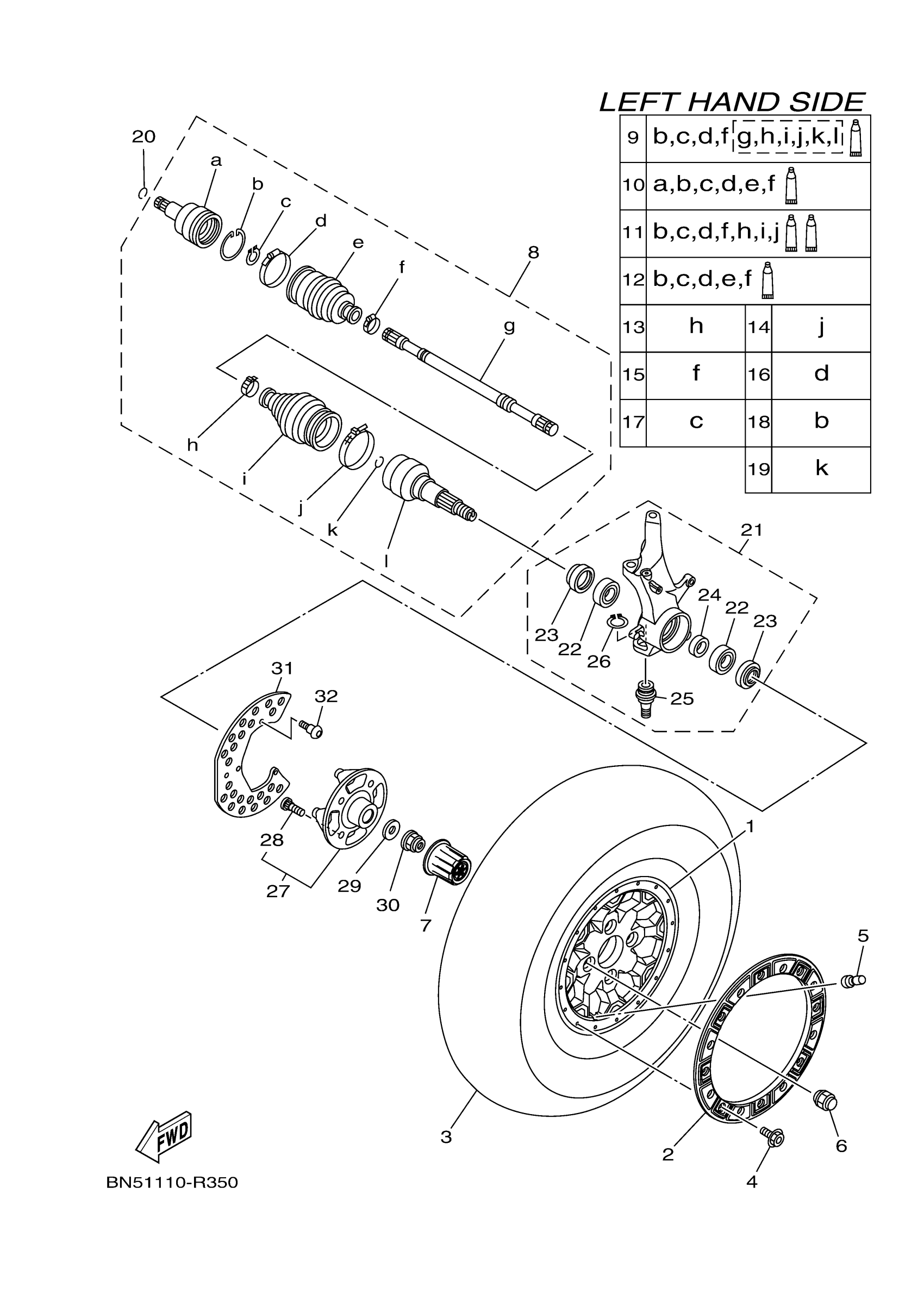

Yamaha YXE70WPSGS (WOLVERINE R-SPEC EPS SE) BN51 2016 FRONT WHEEL Diagram
#
1
WHEEL,CAST FRONT
BN5-F5168-01-00
Unavailable
2
NUT, CAP
BN5-F4658-01-00
Unavailable
3
TIRE (26X8.00-12 MU09 2PR TL)
94108-12821-00
Unavailable
4
BOLT, FLANGE
90105-068C3-00
$2.92
5
VALVE, RIM
93900-00812-00
Unavailable
6
NUT, CROWN
90176-12800-00
$7.49
7
CAP, WHEEL
2MB-F512A-00-00
$2.65
8
DRIVE SHAFT ASSY
1XD-F518F-01-00
$277.99
9
BALL JOINT SET
1XD-F530T-10-00
$238.99
10
. DOUBLE OFF SET JOINT
1XD-F530V-10-00
Unavailable
11
BOOT SET (BALL JOI
1XD-F530X-10-00
$163.99
12
BOOT SET(DOUBLE OF
1XD-F530Y-10-00
$151.99
13
BOOT BAND(DOUBLE O
1XD-F511H-00-00
$27.99
14
. BOOT BAND (BALL JOINT)
1XD-F511G-00-00
Unavailable
15
. BOOT BAND (SMALL)
5UG-F510U-00-00
Unavailable
16
. BOOT BAND (SMALL)
1XD-F512G-10-00
Unavailable
17
SNAP RING
3B4-2512J-00-00
Unavailable
18
CIRCLIP
3B4-25182-00-00
Unavailable
19
CIRCLIP
5UG-F512H-00-00
Unavailable
20
CIRCLIP(2HR)
93450-22119-00
Unavailable
21
STEERING KNUCKLE A
1XD-F3501-00-00
Unavailable
22
BEARING
93306-20725-00
Unavailable
23
OIL SEAL
93106-50002-00
Unavailable
24
COLLAR
90387-35007-00
Unavailable
25
BALL JOINT 2
1XD-23579-00-00
Unavailable
26
CIRCLIP
93410-32075-00
Unavailable
27
HUB ASSY 2
2MB-F510D-04-00
Unavailable
28
BOLT, SERRATION
90114-12002-00
Unavailable
29
WASHER, PLATE
90201-25023-00
Unavailable
30
NUT
90179-24006-00
Unavailable
31
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
32
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
