- YXE70WPHJH (WOLVERINE R-SPEC HUNTER) B3D4 2018
REAR WHEEL 2

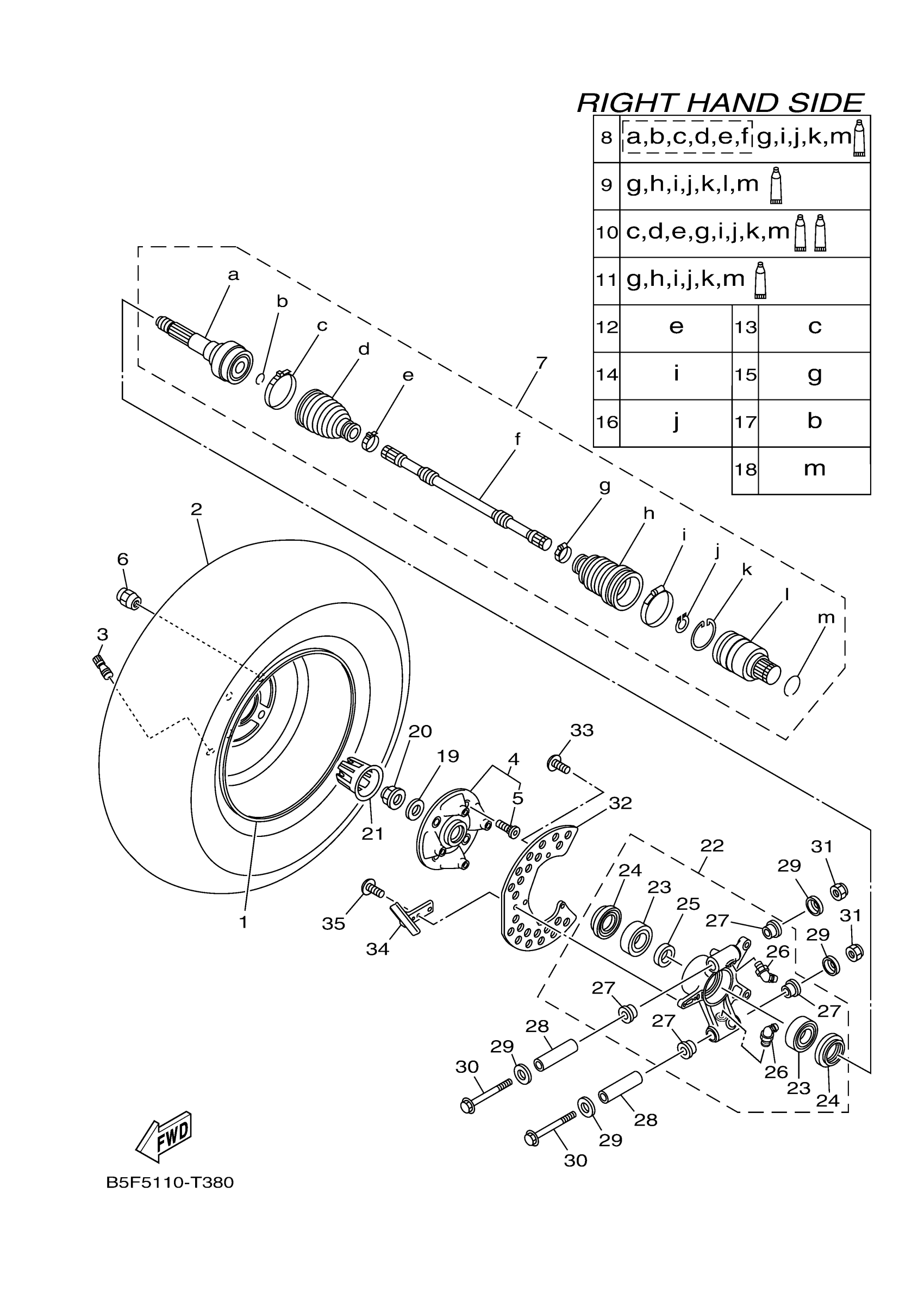

Yamaha YXE70WPHJH (WOLVERINE R-SPEC HUNTER) B3D4 2018 REAR WHEEL 2 Diagram
#
1
CAST WHEEL, REAR
1XP-F5307-00-00
$240.99
2
TIRE (26X10.00-12 MU10 4PR TL)
94110-12818-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB ASSY 2
2MB-F510D-04-00
Unavailable
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12800-00
$7.49
7
REAR DRIVE SHAFT A
1XD-F531H-01-00
$302.99
8
BALL JOINT SET
1XD-F530T-00-00
$238.99
9
. DOUBLE OFF SET JOINT
1XD-F530V-00-00
Unavailable
10
BOOT SET (BALL JOI
1XD-F530X-00-00
$163.99
11
BOOT SET(DOUBLE OF
1XD-F530Y-00-00
$151.99
12
BOOT BAND(DOUBLE O
1XD-F511H-00-00
$27.99
13
. BOOT BAND (BALL JOINT)
1XD-F511G-00-00
Unavailable
14
. BOOT BAND (SMALL)
1XD-F512G-00-00
Unavailable
15
. BOOT BAND (SMALL)
1XD-F510U-00-00
Unavailable
16
. SNAP RING
1XD-F512J-00-00
Unavailable
17
CIRCLIP
5UG-F512H-00-00
Unavailable
18
. CLIP, SPRING
1XD-F536E-00-00
Unavailable
19
WASHER, PLATE
90201-25023-00
Unavailable
20
NUT
90179-24006-00
Unavailable
21
CAP, WHEEL
2MB-F512A-00-00
Unavailable
22
REAR KNUCKLE ASSY.
1XD-F532F-21-00
Unavailable
23
BEARING
93306-20725-00
Unavailable
24
OIL SEAL
93106-50002-00
Unavailable
25
COLLAR
90387-35007-00
Unavailable
26
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
27
BUSH, SOLID
90381-18005-00
Unavailable
28
COLLAR
90387-12N54-00
Unavailable
29
COVER, THRUST 1
1XD-23517-01-00
Unavailable
30
BOLT, FLANGE
90105-12089-00
Unavailable
31
NUT, SELF-LOCKING
90185-12010-00
Unavailable
32
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
33
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
34
PLATE, GUIDE 2
1XD-F2342-00-00
Unavailable
35
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
