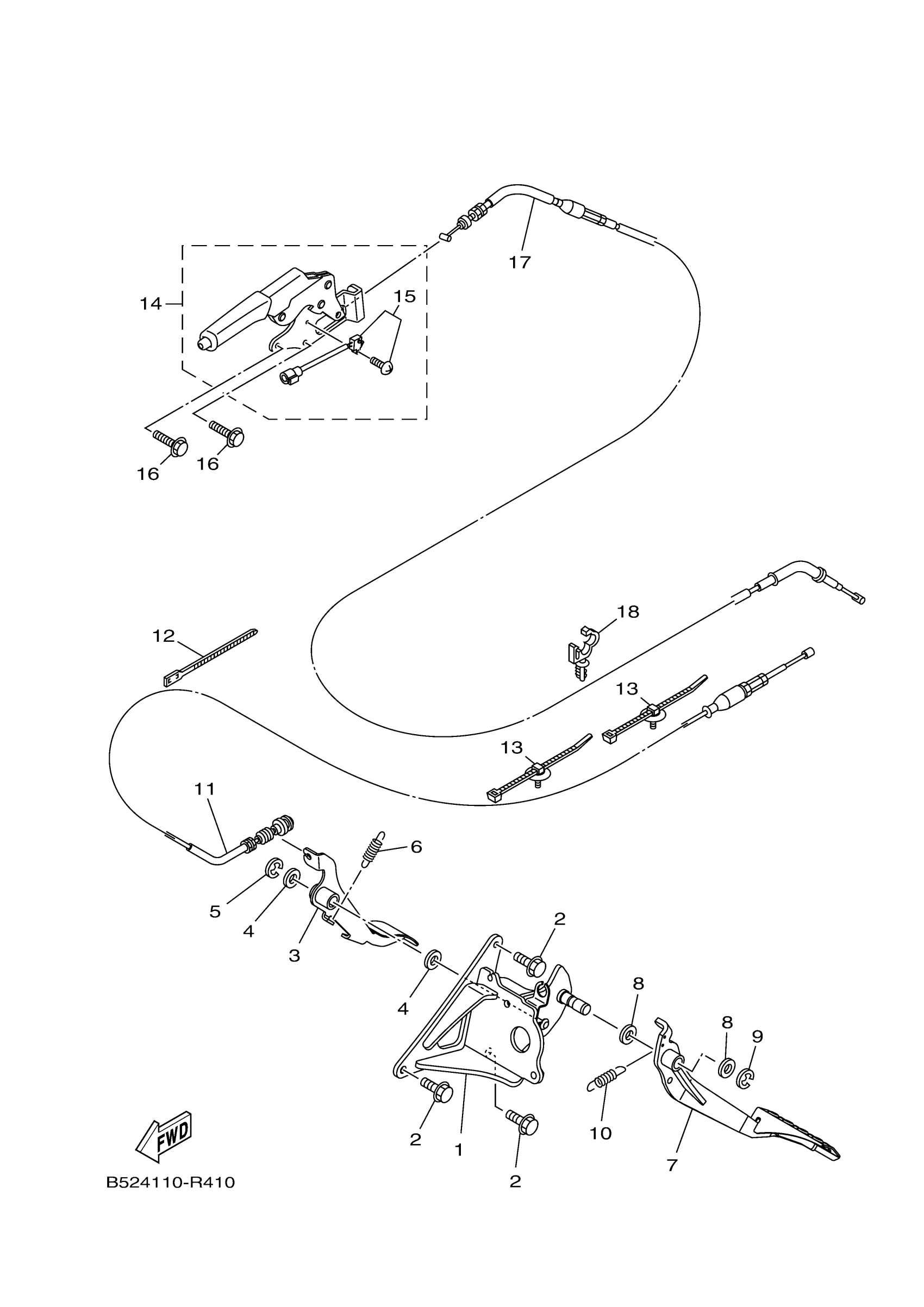

Yamaha YXE70WPHJH (WOLVERINE R-SPEC HUNTER) B3D4 2018 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

Unavailable

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION

90506-23023-00

$5.49

7

PEDAL, BRAKE

1XD-F7200-00-00

$48.99

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

CABLE, THROTTLE 1

2MB-26311-00-00

$64.99

12

CLAMP(JN6)

90464-40825-00

$3.05

13

CLAMP

5B4-F1338-00-00

$3.33

14

PARKING LEVER ASSY

BDW-F5690-00-00

$119.99

15

. SWITCH COMP

5UG-H251S-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

WIRE, BRAKE 1

2MB-26341-02-00

Unavailable

18

CLAMP

90464-12830-00

Unavailable
