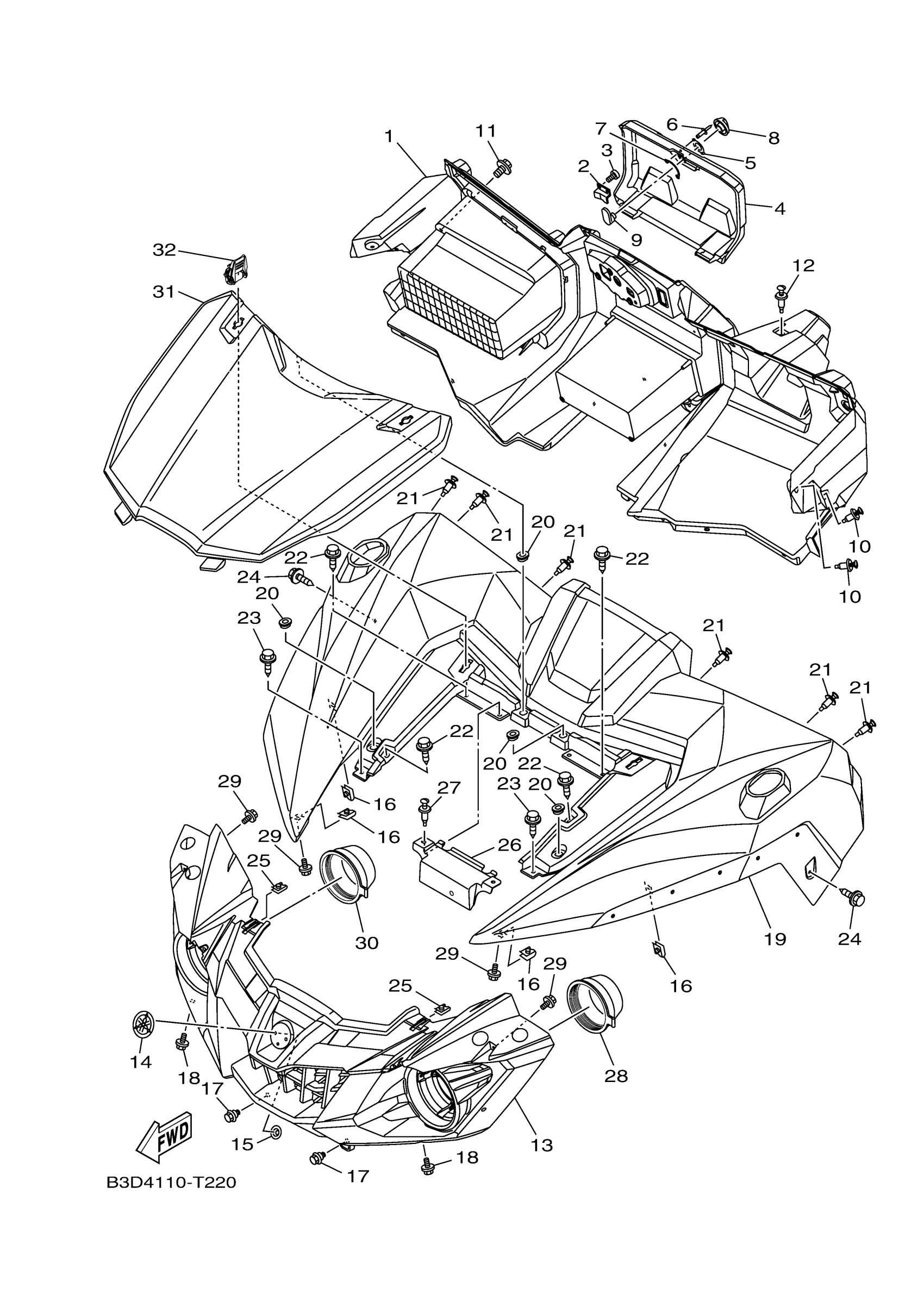

Yamaha YXE70WPHJH (WOLVERINE R-SPEC HUNTER) B3D4 2018 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2MB-K7711-01-00

Unavailable

2

BRACKET, COVER

1XD-F139T-00-00

$2.70

3

SCREW, TAPPING

90164-04800-00

Unavailable

4

LID

1XD-F160F-00-00

Unavailable

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$8.49

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.92

8

LOCK 1

1XD-2837G-00-00

$4.06

9

LOCK 2

1XD-2837H-00-00

$2.70

10

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

13

GRILLE, FRONT

2MB-F8309-00-00

Unavailable

14

TUNING FORK MARK

1XD-F175B-01-00

$14.49

15

NUT, SPRING

90183-06071-00

Unavailable

16

NUT, SPRING

90183-060A6-00

Unavailable

17

BOLT

90109-06202-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$8.49

19

FRONT FENDER COMP.

2MB-F1510-00-00

Unavailable

20

GROMMET(4DN)

90480-01558-00

Unavailable

21

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

22

BOLT, WITH WASHER

90119-06226-00

$8.49

23

BOLT, WITH WASHER

90119-06226-00

$8.49

24

BOLT, WITH WASHER

90119-06226-00

$8.49

25

NUT, SPRING

90183-060A6-00

Unavailable

26

COVER,REAR FENDER

1XD-F163A-01-00

Unavailable

27

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

28

CAP

3B4-28349-00-00

Unavailable

29

BOLT, HEXA W/W

90119-06018-00

Unavailable

30

CAP

3B4-28349-00-00

Unavailable

31

HOOD ASSY 3

2MB-F197A-00-00

Unavailable

32

LEVER, LOCK

1XD-2175K-10-00

Unavailable
