Partiron

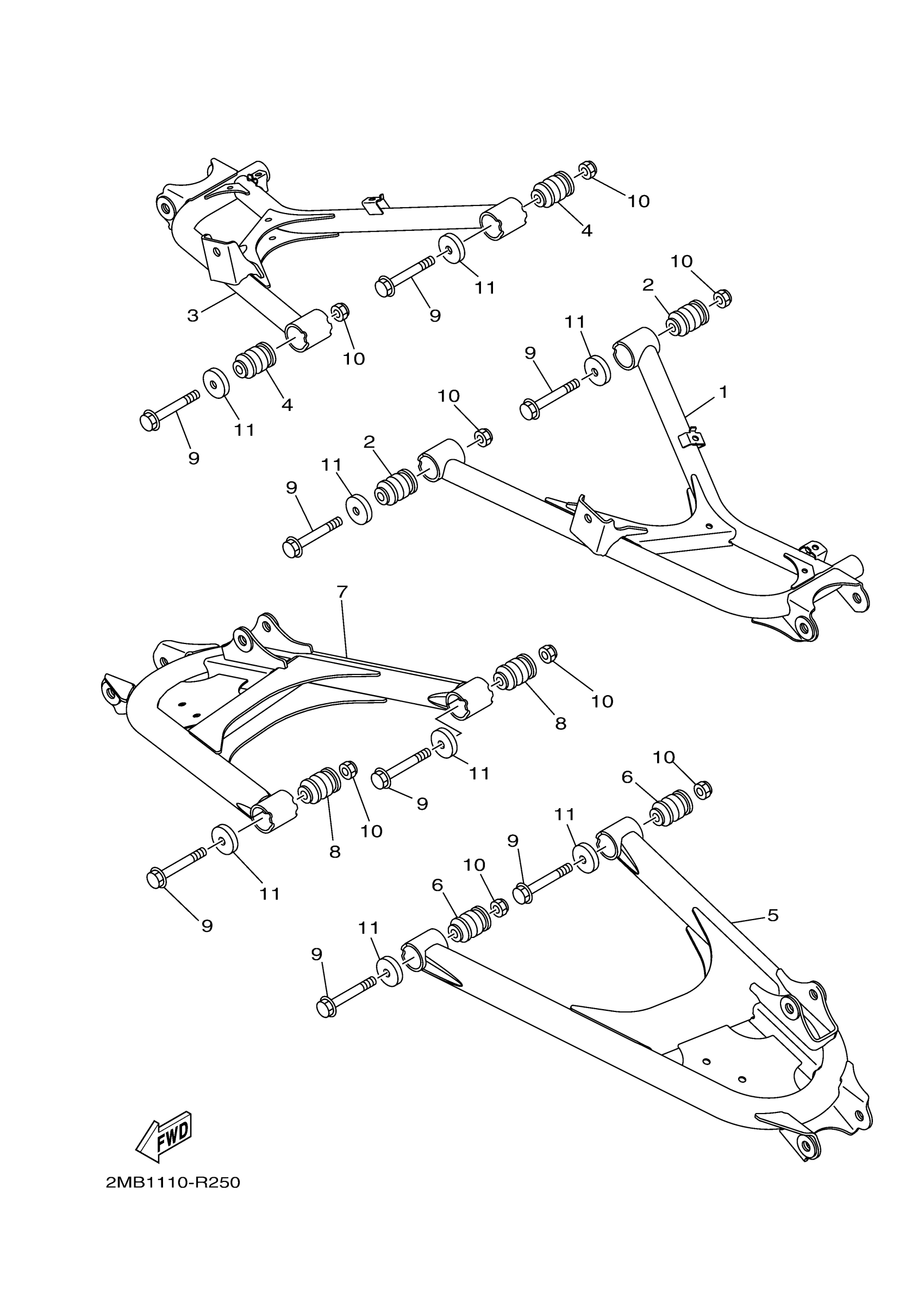

Yamaha YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

2MB-F2171-00-00

$50.36

2

BUSH

1HP-F3526-00-00

$20.42

3

ARM, REAR 2

2MB-F2172-00-00

$57.11

4

BUSH

1HP-F3526-00-00

$20.42

5

ARM 1

2MB-F217M-01-00

$50.32

6

BUSH

1HP-F3526-00-00

$20.42

7

ARM 2

2MB-F217N-01-00

$70.21

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10267-00

$7.23

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

WASHER

5KM-22149-10-00

$5.96
