- YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017
MIDDLE DRIVE GEAR

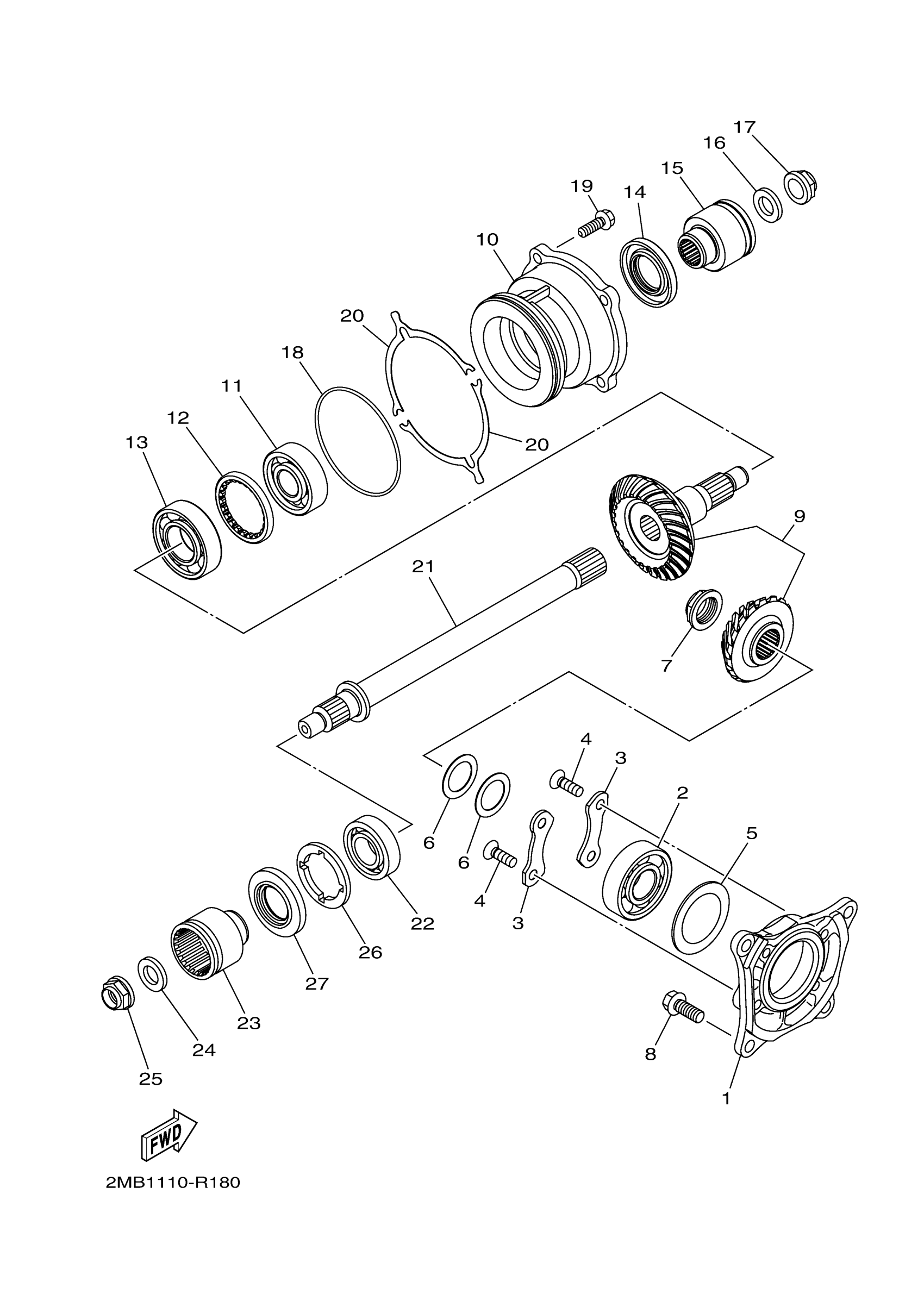

Yamaha YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017 MIDDLE DRIVE GEAR Diagram
#
1
HOUSING, BEARING
2MB-E7521-00-00
Unavailable
2
BEARING
2MB-E7412-00-00
$51.99
3
PLATE, BEARING COV
2MB-E5383-00-00
$12.99
4
SCREW, FIXED
2MB-E765G-00-00
$1.51
5
WASHER, BELLEVILLE
2MB-E7658-00-00
$11.99
6
SHIM, PINION (0.5T)
5KM-17531-50-00
$7.99
6
SHIM, PINION (0.55T)
5KM-17531-60-00
$4.42
6
SHIM, PINION (0.6T)
5KM-17531-70-00
$5.49
6
SHIM, PINION (0.7T)
5KM-17531-80-00
$4.52
6
SHIM, PINION (0.8T)
5KM-17531-90-00
$4.63
6
SHIM, PINION (0.9T)
5KM-17531-A0-00
$4.63
6
SHIM, PINION (1.0T)
5KM-17531-B0-00
$4.94
7
NUT
90179-22013-00
$26.99
8
BOLT 2
2MB-E22A1-00-00
$3.90
9
PINION SET
2PG-17530-01-00
$423.99
10
HOUSING, BEARING
2MB-E7551-00-00
Unavailable
11
BEARING 2
2MB-E7413-00-00
Unavailable
12
NUT
2MB-E7589-00-00
Unavailable
13
BEARING 1
2MB-E7422-00-00
Unavailable
14
OIL SEAL
2MB-E7499-00-00
Unavailable
15
COUPLING
2MB-E7832-00-00
Unavailable
16
WASHER,1
2MB-E7058-00-00
Unavailable
17
Nut
90179-16006-00
Unavailable
18
O-RING
2MB-E76F4-00-00
Unavailable
19
BOLT
2MB-E2615-00-00
Unavailable
20
SHIM, PINION (0.1T)
3B4-17531-00-00
Unavailable
20
SHIM, PINION (0.15T)
3B4-17531-10-00
Unavailable
20
SHIM, PINION (0.2T)
3B4-17531-20-00
Unavailable
20
SHIM, PINION (0.3T)
3B4-17531-30-00
Unavailable
20
SHIM, PINION (0.4T)
3B4-17531-40-00
Unavailable
20
SHIM, PINION (0.5T)
3B4-17531-50-00
Unavailable
20
SHIM, PINION (0.6T)
3B4-17531-60-00
Unavailable
21
SHAFT 1
2MB-E761A-00-00
Unavailable
22
BEARING 2
2MB-E7423-00-00
Unavailable
23
COUPLING
2MB-E7832-00-00
Unavailable
24
WASHER,1
2MB-E7058-00-00
Unavailable
25
Nut
90179-16006-00
Unavailable
26
NUT, BEARING
2MB-E7642-00-00
Unavailable
27
OIL SEAL
2MB-E7499-00-00
Unavailable
