- YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017
FRONT SUSPENSION WHEEL

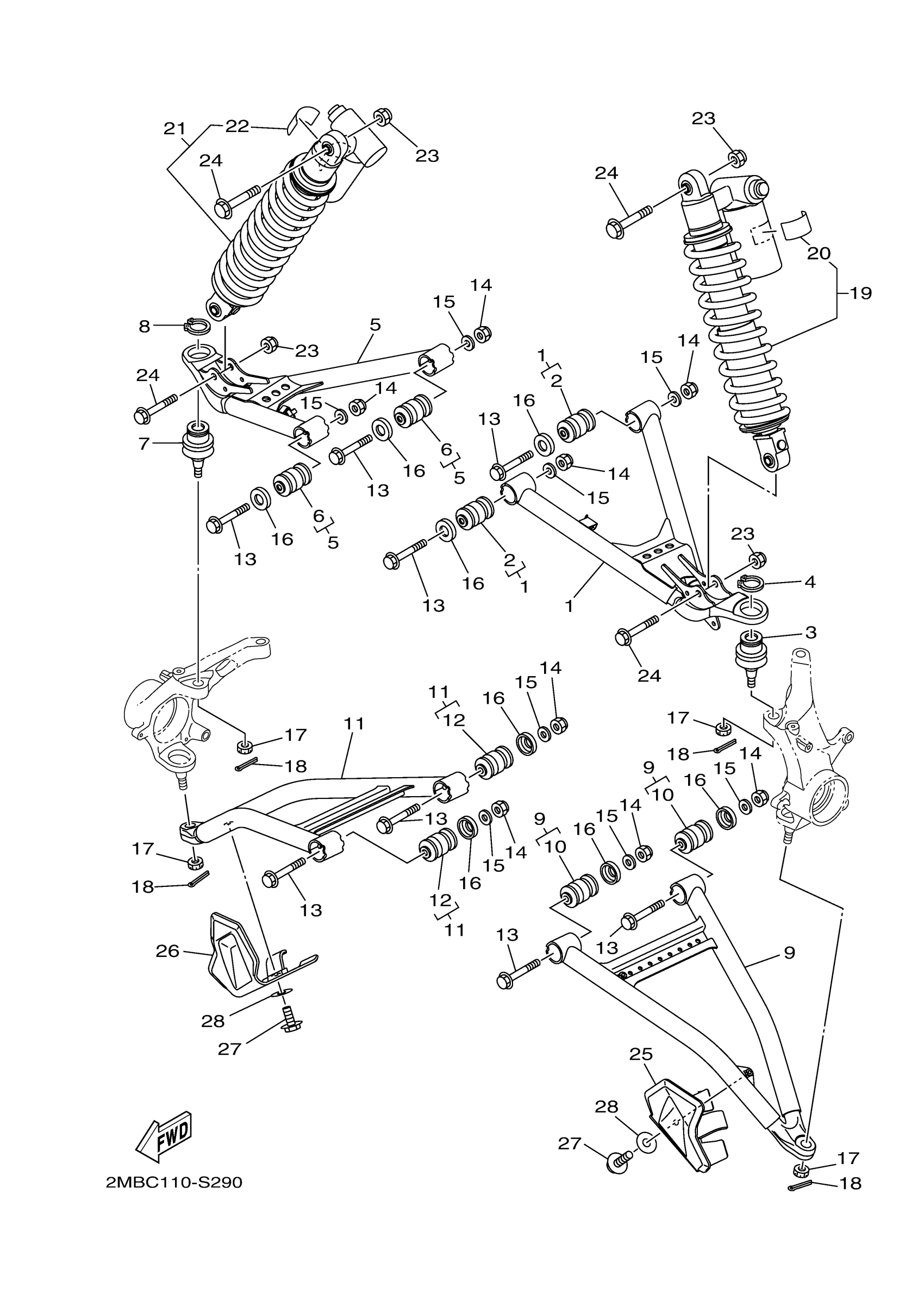

Yamaha YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT UPPER ARM CO
1XD-F3540-02-00
$87.99
2
BUSH
1HP-F3526-00-00
$22.99
3
BALL JOINT 2
1XD-23579-00-00
$76.99
4
CIRCLIP
93410-32075-00
$9.49
5
FRONTUPPERARMCOMP.(RIGHT)
1XD-F3550-01-00
Unavailable
6
BUSH
1HP-F3526-00-00
$22.99
7
BALL JOINT 2
1XD-23579-00-00
$76.99
8
CIRCLIP
93410-32075-00
$9.49
9
FRONT LOWER ARM CO
2MB-F3570-00-00
$88.99
10
BUSH
1HP-F3526-00-00
$22.99
11
FRONT LOWER ARM CO
2MB-F3580-00-00
Unavailable
12
BUSH
1HP-F3526-00-00
$22.99
13
BOLT, FLANGE
90105-10267-00
$9.49
14
NUT, SELF-LOCKING
90185-10012-00
$9.49
15
WASHER, PLATE
90201-10035-00
$4.19
16
WASHER
5KM-22149-10-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
FR. SHOCK ABSORBER
2MB-F350A-00-00
Unavailable
20
LABEL,WARNING
1HP-F2259-01-00
Unavailable
21
FR. SHOCK ABSORBER
2MB-F350B-00-00
Unavailable
22
LABEL,WARNING
1HP-F2259-01-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
$9.49
24
BOLT, FLANGE
90105-10283-00
Unavailable
25
COVER, UNDER 1
2MB-F3123-01-00
Unavailable
26
COVER, UNDER 2
2MB-F3133-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06137-00
Unavailable
28
WASHER, PLATE
90201-06036-00
Unavailable
