FRONT FENDER

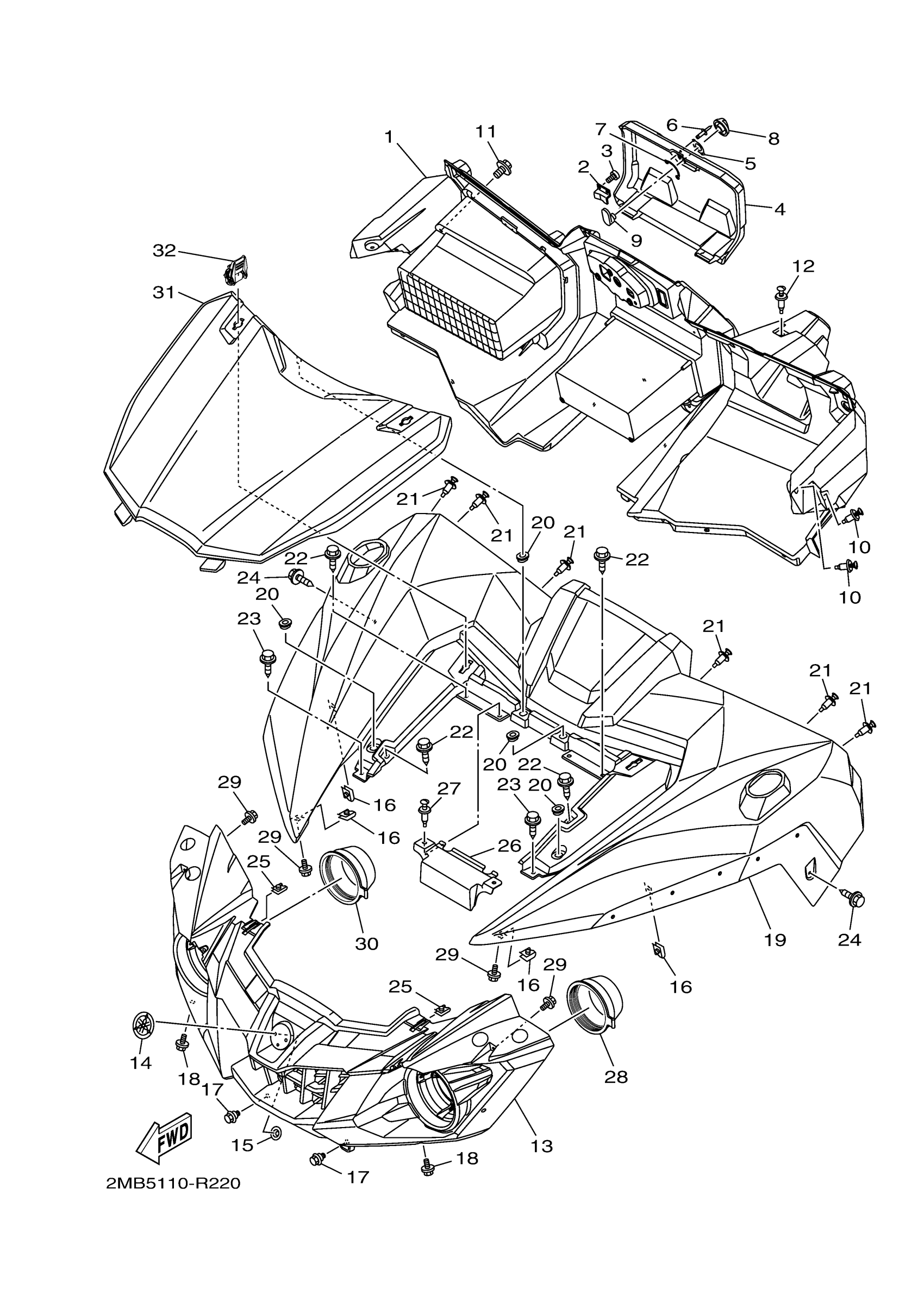

Yamaha YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
2MB-K7711-01-00
Unavailable
2
BRACKET, COVER
1XD-F139T-00-00
$2.70
3
SCREW, TAPPING
90164-04800-00
Unavailable
4
LID
1XD-F160F-00-00
Unavailable
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
6
RIVET, BLIND
90267-24143-00
$8.49
7
WASHER, SPECIAL 2
1XD-F1516-00-00
$1.92
8
LOCK 1
1XD-2837G-00-00
$4.06
9
LOCK 2
1XD-2837H-00-00
$2.70
10
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
GRILLE, FRONT
2MB-F8309-00-00
Unavailable
14
TUNING FORK MARK
1XD-F175B-01-00
$14.49
15
NUT, SPRING
90183-06071-00
Unavailable
16
NUT, SPRING
90183-060A6-00
Unavailable
17
BOLT
90109-06202-00
Unavailable
18
BOLT, WITH WASHER
90119-06226-00
$8.49
19
FRONT FENDER COMP.
2MB-F1510-00-00
Unavailable
20
GROMMET(4DN)
90480-01558-00
Unavailable
21
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
22
BOLT, WITH WASHER
90119-06226-00
$8.49
23
BOLT, WITH WASHER
90119-06226-00
$8.49
24
BOLT, WITH WASHER
90119-06226-00
$8.49
25
NUT, SPRING
90183-060A6-00
Unavailable
26
COVER,REAR FENDER
1XD-F163A-01-00
Unavailable
27
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
28
CAP
3B4-28349-00-00
Unavailable
29
BOLT, HEXA W/W
90119-06018-00
Unavailable
30
CAP
3B4-28349-00-00
Unavailable
31
HOOD ASSY 3
2MB-F197A-00-00
Unavailable
32
LEVER, LOCK
1XD-2175K-10-00
Unavailable
