Description

Price

1

FRAME COMP.

B3D-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

2MB-F1485-00-00

Unavailable

3

DAMPER, RUBBER 1

2PG-21485-00-00

$30.99

4

NUT, SELF-LOCKING

90185-10011-00

$5.60

5

BOLT 2

2MB-E3574-00-00

$4.47

6

NUT, SELF-LOCKING

90185-10011-00

$5.60

7

BOLT 1

2MB-E5481-E0-00

$2.18

8

BOLT, FLANGE

90105-10314-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

10

BRACKET, LOCK

2MB-F287G-00-00

Unavailable

11

BOLT, FLANGE

95817-10020-00

$8.49

12

STAY

2MB-F117A-00-00

$45.99

13

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

14

BRACKET

2MB-F1159-00-00

Unavailable

15

BOLT, FLANGE

95812-06010-00

$2.98

16

STAY, SUPPORT 1

2MB-F831T-00-00

Unavailable

17

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

18

COVER 3

2MB-F198J-00-00

Unavailable

19

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

20

REINFORCEMENT, FRAME 1

2MB-F1986-00-00

Unavailable

21

BOLT, FLANGE

90105-08867-00

Unavailable

22

TOOL KIT

5B4-F8100-00-00

Unavailable

23

GAUGE, AIR

1XD-F811A-00-00

Unavailable

24

INSULATOR, HEAT

2MB-F2898-00-00

Unavailable

25

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

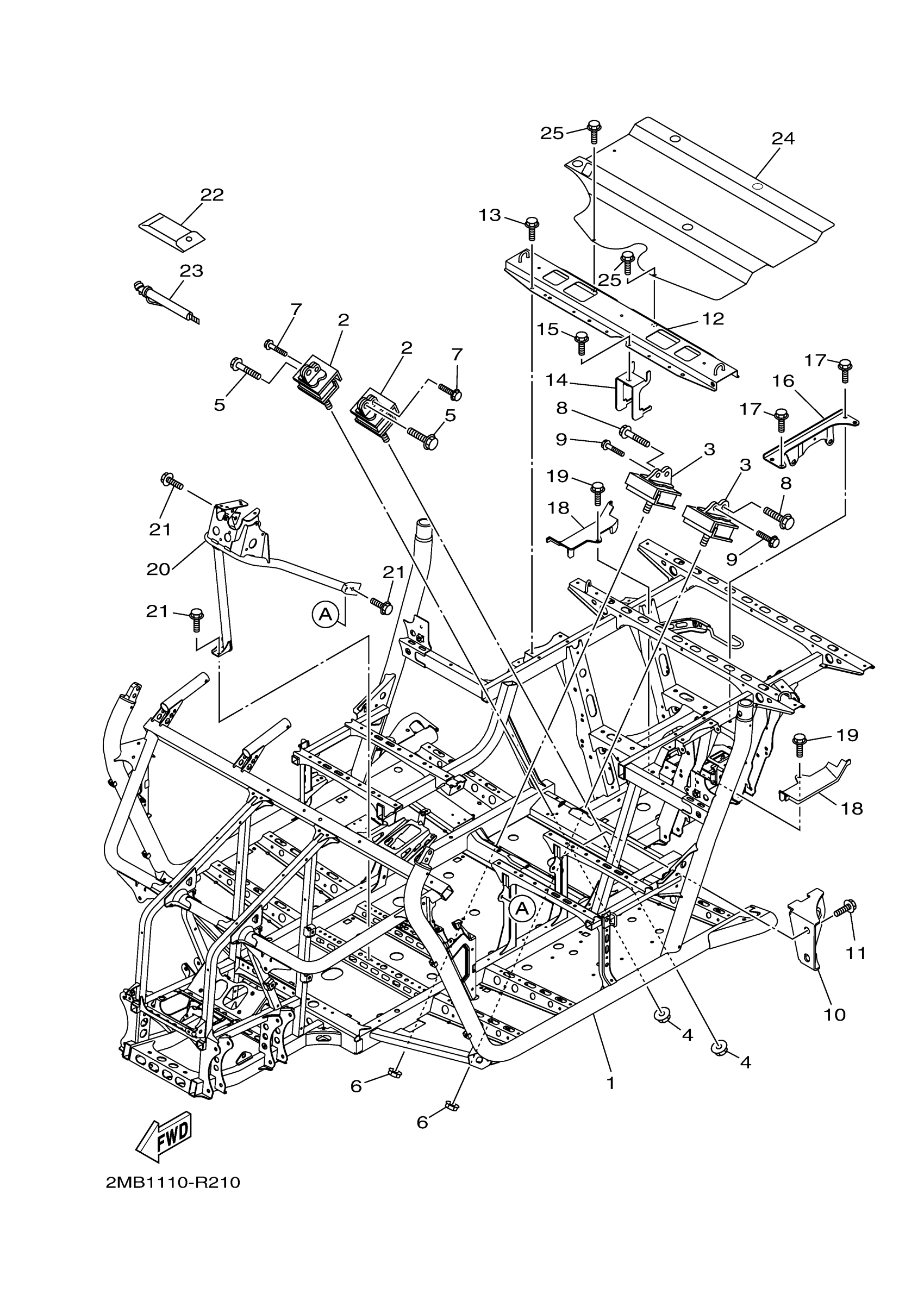

Yamaha YXE70WPHHH (WOLVERINE R-SPEC EPS HUNTER) 2MBG 2017 FRAME Diagram

FRAME COMP.

DAMPER, RUBBER 1

DAMPER, RUBBER 1

NUT, SELF-LOCKING

BOLT 2

NUT, SELF-LOCKING

BOLT 1

BOLT, FLANGE

BOLT, FLANGE(2UJ)

BRACKET, LOCK

BOLT, FLANGE

STAY

BOLT, FLANGE(JN5)

BRACKET

BOLT, FLANGE

STAY, SUPPORT 1

BOLT, FLANGE(JN5)

COVER 3

BOLT, SPECIAL 1

REINFORCEMENT, FRAME 1

BOLT, FLANGE

TOOL KIT

GAUGE, AIR

INSULATOR, HEAT

BOLT, FLANGE(JN5)
