SIDE COVER

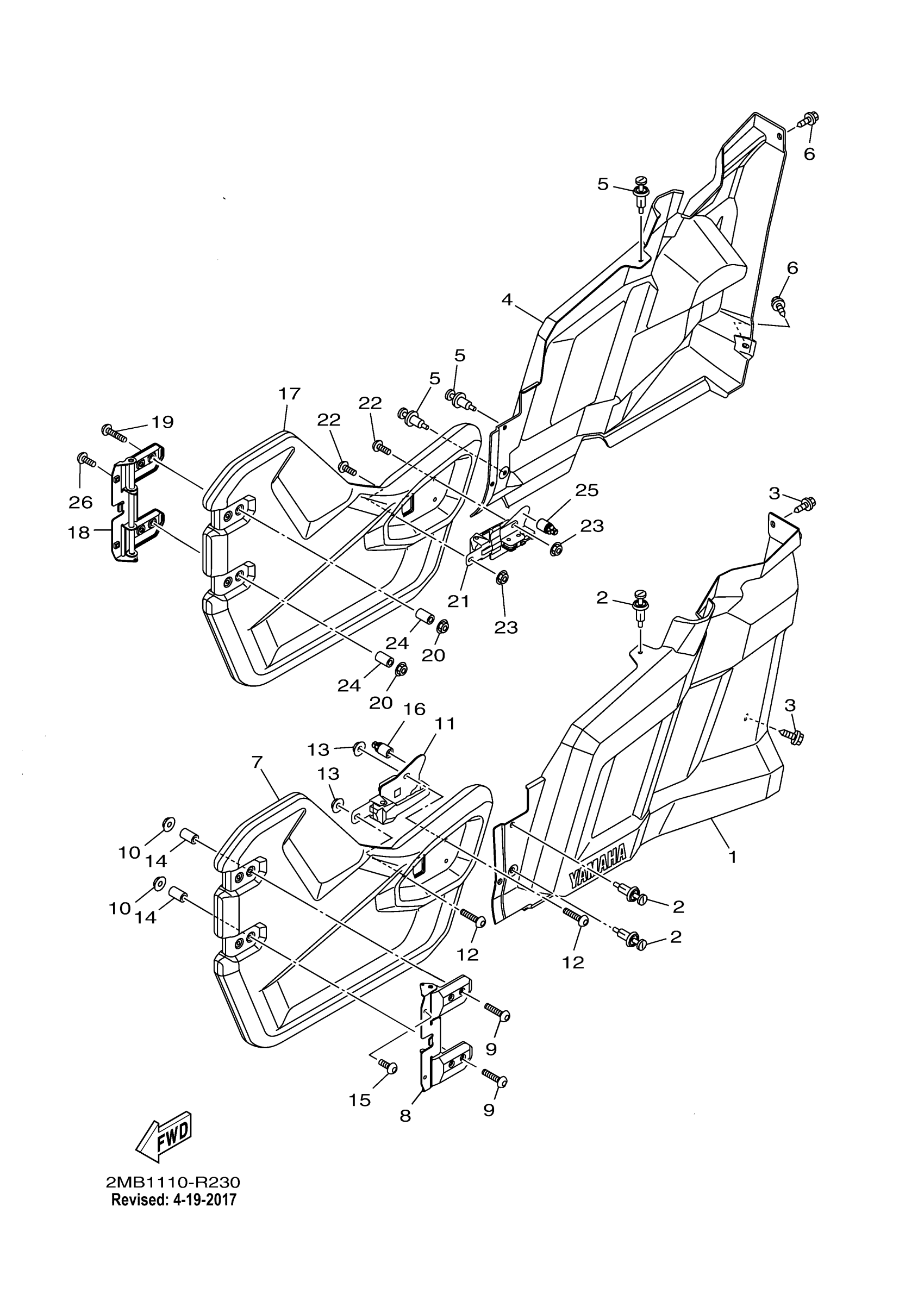

Yamaha YXE70WPHGH (WOLVERINE R-SPEC EPS HUNTER) 2MB5 2016 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 2
2MB-F1721-00-00
$217.99
2
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
3
BOLT, WITH WASHER
90119-06226-00
$8.49
4
COVER, SIDE 3
2MB-F1731-00-00
$217.99
5
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
6
BOLT, WITH WASHER
90119-06226-00
$8.49
7
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
8
HINGE ASSY
1XD-F4772-00-00
$45.99
9
BOLT
90109-06897-00
$0.90
10
NUT, U FLANGE
95604-06200-00
$8.49
11
BODY, LATCH 1
2MB-K7171-00-00
$69.99
12
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
13
NUT, U FLANGE
95604-06200-00
$8.49
14
COLLAR
90387-06304-00
$2.60
15
BOLT 2
5B4-F1722-00-00
$6.99
16
PAD
2MB-F8378-00-00
Unavailable
17
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
18
HINGE ASSY
1XD-F4772-00-00
$45.99
19
BOLT
90109-06897-00
$0.90
20
NUT, U FLANGE
95604-06200-00
$8.49
21
BODY, LATCH 2
2MB-K7172-00-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
23
NUT, U FLANGE
95604-06200-00
$8.49
24
COLLAR
90387-06304-00
$2.60
25
PAD
2MB-F8378-00-00
Unavailable
26
BOLT 2
5B4-F1722-00-00
$6.99
