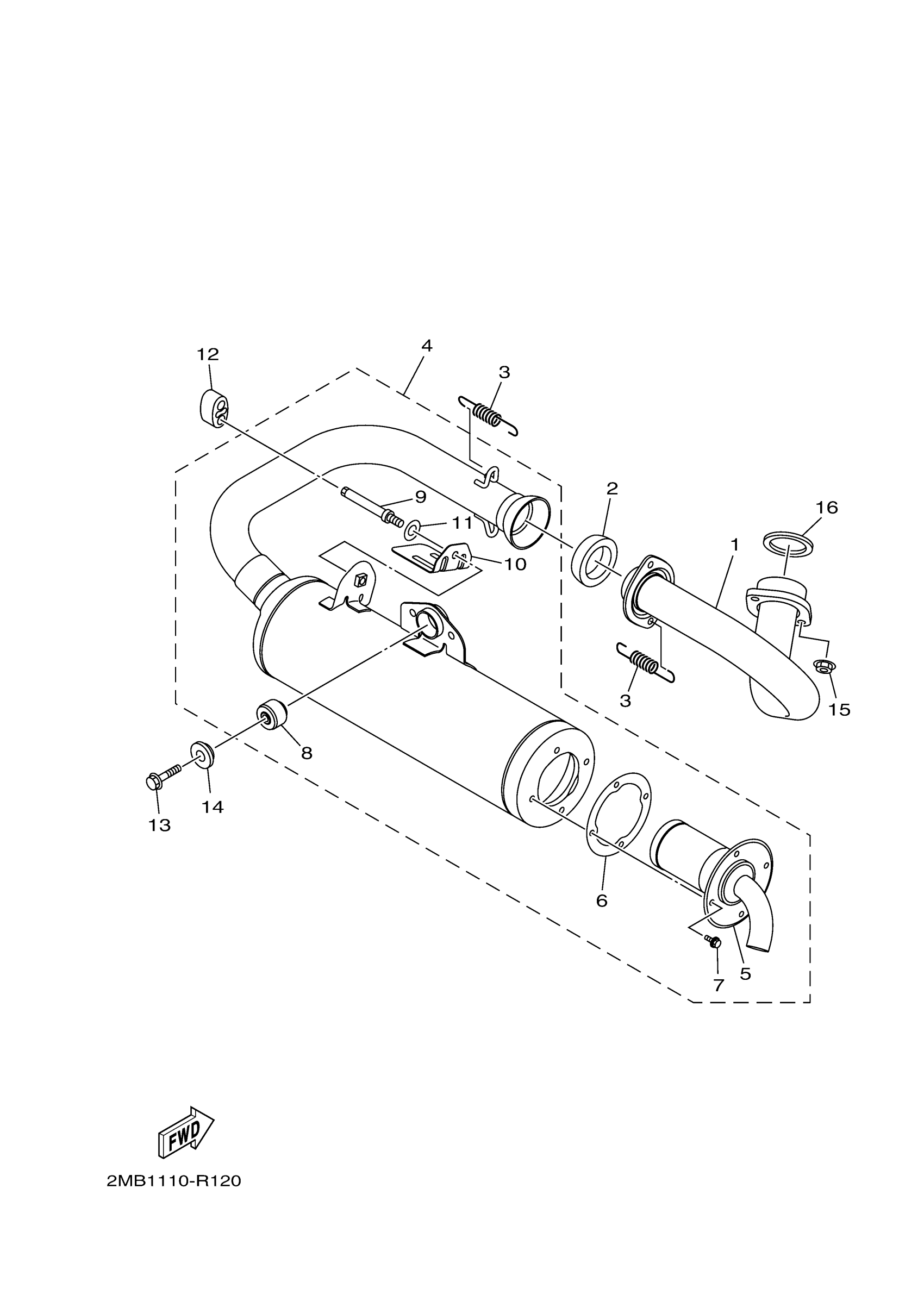

Yamaha YXE70WPHGH (WOLVERINE R-SPEC EPS HUNTER) 2MB5 2016 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2MB-E4611-00-00

Unavailable

2

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

3

SPRING, TENSION

90506-26012-00

$13.99

4

MUFFLER ASY L

2MB-E4710-01-00

Unavailable

5

SPARK ARRESTER ASS

2BG-E4780-00-00

$69.99

6

GASKET, SILENCER

2MB-E4755-00-00

Unavailable

7

BOLT, FLANGE

95022-06012-00

$3.29

8

DAMPER,FOOTREST

1HP-F7414-00-00

$21.99

9

SHAFT

1XD-E4745-00-00

$27.99

10

. PLATE, MUFFLER

2MB-E4793-00-00

Unavailable

11

. WASHER

92902-08200-00

Unavailable

12

DAMPER, MUFFLER

2MB-14737-00-00

$9.99

13

BOLT, FLANGE

95817-08040-00

$7.49

14

WASHER

3B4-14759-01-00

$18.49

15

NUT,FLANGE(J10)

95702-08500-00

$1.43

16

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable
