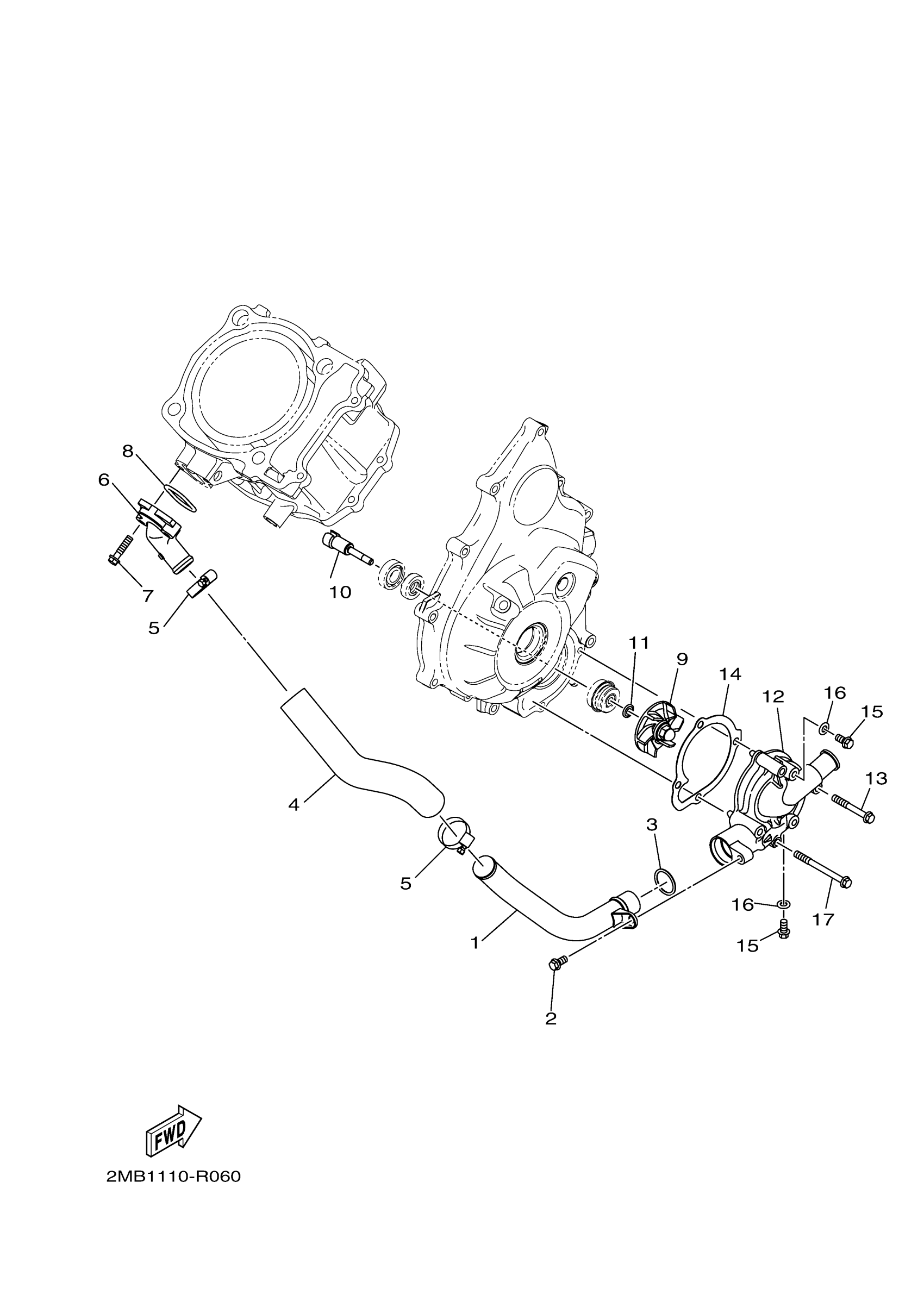

Yamaha YXE70WPBHL (WOLVERINE EPS) BW62 2017 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

2MB-E2481-00-00

$46.20

2

BOLT 1

2MB-E5481-60-00

$0.87

3

O-RING

2MB-E2439-00-00

$4.07

4

HOSE,3

2MB-E243F-00-00

Unavailable

5

CLAMP, HOSE 1

2MB-E1387-00-00

$10.21

6

JOINT 1

2MB-E2469-00-00

$27.95

7

BOLT 1

2MB-E5481-20-00

Unavailable

8

O-RING

2MB-E2843-00-00

$3.59

9

IMPELLER, WATER PU

2MB-E2451-00-00

$31.11

10

SHAFT, IMPELLER

2MB-E2458-00-00

$41.49

11

SEAL, WATER PUMP

2MB-E243M-00-00

$5.55

12

COVER, HOUSING

2MB-E2422-00-00

Unavailable

13

BOLT 1

2MB-E5481-B0-00

Unavailable

14

GASKET, HOUSING CO

2MB-E2428-00-00

$1.15

15

BOLT 1

2MB-E5481-60-00

$0.87

16

GASKET

2MB-E2435-00-00

Unavailable

17

BOLT 1

2MB-E5481-70-00

Unavailable
