Description

Price

1

COVER 1

2MB-F8219-00-00

Unavailable

2

COVER, HANDLE LEVE

1XD-F6372-00-00

$8.99

3

BOX

2MB-F1653-00-00

$42.99

4

PAD, BODY PROTECT 8

JR4-7826L-00-00

$7.64

5

LID 2

2MB-F177J-00-00

$15.99

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

PLATE, UNDER 1

2MB-F84A3-00-00

Unavailable

9

PLATE, UNDER 2

2MB-F84A4-00-00

Unavailable

10

BOLT, FLANGE

90105-06833-00

$2.28

11

WASHER, PLATE

90201-06036-00

$8.49

12

MUD GUARD 1

2MB-F2327-00-00

$87.99

13

NUT, SPRING

90183-060A6-00

$5.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

MUD GUARD 2

2MB-F2328-00-00

$27.99

16

NUT, SPRING

90183-060A6-00

$5.49

17

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

18

PLATE, RUBBER 1

2MB-F8483-00-00

Unavailable

19

PLATE, RUBBER 2

2MB-F8484-00-00

Unavailable

20

PLATE, RUBBER 3

2MB-F8485-00-00

Unavailable

21

PLATE, RUBBER 4

2MB-F8499-00-00

Unavailable

22

PLATE, RUBBER 5

2MB-F845J-00-00

Unavailable

23

PLATE, RUBBER 6

2MB-F846J-00-00

Unavailable

24

PLATE, RUBBER 7

2MB-F847J-00-00

Unavailable

25

BOLT

90109-068A5-00

Unavailable

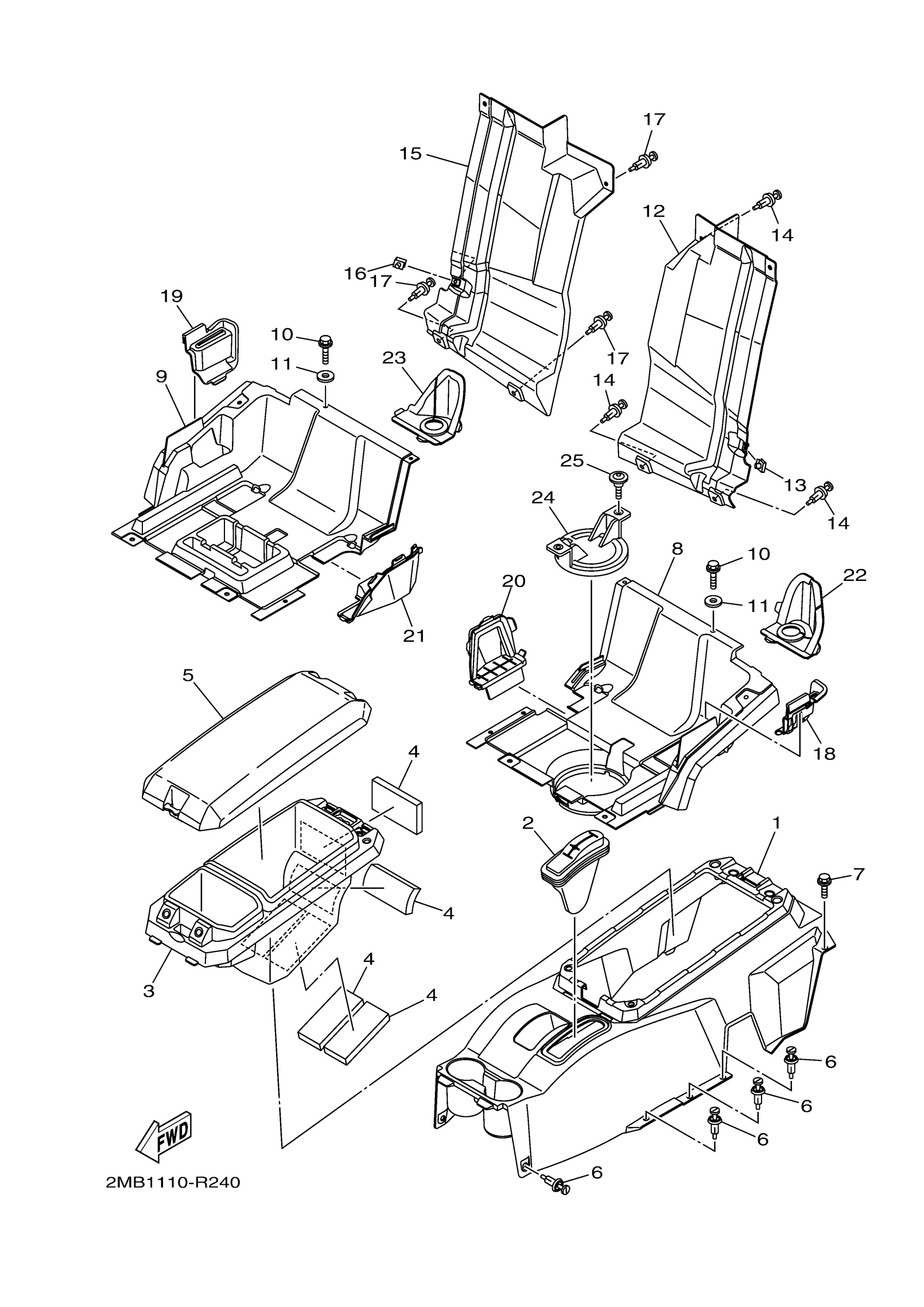

Yamaha YXE70WPBHL (WOLVERINE EPS) BW62 2017 SIDE COVER 2 Diagram

COVER 1

COVER, HANDLE LEVE

BOX

PAD, BODY PROTECT 8

LID 2

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PLATE, UNDER 1

PLATE, UNDER 2

BOLT, FLANGE

WASHER, PLATE

MUD GUARD 1

NUT, SPRING

RIVET,SPEC'L SHAPE

MUD GUARD 2

NUT, SPRING

RIVET,SPEC'L SHAPE

PLATE, RUBBER 1

PLATE, RUBBER 2

PLATE, RUBBER 3

PLATE, RUBBER 4

PLATE, RUBBER 5

PLATE, RUBBER 6

PLATE, RUBBER 7

BOLT
