Description

Price

1

SEAT 1

2PG-F7498-02-00

Unavailable

2

SEAT BACK ASY

1XD-F4790-01-00

$449.99

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$171.99

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$149.99

6

DAMPER, SEAT

1XD-F4723-00-00

$1.46

7

FRAME, SEAT 1

1XD-F473C-01-00

Unavailable

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

9

GROMMET

1XD-F4742-00-00

$3.69

10

COVER,2

1XD-F475X-01-00

$38.99

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

12

BOLT, FLANGE

95817-08012-00

$5.49

13

SEAT 2

2PG-F7499-02-00

Unavailable

14

SEAT BACK ASY

1XD-F4790-01-00

$449.99

15

COVER,SINGLE SEAT

1XD-F4711-01-00

$171.99

16

SEAT ASSY

1XD-F4700-01-00

Unavailable

17

COVER,DOUBLE SEAT

1XD-F4731-01-00

$149.99

18

DAMPER, SEAT

1XD-F4723-00-00

$1.46

19

FRAME, SEAT 2

1XD-F473D-01-00

Unavailable

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

21

GROMMET

1XD-F4742-00-00

$3.69

22

BOLT, FLANGE

95817-08012-00

$5.49

23

COVER,2

1XD-F475X-01-00

$38.99

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

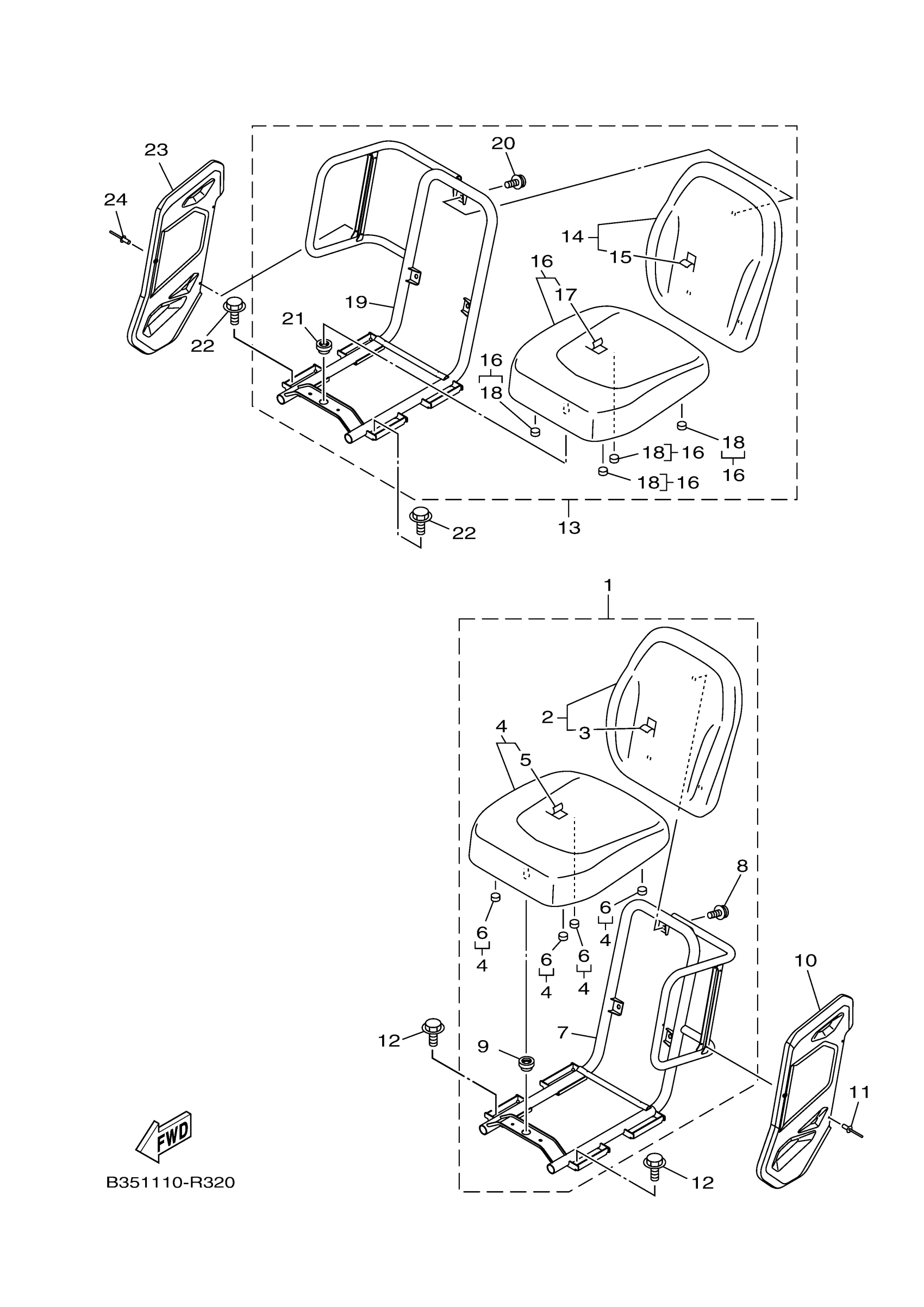

Yamaha YXE70WPBHH (WOLVERINE EPS HUNTER) BW65 2017 SEAT Diagram

SEAT 1

SEAT BACK ASY

COVER,SINGLE SEAT

SEAT ASSY

COVER,DOUBLE SEAT

DAMPER, SEAT

FRAME, SEAT 1

BOLT, SEAT FITTING

GROMMET

COVER,2

RIVET, BLIND(EU0,USA)

BOLT, FLANGE

SEAT 2

SEAT BACK ASY

COVER,SINGLE SEAT

SEAT ASSY

COVER,DOUBLE SEAT

DAMPER, SEAT

FRAME, SEAT 2

BOLT, SEAT FITTING

GROMMET

BOLT, FLANGE

COVER,2

RIVET, BLIND(EU0,USA)
