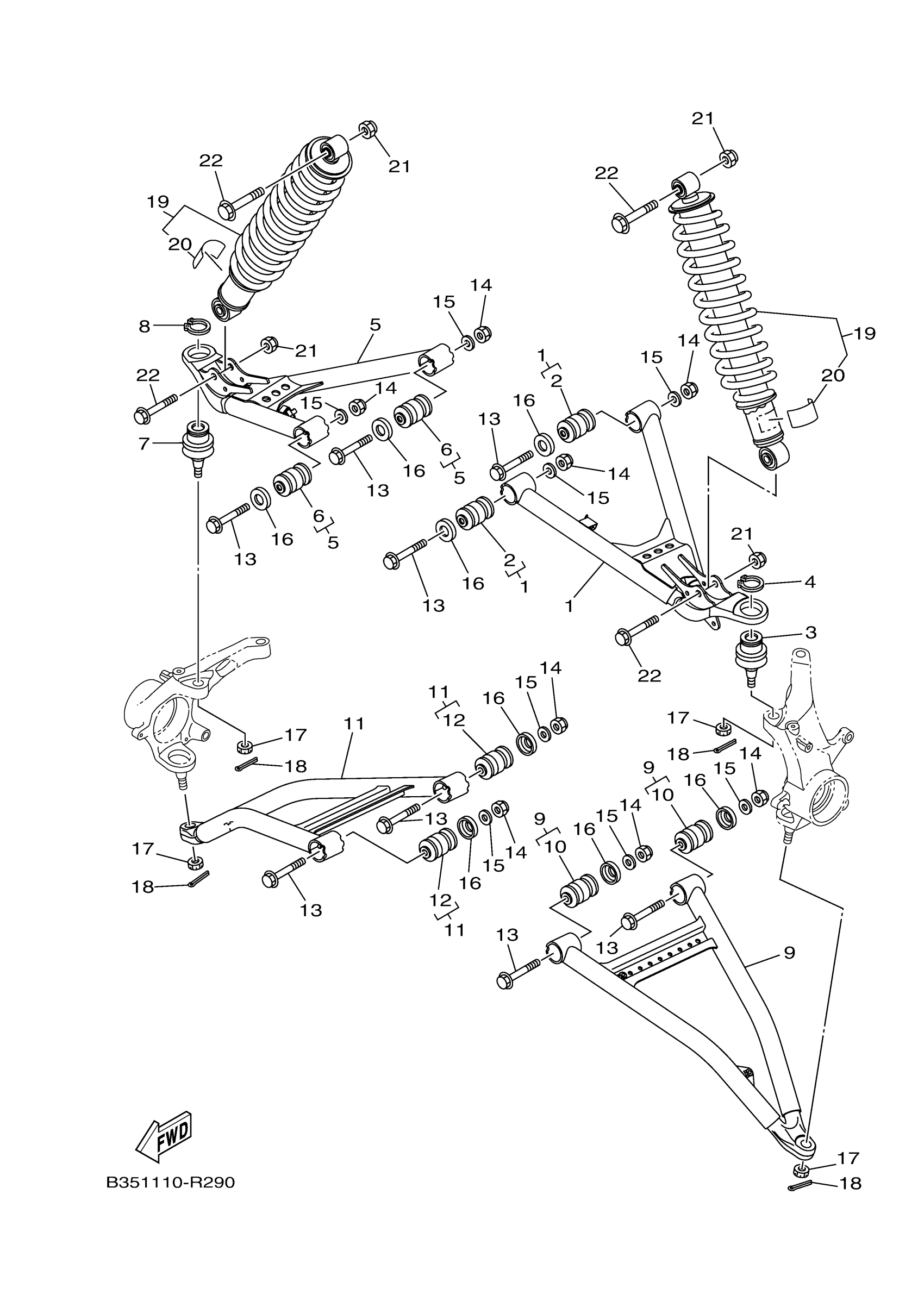

Yamaha YXE70WPBHG (WOLVERINE EPS) BW61 2017 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

1XD-F3540-02-00

$69.80

2

BUSH

1HP-F3526-00-00

$20.42

3

BALL JOINT 2

1XD-23579-00-00

$62.23

4

CIRCLIP

93410-32075-00

$6.51

5

FRONTUPPERARMCOMP.(RIGHT)

1XD-F3550-01-00

Unavailable

6

BUSH

1HP-F3526-00-00

$20.42

7

BALL JOINT 2

1XD-23579-00-00

$62.23

8

CIRCLIP

93410-32075-00

$6.51

9

FRONT LOWER ARM CO

2MB-F3570-00-00

$77.41

10

BUSH

1HP-F3526-00-00

$20.42

11

FRONT LOWER ARM CO

2MB-F3580-00-00

Unavailable

12

BUSH

1HP-F3526-00-00

$20.42

13

BOLT, FLANGE

90105-10267-00

$7.23

14

NUT, SELF-LOCKING

90185-10012-00

$2.78

15

WASHER, PLATE

90201-10035-00

$3.33

16

WASHER

5KM-22149-10-00

Unavailable

17

NUT, CASTLE

90171-12001-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

SHOCK ABSORBER ASS

B35-F3390-00-00

Unavailable

20

LABEL,WARNING

1HP-F2259-01-00

Unavailable

21

NUT, SELF-LOCKING

90185-10012-00

$2.78

22

BOLT, FLANGE

90105-10283-00

Unavailable
