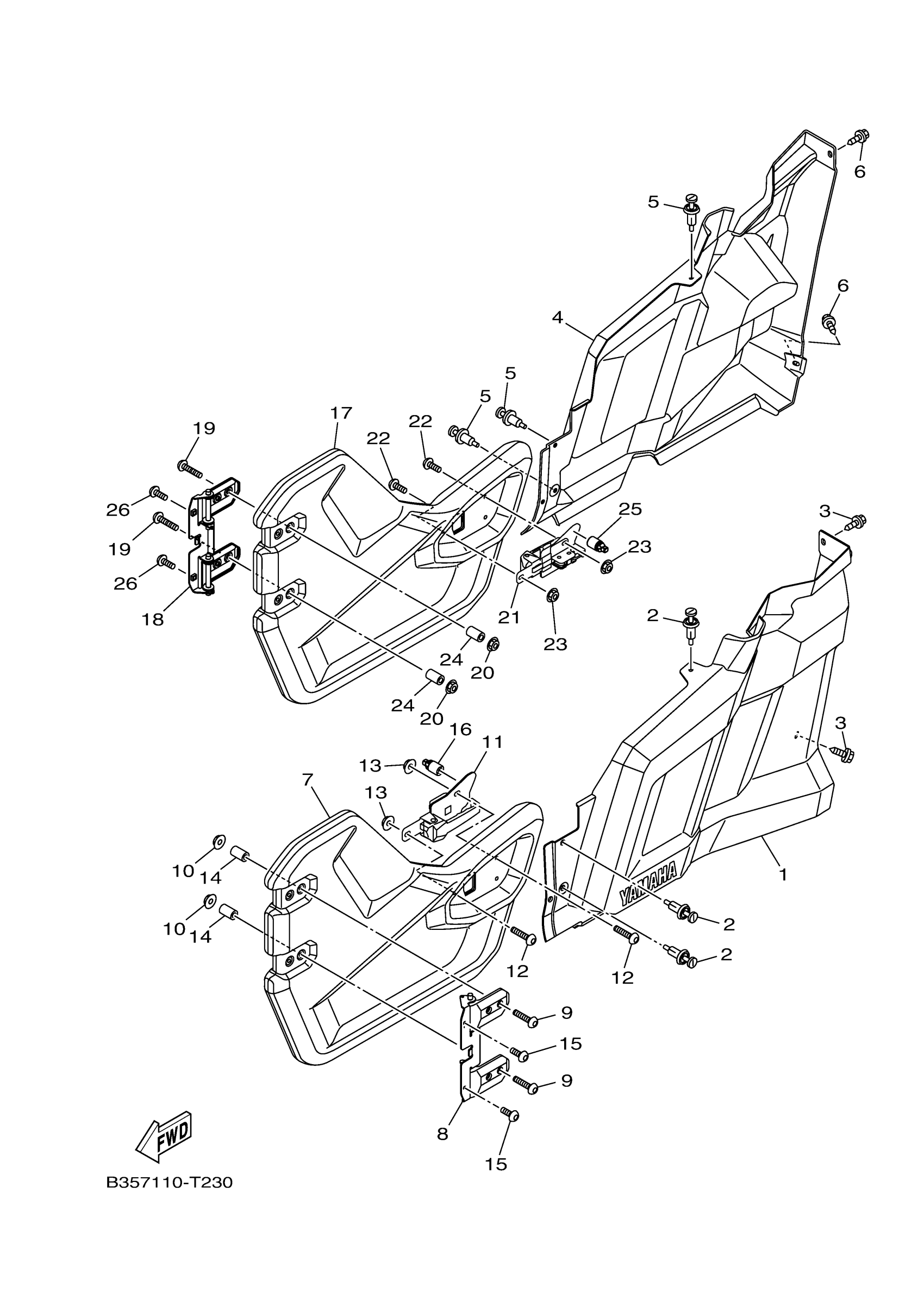

Yamaha YXE70WPAJW (WOLVERINE R-SPEC EPS) B3D11 2018 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

2MB-F1721-00-00

$232.70

2

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

COVER, SIDE 3

2MB-F1731-00-00

$232.70

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

8

HINGE ASS'Y

1XD-F4772-10-00

$32.52

9

BOLT

90109-06897-00

$0.84

10

NUT, U FLANGE

95604-06200-00

$2.19

11

BODY, LATCH 1

2MB-K7171-00-00

$56.31

12

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

13

NUT, U FLANGE

95604-06200-00

$2.19

14

COLLAR

90387-06304-00

$2.29

15

BOLT 2

5B4-F1722-00-00

$1.15

16

PAD

2MB-F8378-00-00

Unavailable

17

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

18

HINGE ASS'Y

1XD-F4772-10-00

$32.52

19

BOLT

90109-06897-00

$0.84

20

NUT, U FLANGE

95604-06200-00

$2.19

21

BODY, LATCH 2

2MB-K7172-00-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

23

NUT, U FLANGE

95604-06200-00

$2.19

24

COLLAR

90387-06304-00

$2.29

25

PAD

2MB-F8378-00-00

Unavailable

26

BOLT 2

5B4-F1722-00-00

$1.15
