- YXE70WPAHW (WOLVERINE R-SPEC EPS) BW111 2017
RADIATOR HOSE

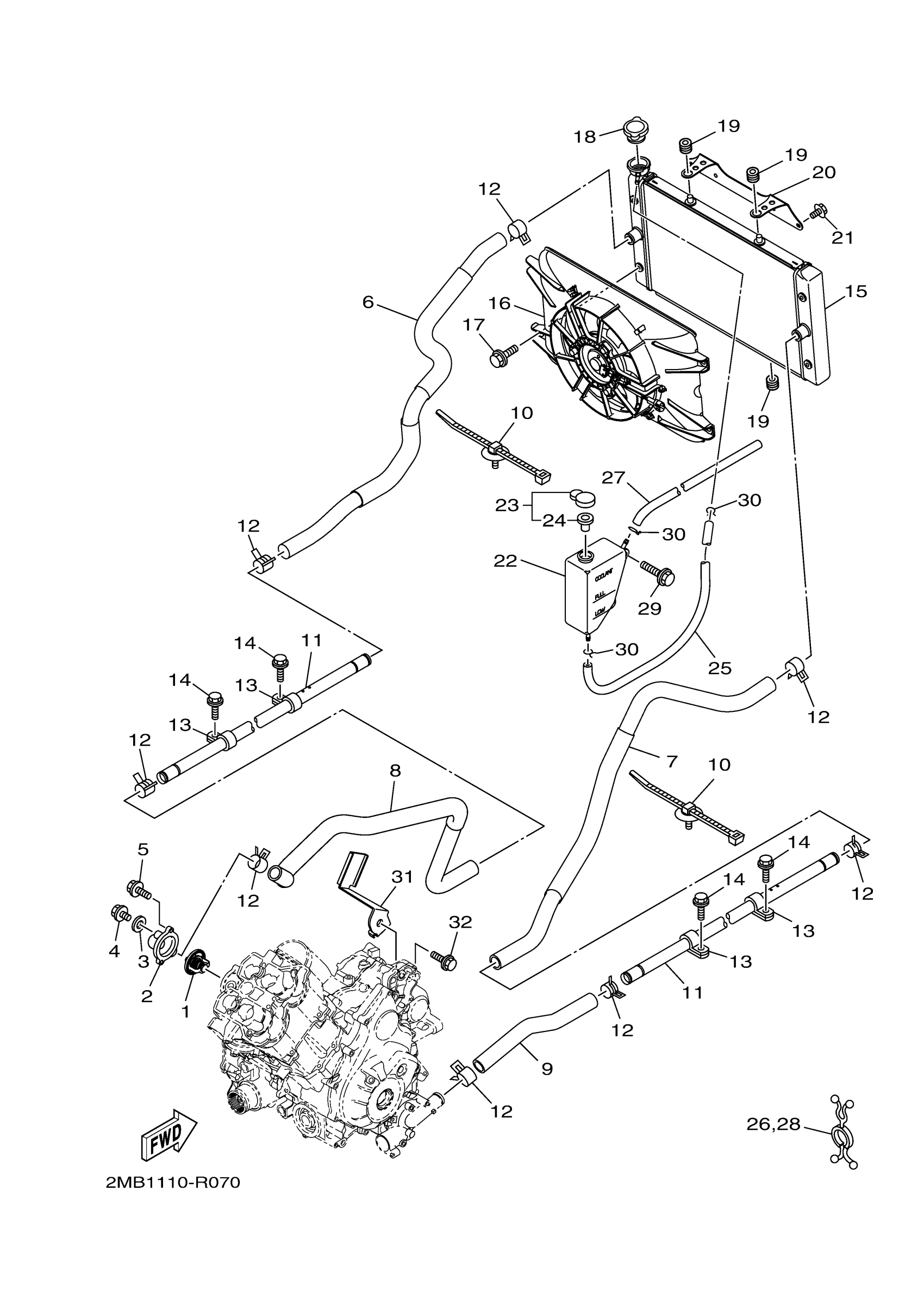

Yamaha YXE70WPAHW (WOLVERINE R-SPEC EPS) BW111 2017 RADIATOR HOSE Diagram
#
1
THERMOSTAT
2MB-E2411-00-00
$90.99
2
COVER, THERMOSTAT
2MB-E2413-00-00
Unavailable
3
GASKET
2MB-E2435-00-00
$1.66
4
BOLT 1
2MB-E5481-60-00
$1.40
5
BOLT 1
2MB-E5481-10-00
$1.04
6
HOSE 1
1XD-E2576-00-00
$36.99
7
HOSE 2
1XD-E2577-00-00
$36.99
8
HOSE 3
2MB-E2578-00-00
Unavailable
9
HOSE 4
1XD-E2579-00-00
$15.49
10
CLAMP
1NS-F1338-00-00
$3.33
11
PIPE 3
2MB-E2483-00-00
$17.49
12
CLIP
90467-26189-00
$7.49
13
CLAMP
90461-12800-00
$2.28
14
BOLT, FLANGE
90105-06831-00
$2.29
15
RADIATOR ASY
1XD-E2461-01-00
Unavailable
16
BLOWER ASSY
1XD-E2405-01-00
Unavailable
17
BOLT, BLOWER HOLDI
1XD-E2675-00-00
Unavailable
18
CAP, RADIATOR
1XD-E2462-00-00
Unavailable
19
GROMMET(2GH)
90480-12475-00
Unavailable
20
BRACKET, WATER COOLER
2MB-E2518-00-00
Unavailable
21
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
22
TANK, RECOVERY
1XD-F1871-00-00
Unavailable
23
CAP
1AA-21815-00-00
Unavailable
24
GASKET
1AA-21874-00-00
Unavailable
25
HOSE (L920)
90445-08846-00
Unavailable
26
CLAMP(3XV)
90464-29179-00
Unavailable
27
HOSE (L760)
90445-08845-00
Unavailable
28
CLAMP(3XV)
90464-29179-00
Unavailable
29
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
30
CLIP 101235600
90467-08003-00
Unavailable
31
STAY
1XD-E2443-00-00
Unavailable
32
BOLT, FLANGE
95814-10040-00
Unavailable
