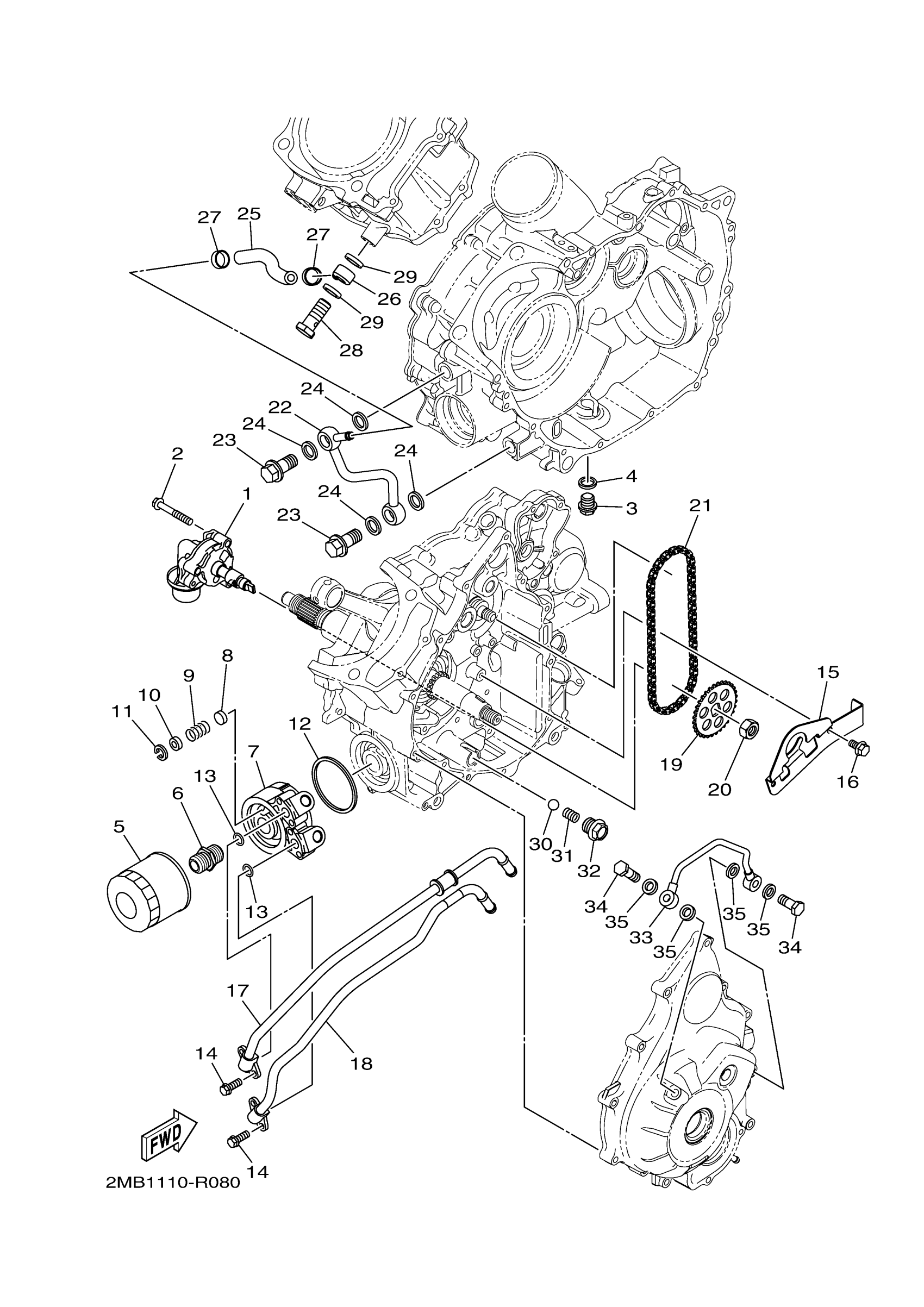

Yamaha YXE70WPAHW (WOLVERINE R-SPEC EPS) BW111 2017 OIL PUMP Diagram
#
1
OIL PUMP ASSY
2MB-E3300-00-00
Unavailable
2
BOLT 1
2MB-E5481-30-00
$1.56
3
PLUG, BLIND
2MB-E8149-00-00
$2.60
4
GASKET
2MB-E1198-00-00
$2.91
5
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
6
BOLT 1
2MB-E3573-00-00
$65.99
7
PLATE, ADAPTOR
5UG-13461-00-00
$166.99
8
PLUG
1YW-13497-00-00
$6.99
9
SPRING, COMPRESSION(1YW)
90501-082E3-00
$3.28
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
CIRCLIP(1YW)
93420-13073-00
$8.49
12
O-RING
2MB-E3016-00-00
Unavailable
13
O-RING
2MB-E319C-00-00
$2.08
14
BOLT 1
2MB-E5481-E0-00
$2.18
15
GUIDE, STOPPER 3
2MB-E2221-00-00
$41.99
16
BOLT 1
2MB-E5481-40-00
Unavailable
17
PIPE, OIL 1
2MB-E3416-00-00
Unavailable
18
PIPE, OIL 2
2MB-E3418-00-00
Unavailable
19
SPROCKET, DRIVEN
2MB-E3355-00-00
Unavailable
20
NUT, SPECIAL
2MB-E1459-00-00
Unavailable
21
CHAIN, PRIMARY
2MB-E1456-00-00
Unavailable
22
PIPE, DELIVERY 2
2MB-E3171-00-00
Unavailable
23
BOLT, BANJO
2MB-E3165-00-00
Unavailable
24
GASKET
2MB-E8363-00-00
Unavailable
25
HOSE, OIL 1
2MB-E316F-00-00
Unavailable
26
PIPE, DELIVERY 3
2MB-E3181-00-00
Unavailable
27
CLAMP
2MB-E5485-00-00
Unavailable
28
BOLT, BANJO
2MB-E3166-00-00
Unavailable
29
GASKET
2MB-E1195-00-00
Unavailable
30
BALL
2MB-E8218-00-00
Unavailable
31
SPRING
2MB-E3469-00-00
Unavailable
32
PLUG
2MB-E3455-00-00
Unavailable
33
PIPE, DELIVERY 1
2MB-E3161-00-00
Unavailable
34
BOLT, UNION
2MB-E2858-00-00
Unavailable
35
GASKET
2MB-E3476-00-00
Unavailable
