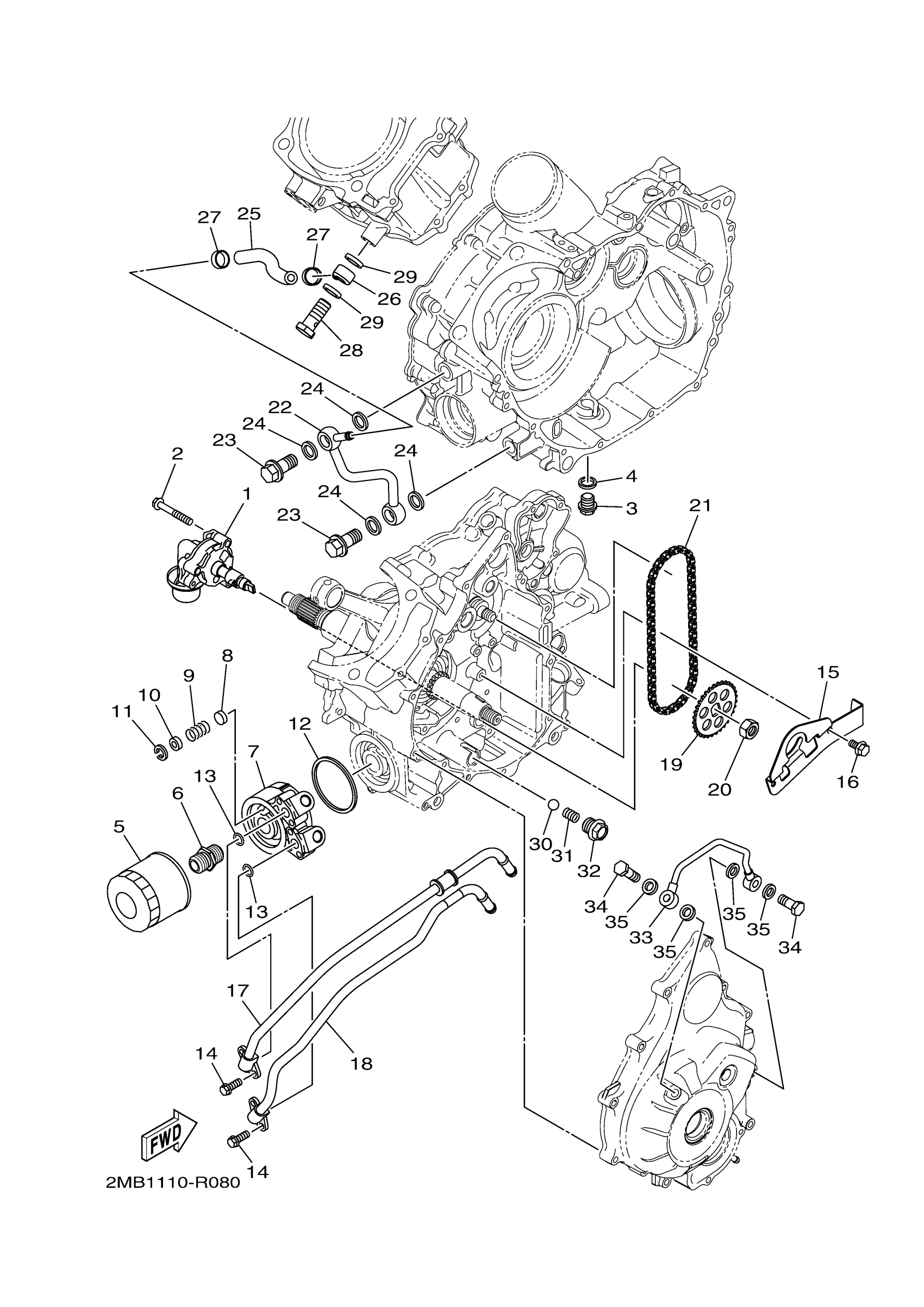

Yamaha YXE70WPAGW (WOLVRINE R-SPEC EPS) 2MBB 2016 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2MB-E3300-00-00

Unavailable

2

BOLT 1

2MB-E5481-30-00

$1.56

3

PLUG, BLIND

2MB-E8149-00-00

$2.60

4

GASKET

2MB-E1198-00-00

$2.91

5

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

6

BOLT 1

2MB-E3573-00-00

$65.99

7

PLATE, ADAPTOR

5UG-13461-00-00

$166.99

8

PLUG

1YW-13497-00-00

$6.99

9

SPRING, COMPRESSION(1YW)

90501-082E3-00

$3.28

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

CIRCLIP(1YW)

93420-13073-00

$8.49

12

O-RING

2MB-E3016-00-00

Unavailable

13

O-RING

2MB-E319C-00-00

$2.08

14

BOLT 1

2MB-E5481-E0-00

$2.18

15

GUIDE, STOPPER 3

2MB-E2221-00-00

$41.99

16

BOLT 1

2MB-E5481-40-00

Unavailable

17

PIPE, OIL 1

2MB-E3416-00-00

Unavailable

18

PIPE, OIL 2

2MB-E3418-00-00

Unavailable

19

SPROCKET, DRIVEN

2MB-E3355-00-00

Unavailable

20

NUT, SPECIAL

2MB-E1459-00-00

Unavailable

21

CHAIN, PRIMARY

2MB-E1456-00-00

Unavailable

22

PIPE, DELIVERY 2

2MB-E3171-00-00

Unavailable

23

BOLT, BANJO

2MB-E3165-00-00

Unavailable

24

GASKET

2MB-E8363-00-00

Unavailable

25

HOSE, OIL 1

2MB-E316F-00-00

Unavailable

26

PIPE, DELIVERY 3

2MB-E3181-00-00

Unavailable

27

CLAMP

2MB-E5485-00-00

Unavailable

28

BOLT, BANJO

2MB-E3166-00-00

Unavailable

29

GASKET

2MB-E1195-00-00

Unavailable

30

BALL

2MB-E8218-00-00

Unavailable

31

SPRING

2MB-E3469-00-00

Unavailable

32

PLUG

2MB-E3455-00-00

Unavailable

33

PIPE, DELIVERY 1

2MB-E3161-00-00

Unavailable

34

BOLT, UNION

2MB-E2858-00-00

Unavailable

35

GASKET

2MB-E3476-00-00

Unavailable
