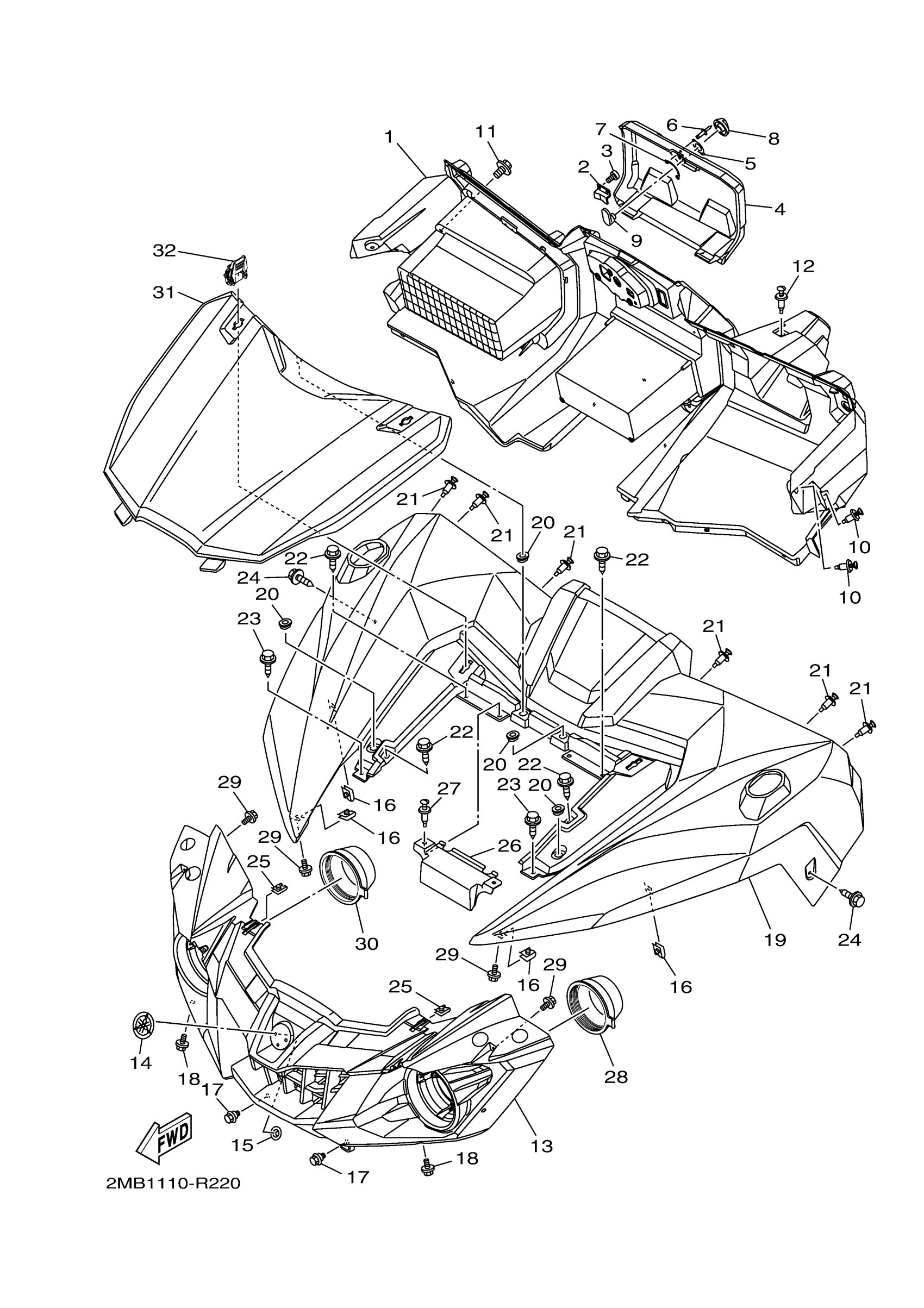

Yamaha YXE70WPAGW (WOLVRINE R-SPEC EPS) 2MBB 2016 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2MB-K7711-01-00

Unavailable

2

BRACKET, COVER

1XD-F139T-00-00

$2.26

3

SCREW, TAPPING

90164-04800-00

$0.44

4

LID

1XD-F160F-00-00

Unavailable

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$6.17

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.77

8

LOCK 1

1XD-2837G-00-00

$3.26

9

LOCK 2

1XD-2837H-00-00

$2.30

10

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

GRILLE, FRONT

2MB-F8309-00-00

$460.59

14

TUNING FORK MARK

1XD-F175B-01-00

$12.28

15

NUT, SPRING

90183-06071-00

$0.50

16

NUT, SPRING

90183-060A6-00

Unavailable

17

BOLT

90109-06202-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$2.12

19

FENDER, FRONT

2MB-F1511-30-00

$236.15

20

GROMMET(4DN)

90480-01558-00

Unavailable

21

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

22

BOLT, WITH WASHER

90119-06226-00

$2.12

23

BOLT, WITH WASHER

90119-06226-00

$2.12

24

BOLT, WITH WASHER

90119-06226-00

$2.12

25

NUT, SPRING

90183-060A6-00

Unavailable

26

COVER,REAR FENDER

1XD-F163A-01-00

Unavailable

27

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

28

CAP

3B4-28349-00-00

Unavailable

29

BOLT, HEXA W/W

90119-06018-00

Unavailable

30

CAP

3B4-28349-00-00

Unavailable

31

HOOD 1

1XD-F1982-30-00

Unavailable

32

LEVER, LOCK

1XD-2175K-10-00

Unavailable
