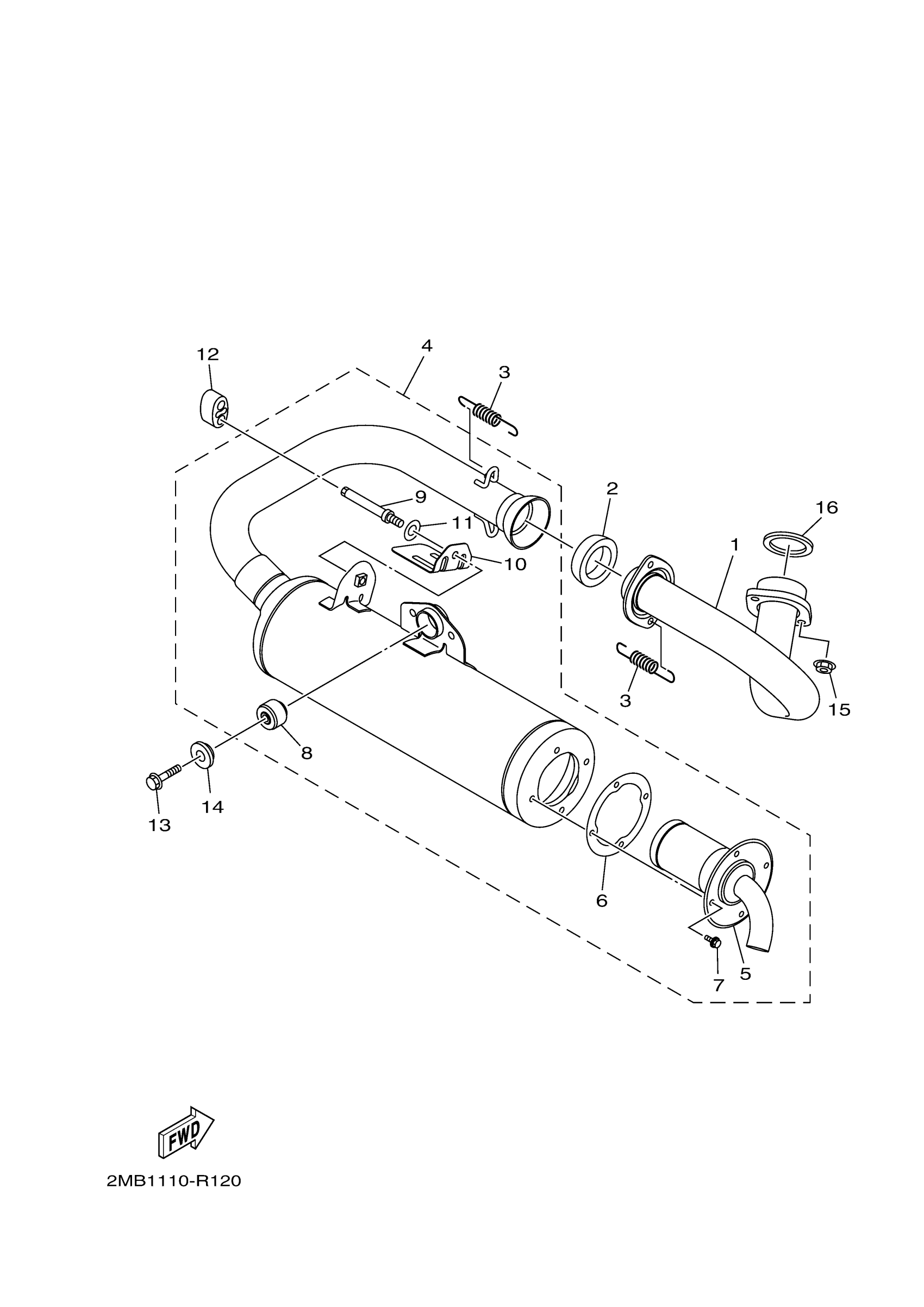

Yamaha YXE70WPAGW (WOLVRINE R-SPEC EPS) 2MBB 2016 EXHAUST Diagram

Description

Price

PIPE, EXHAUST 1

2MB-E4611-00-00

$107.44

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

SPRING, TENSION

90506-26012-00

$11.25

MUFFLER ASY L

2MB-E4710-01-00

Unavailable

SPARK ARRESTER ASS

2BG-E4780-00-00

$56.31

GASKET, SILENCER

2MB-E4755-00-00

$17.87

BOLT, FLANGE

95022-06012-00

$2.80

DAMPER,FOOTREST

1HP-F7414-00-00

$18.79

SHAFT

1XD-E4745-00-00

$23.50

. PLATE, MUFFLER

2MB-E4793-00-00

$11.05

. WASHER

92902-08200-00

$0.22

DAMPER, MUFFLER

2MB-14737-00-00

$7.41

BOLT, FLANGE

95817-08040-00

$5.04

WASHER

3B4-14759-01-00

$14.08

NUT,FLANGE(J10)

95702-08500-00

$0.79

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable
