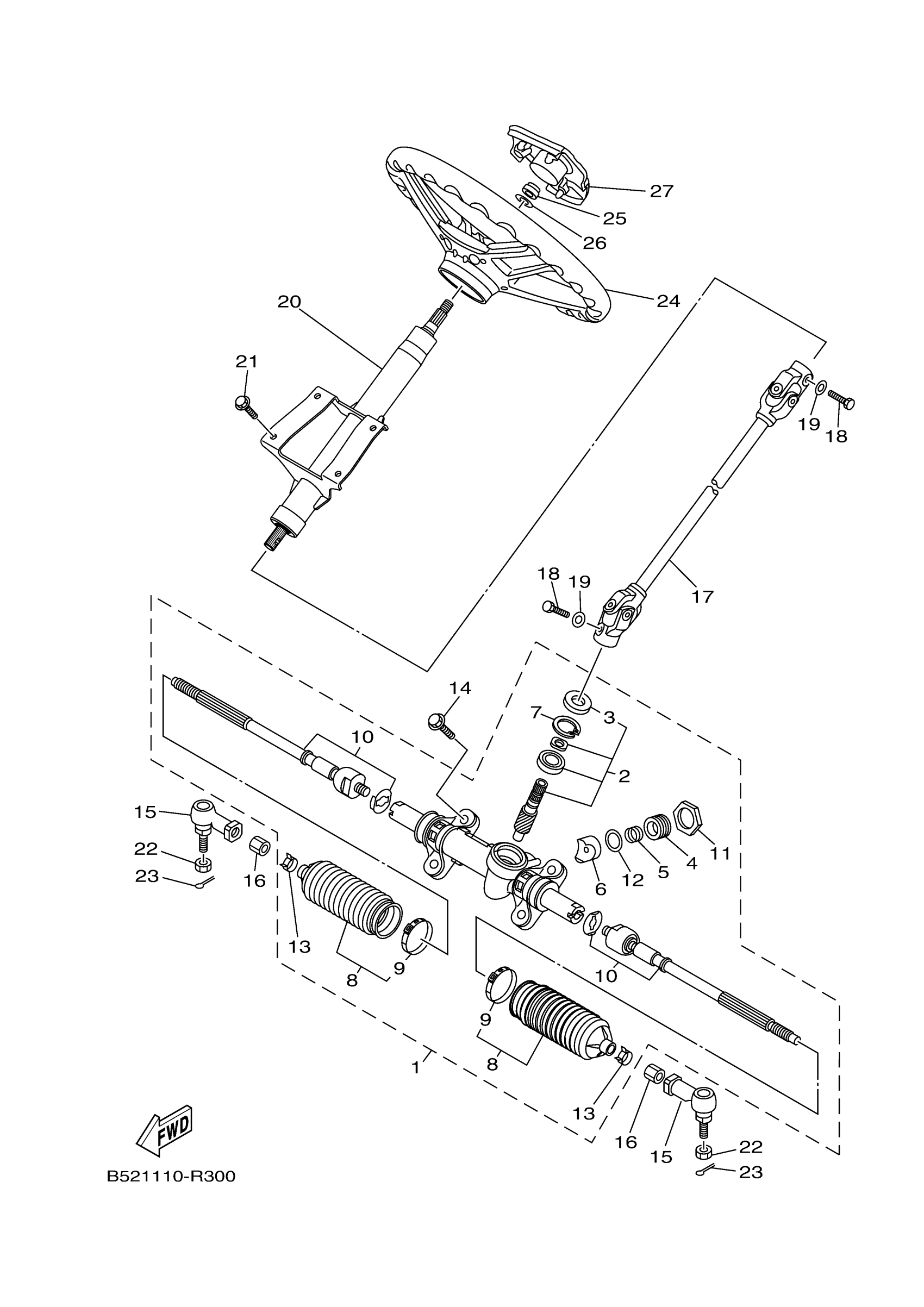

Yamaha YXE70WDXGL (WOLVERINE R-SPEC) B5211 2016 STEERING Diagram

#

Description
Price

1

STEERING ASSY

1XD-F3400-02-00

Unavailable

2

STEERING PINION SET

1XD-F38G0-00-00

$40.99

3

SEAL

1XD-F3844-00-00

$4.94

4

COVER,ADJUST

1XD-F387G-00-00

Unavailable

5

SPRING,PRESSURE

1XD-F387K-00-00

Unavailable

6

PAD,PRESSURE

1XD-F387F-00-00

Unavailable

7

RING,STOPPER

1XD-F387J-00-00

Unavailable

8

SEAL 1 W/ BAND SET OF 2

1XD-F1208-00-00

Unavailable

9

BAND

1XD-F3489-00-00

$2.81

10

RACK END SET

1XD-F38H0-00-00

Unavailable

11

LOCK ASSY

1XD-F178K-00-00

Unavailable

12

WASHER

1XD-F3165-00-00

$1.92

13

CLIP

1XD-F3447-00-00

$1.92

14

BOLT, FLANGE

95022-10030-00

$7.49

15

JOINT, UNIVERSAL 1

5B4-23841-00-00

$69.99

16

NUT 1

2PG-F3833-00-00

Unavailable

17

STEERING SHAFT ASS

2MB-F3840-01-00

Unavailable

18

BOLT, SOCKET

91317-08025-00

Unavailable

19

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

20

COLUMN, STEERING

1XD-F3811-00-00

Unavailable

21

BOLT, FLANGE

95812-08020-00

Unavailable

22

NUT, CASTLE

90171-12001-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable

24

STEERING WHEEL KIT

2HC-F3838-09-00

Unavailable

25

NUT, SELF-LOCKING

90185-12008-00

Unavailable

26

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

27

COVER, STEERING

1XD-F3818-00-00

Unavailable
