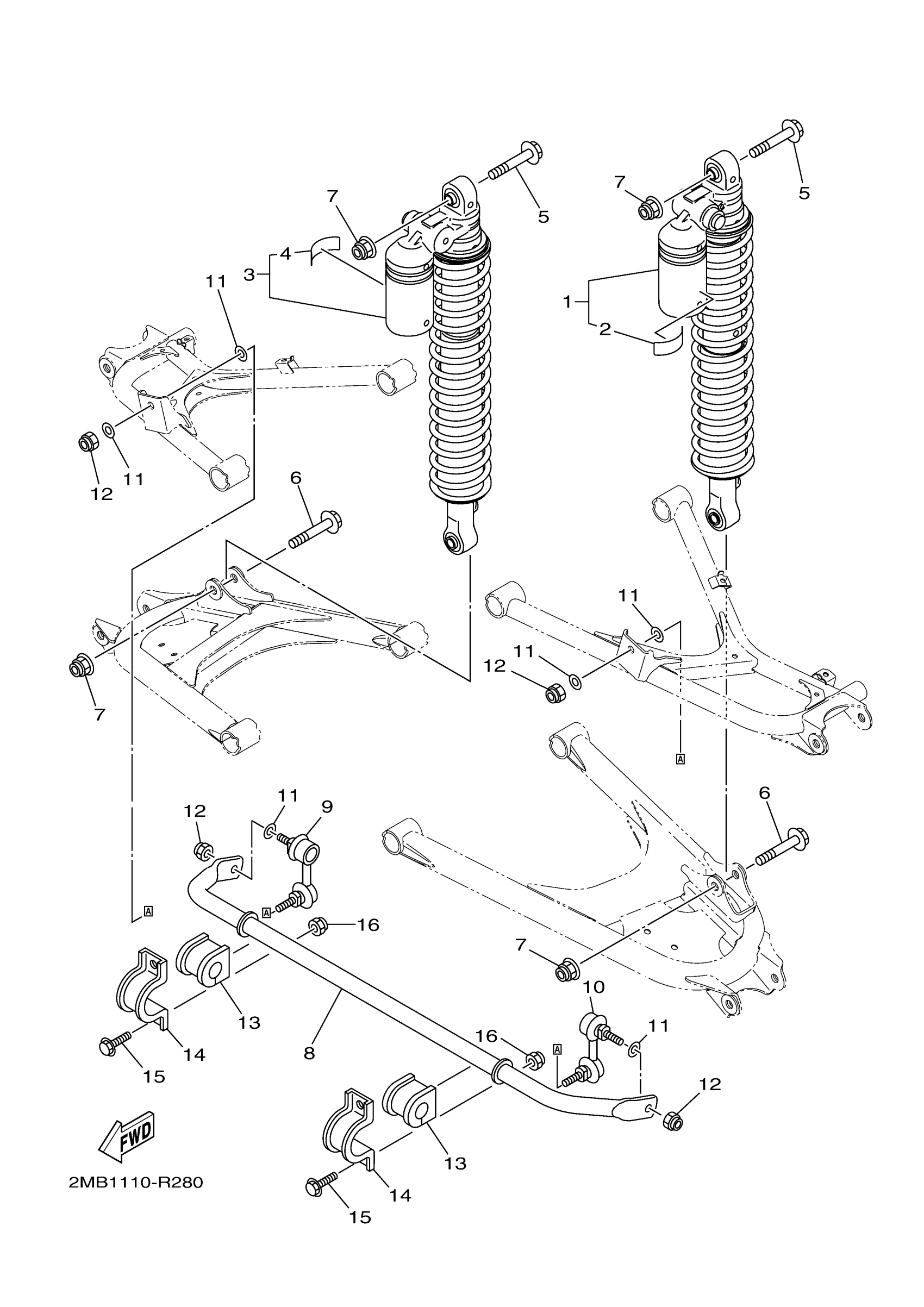

Yamaha YXE70WDXGL (WOLVERINE R-SPEC) B5211 2016 REAR SUSPENSION Diagram

RR. SHOCK ABSORBER

2MB-F220T-00-00

$579.99

LABEL,WARNING

1HP-F2259-01-00

$15.49

RR. SHOCK ABSORBER

2MB-F220U-00-00

$462.99

LABEL,WARNING

1HP-F2259-01-00

$15.49

BOLT, FLANGE

90105-12056-00

$11.49

BOLT, FLANGE

90105-12055-00

$12.49

NUT, SELF-LOCKING

90185-12009-00

$8.49

BAR, STABILIZER

2MB-G7491-00-00

Unavailable

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

WASHER, PLATE

90201-10035-00

$4.19

NUT, SELF-LOCKING

90185-10012-00

$9.49

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

COVER, STABILIZER

1XD-F386H-00-00

$8.99

BOLT, FLANGE

95817-10020-00

$8.49

NUT, SELF-LOCKING

90185-10011-00

Unavailable
