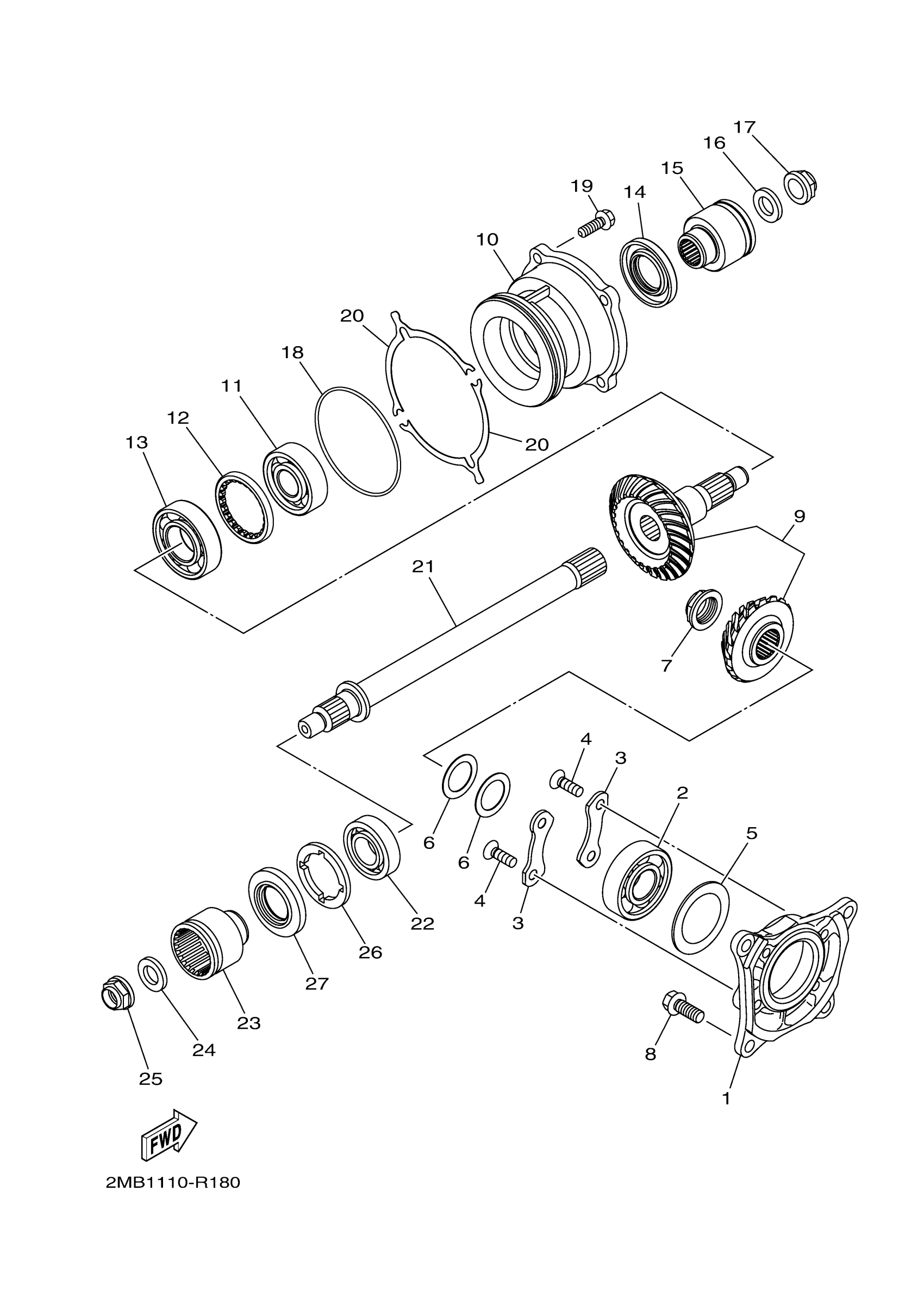

Yamaha YXE70WDXGL (WOLVERINE R-SPEC) B5211 2016 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

2MB-E7521-00-00

Unavailable

2

BEARING

2MB-E7412-00-00

$51.99

3

PLATE, BEARING COV

2MB-E5383-00-00

$12.99

4

SCREW, FIXED

2MB-E765G-00-00

$1.51

5

WASHER, BELLEVILLE

2MB-E7658-00-00

$11.99

6

SHIM, PINION (0.5T)

5KM-17531-50-00

$7.99

6

SHIM, PINION (0.55T)

5KM-17531-60-00

$4.42

6

SHIM, PINION (0.6T)

5KM-17531-70-00

$5.49

6

SHIM, PINION (0.7T)

5KM-17531-80-00

$4.52

6

SHIM, PINION (0.8T)

5KM-17531-90-00

$4.63

6

SHIM, PINION (0.9T)

5KM-17531-A0-00

$4.63

6

SHIM, PINION (1.0T)

5KM-17531-B0-00

$4.94

7

NUT

90179-22013-00

$26.99

8

BOLT 2

2MB-E22A1-00-00

$3.90

9

PINION SET

2PG-17530-01-00

$423.99

10

HOUSING, BEARING

2MB-E7551-00-00

Unavailable

11

BEARING 2

2MB-E7413-00-00

Unavailable

12

NUT

2MB-E7589-00-00

Unavailable

13

BEARING 1

2MB-E7422-00-00

Unavailable

14

OIL SEAL

2MB-E7499-00-00

Unavailable

15

COUPLING

2MB-E7832-00-00

Unavailable

16

WASHER,1

2MB-E7058-00-00

Unavailable

17

Nut

90179-16006-00

Unavailable

18

O-RING

2MB-E76F4-00-00

Unavailable

19

BOLT

2MB-E2615-00-00

Unavailable

20

SHIM, PINION (0.1T)

3B4-17531-00-00

Unavailable

20

SHIM, PINION (0.15T)

3B4-17531-10-00

Unavailable

20

SHIM, PINION (0.2T)

3B4-17531-20-00

Unavailable

20

SHIM, PINION (0.3T)

3B4-17531-30-00

Unavailable

20

SHIM, PINION (0.4T)

3B4-17531-40-00

Unavailable

20

SHIM, PINION (0.5T)

3B4-17531-50-00

Unavailable

20

SHIM, PINION (0.6T)

3B4-17531-60-00

Unavailable

21

SHAFT 1

2MB-E761A-00-00

Unavailable

22

BEARING 2

2MB-E7423-00-00

Unavailable

23

COUPLING

2MB-E7832-00-00

Unavailable

24

WASHER,1

2MB-E7058-00-00

Unavailable

25

Nut

90179-16006-00

Unavailable

26

NUT, BEARING

2MB-E7642-00-00

Unavailable

27

OIL SEAL

2MB-E7499-00-00

Unavailable
