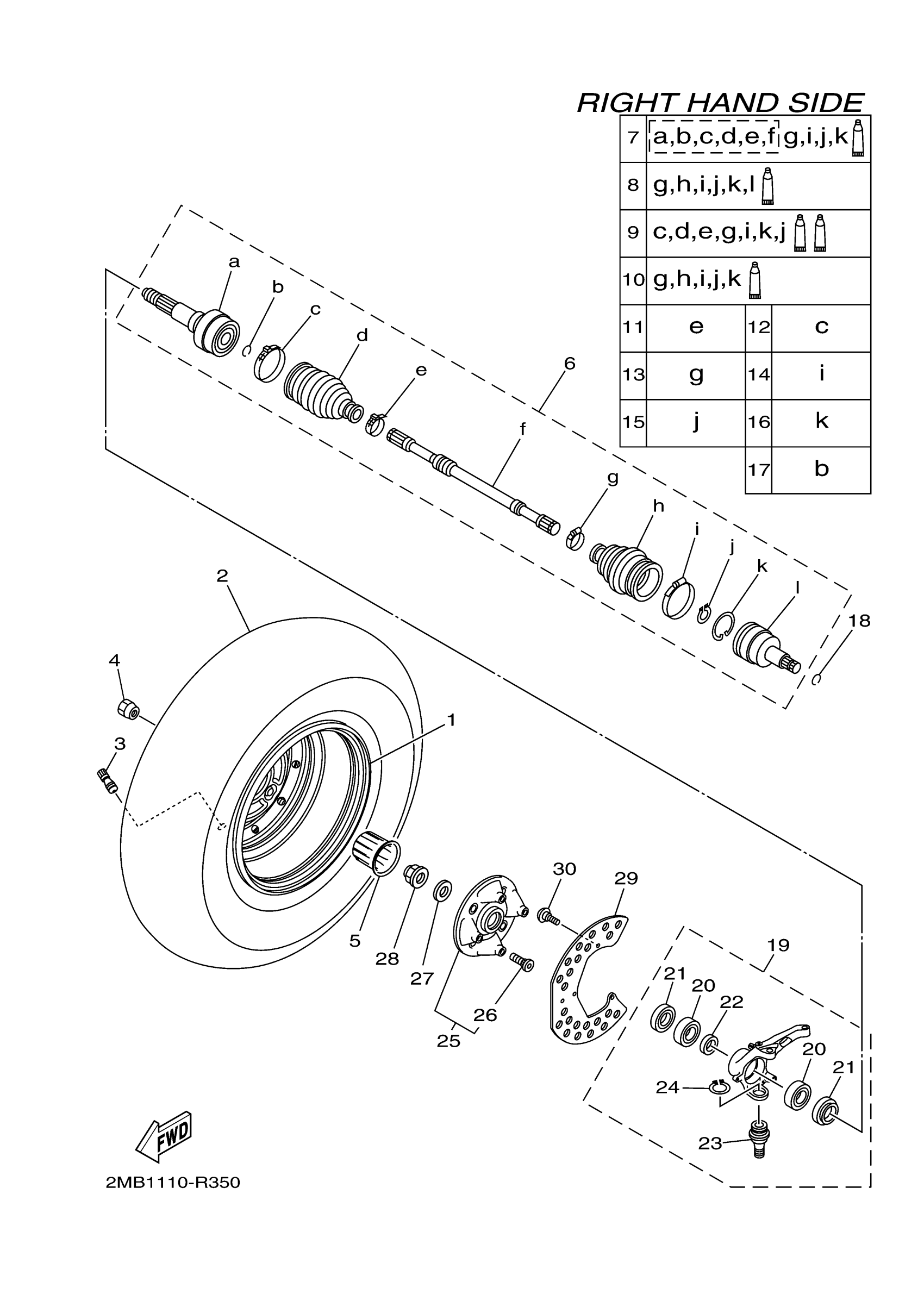

Yamaha YXE70WDXGL (WOLVERINE R-SPEC) B5211 2016 FRONT WHEEL 2 Diagram

#

Description
Price

1

WHEEL COMP.

1XD-F5180-00-00

$113.36

2

TIRE (26X8.00-12 MU09 2PR TL)

94108-12821-00

$319.77

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT (J10)

90179-12262-00

$2.28

5

CAP, WHEEL

2MB-F512A-00-00

$2.78

6

DRIVE SHAFT ASSY

1XD-F518F-01-00

$193.79

7

BALL JOINT SET

1XD-F530T-10-00

$191.91

8

. DOUBLE OFF SET JOINT

1XD-F530V-10-00

$141.68

9

BOOT SET (BALL JOI

1XD-F530X-10-00

$147.70

10

BOOT SET(DOUBLE OF

1XD-F530Y-10-00

$132.95

11

BOOT BAND(DOUBLE O

1XD-F511H-00-00

$15.17

12

. BOOT BAND (BALL JOINT)

1XD-F511G-00-00

$20.65

13

. BOOT BAND (SMALL)

5UG-F510U-00-00

$10.62

14

. BOOT BAND (SMALL)

1XD-F512G-10-00

$14.88

15

SNAP RING

3B4-2512J-00-00

$8.00

16

CIRCLIP

3B4-25182-00-00

Unavailable

17

CIRCLIP

5UG-F512H-00-00

Unavailable

18

CIRCLIP(2HR)

93450-22119-00

Unavailable

19

STEERING KNUCKLE A

1XD-F3502-00-00

Unavailable

20

BEARING

93306-20725-00

Unavailable

21

OIL SEAL

93106-50002-00

Unavailable

22

COLLAR

90387-35007-00

Unavailable

23

BALL JOINT 2

1XD-23579-00-00

Unavailable

24

CIRCLIP

93410-32075-00

Unavailable

25

HUB ASSY 2

2MB-F510D-04-00

Unavailable

26

BOLT, SERRATION

90114-12002-00

Unavailable

27

WASHER, PLATE

90201-25023-00

Unavailable

28

NUT

90179-24006-00

Unavailable

29

RING, WHEEL 1

1XD-F514A-01-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
