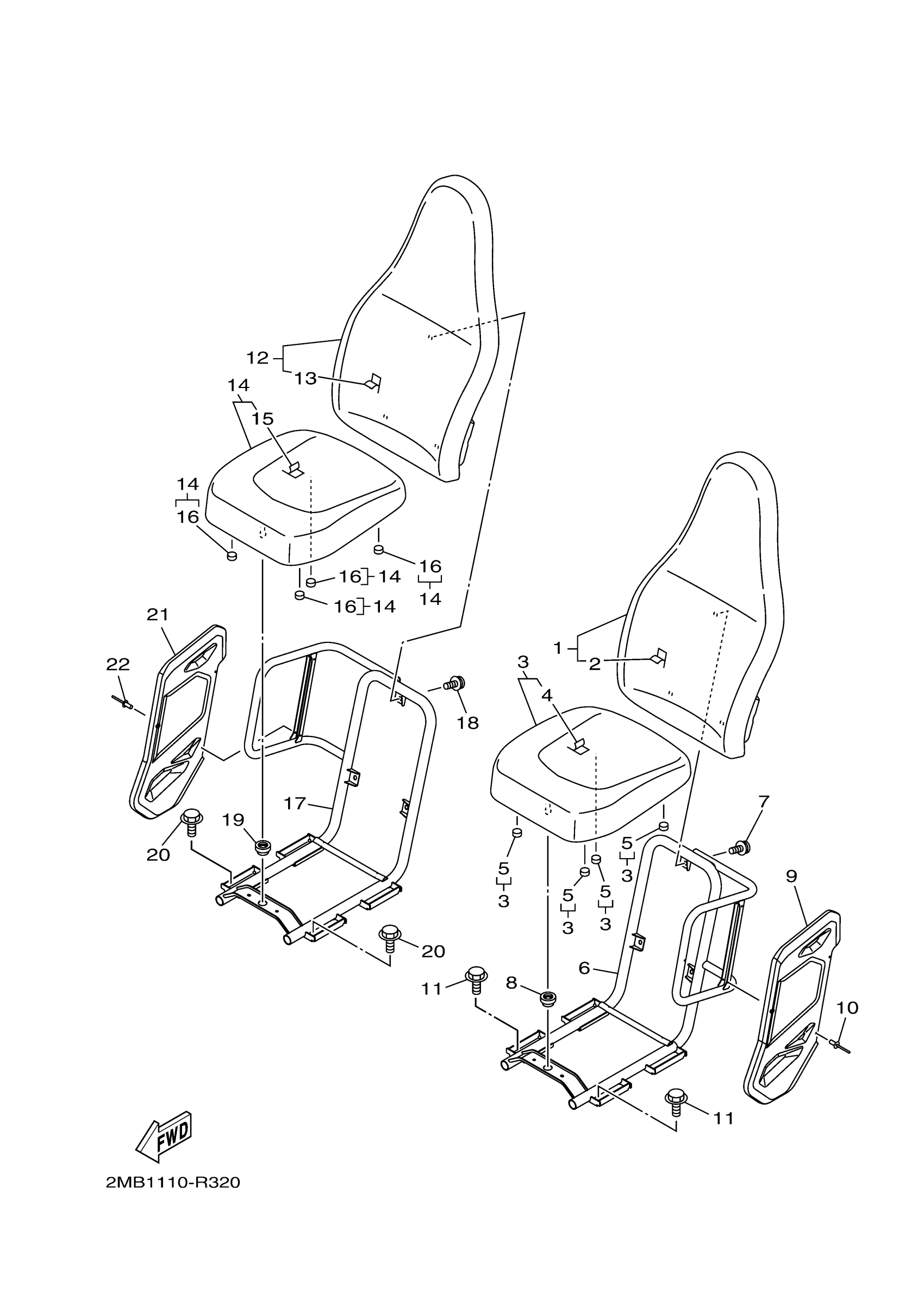

Yamaha YXE70WDHGH (WOLVERINE R-SPEC HUNTER) B524 2016 SEAT Diagram

#

Description
Price

1

SEATBACKASSY

2MB-F4790-01-00

Unavailable

2

COVER,SINGLESEAT

2MB-F4711-01-00

Unavailable

3

SEAT ASSY

1XD-F4700-01-00

Unavailable

4

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

5

DAMPER, SEAT

1XD-F4723-00-00

$1.47

6

FRAME, SEAT 1

1XD-F473C-01-00

$294.55

7

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

8

GROMMET

1XD-F4742-00-00

$2.96

9

COVER,2

1XD-F475X-01-00

$31.03

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

11

BOLT, FLANGE

95817-08012-00

$3.71

12

SEATBACKASSY

2MB-F4790-01-00

Unavailable

13

COVER,SINGLESEAT

2MB-F4711-01-00

Unavailable

14

SEAT ASSY

1XD-F4700-01-00

Unavailable

15

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

16

DAMPER, SEAT

1XD-F4723-00-00

$1.47

17

FRAME, SEAT 2

1XD-F473D-01-00

$253.64

18

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

19

GROMMET

1XD-F4742-00-00

$2.96

20

BOLT, FLANGE

95817-08012-00

$3.71

21

COVER,2

1XD-F475X-01-00

$31.03

22

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11
