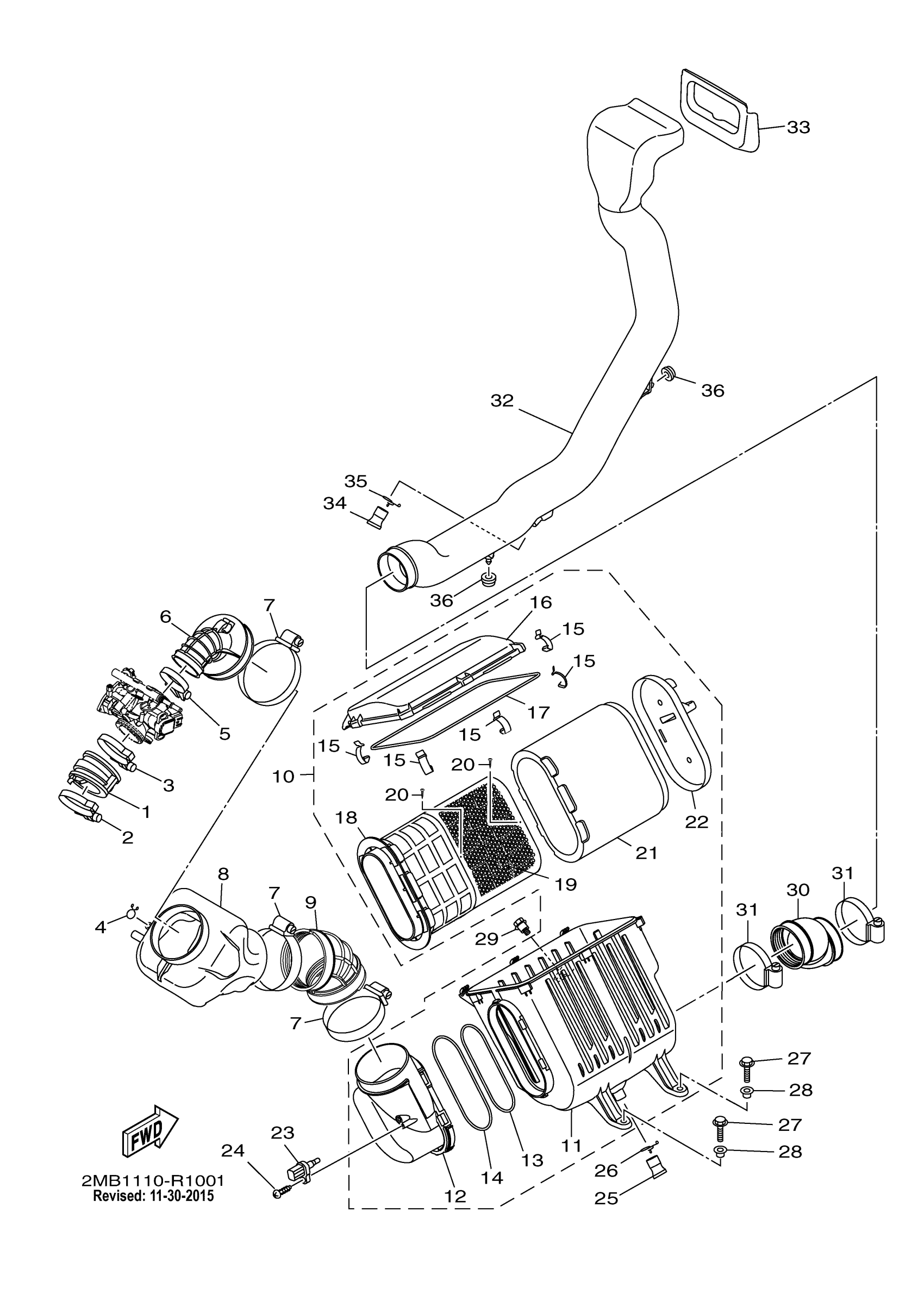

Yamaha YXE70WDHGH (WOLVERINE R-SPEC HUNTER) B524 2016 INTAKE Diagram
#
1
JOINT, CARBURETOR
2MB-E3586-00-00
$37.99
2
CLAMP, HOSE 2
2MB-E1388-00-00
$18.49
3
HOSE CLAMP ASSY
90450-72004-00
$18.99
4
CLIP
90467-16181-00
$7.49
5
HOSE CLAMP ASSY
90450-62006-00
$12.49
6
JOINT, AIR CLEANER
1XD-E4453-00-00
$30.99
7
HOSE CLAMP ASSY
90450-99004-00
Unavailable
8
SILENCER,INTAKE 1
1XD-E4431-02-00
$40.99
9
JOINT, AIR CLEANER
1XD-E4463-00-00
$24.99
10
AIR CLEANER ASY.1
1XD-E4410-02-00
$207.99
11
CASE, AIR CLEANER
1XD-E4411-01-00
$75.99
12
GUIDE
1XD-E4458-00-00
$27.99
13
. SEAL
1XD-E4462-01-00
Unavailable
14
. SEAL
1XD-E4467-00-00
Unavailable
15
CLIP, CAP FITTING
3B4-14424-00-00
$7.99
16
CAP, CLEANER CASE
1XD-E4412-01-00
Unavailable
17
SEAL
1XD-E4452-00-00
Unavailable
18
PLATE, ELEMENT
1XD-E4472-00-00
Unavailable
19
NET 2
1XD-E441B-00-00
Unavailable
20
SCREW
1XD-E4429-00-00
Unavailable
21
ELEMENT, AIR CLEAN
1XD-E4451-00-00
Unavailable
22
COVER 1
1XD-E4417-00-00
Unavailable
23
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
24
SCREW, PANHEAD TAPPING
97702-50520-00
Unavailable
25
SEAL
59V-14457-00-00
Unavailable
26
CLIP
90467-220A1-00
Unavailable
27
BOLT, FLANGE
90105-06833-00
Unavailable
28
COLLAR 8111266500
90387-07037-00
Unavailable
29
BOLT
90109-06262-00
Unavailable
30
SEAL
2MB-E4476-00-00
Unavailable
31
HOSE CLAMP ASSY
90450-94001-00
Unavailable
32
DUCT
2PG-E443A-01-00
Unavailable
33
GASKET, DUCT
2MB-F839U-00-00
Unavailable
34
SEAL
59V-14457-00-00
Unavailable
35
CLIP
90467-220A1-00
Unavailable
36
GROMMET(4FU)
90480-13567-00
Unavailable
