DRIVE SHAFT

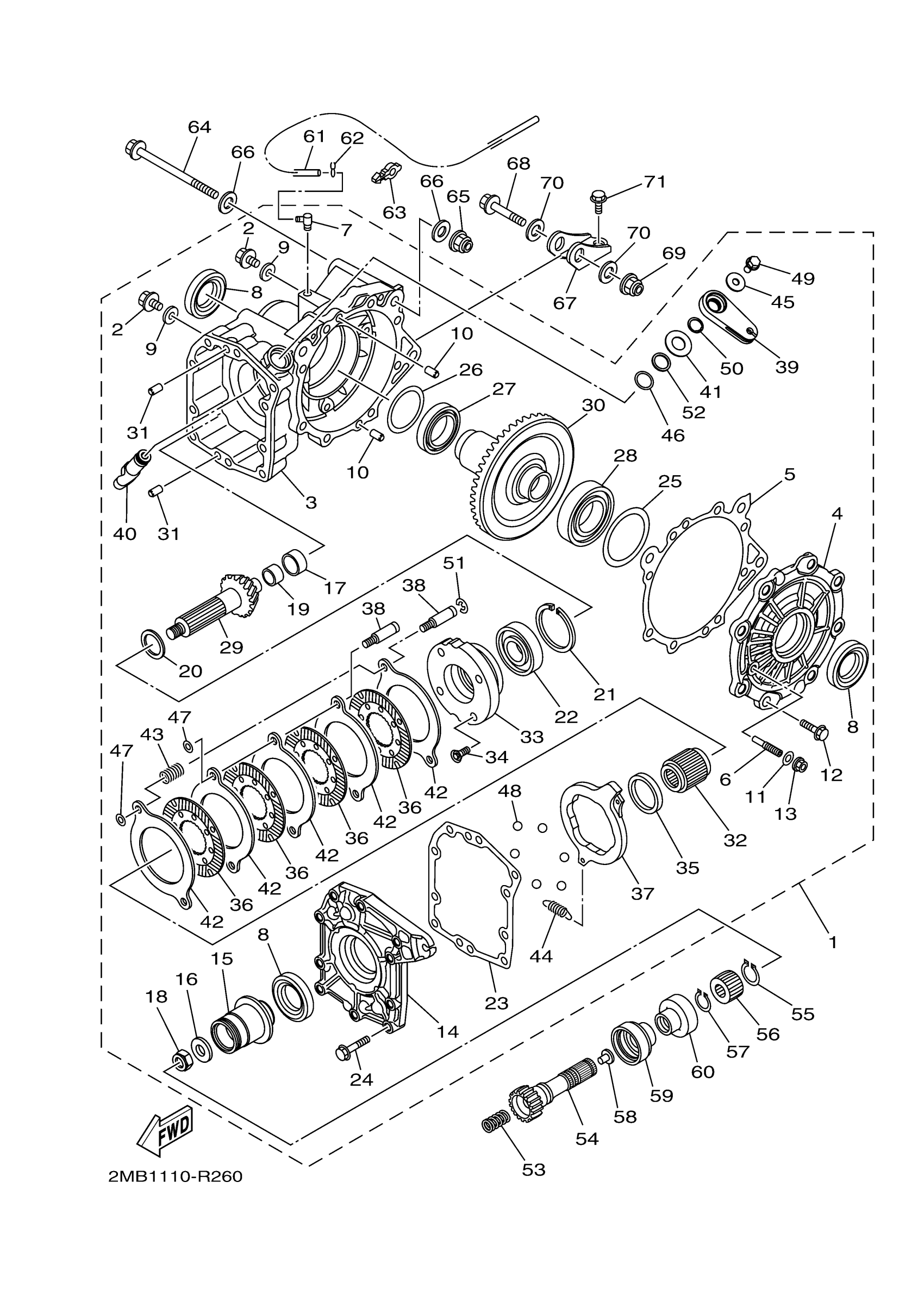

Yamaha YXE70WDHGH (WOLVERINE R-SPEC HUNTER) B524 2016 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CAS
2MB-G6101-01-00
$1,149.99
2
BOLT
1XD-E2228-00-00
$4.94
3
. HOUSING, DRIVE SHAFT
2MB-G6151-00-00
Unavailable
4
HOUSING, BEARING
1XD-G6152-00-00
$108.99
5
GSKT., CASE
1XD-G631A-00-00
$13.49
6
. STOPPER, RING GEAR
1CT-G6156-00-00
Unavailable
7
. BREATHER
1CT-E5371-00-00
Unavailable
8
OIL SEAL
1XD-E511B-00-00
$8.49
9
GASKET
1CT-E1195-00-00
$6.99
10
ROLLER
1CT-E3362-00-00
$3.66
11
GASKET
1CT-G6819-00-00
$3.59
12
BOLT
1XD-E2157-10-00
$9.99
13
. NUT, ADJUSTING
1CT-E3275-00-00
Unavailable
14
. COVER
2MB-G2134-00-00
Unavailable
15
BOSS, CONNECTOR
2MB-F1753-00-00
$167.99
16
WASHER 1
1CT-E1557-00-00
Unavailable
17
BEARING 1
1XD-E1428-00-00
Unavailable
18
NUT, LOCK
1CT-E6377-00-00
Unavailable
19
CLIP
1XD-G5319-00-00
Unavailable
20
WHEEL, SPROCKET 1
1XD-G7531-00-00
Unavailable
21
CLIP
1XD-E1486-00-00
Unavailable
22
BEARING
93306-30574-00
Unavailable
23
GASKET, COVER
2MB-G631E-00-00
Unavailable
24
. BOLT
2MB-E2157-00-00
Unavailable
25
SHIM
1XD-G5567-00-00
Unavailable
26
SHIM
1XD-G5577-00-00
Unavailable
27
BEARING
1XD-E7051-00-00
Unavailable
28
BEARING 2
1XD-E1429-00-00
Unavailable
29
. GEAR, DRIVE PINION
2MB-G6121-00-00
Unavailable
30
. RING GEAR COMP
2MB-G6110-00-00
Unavailable
31
ROLLER
1CT-E3362-00-00
$3.66
32
. COUPLING
2MB-G6126-00-00
Unavailable
33
. HOLDER, BEARING
2MB-F3872-00-00
Unavailable
34
. BOLT, HOLDER
2MB-E1982-00-00
Unavailable
35
BEARING,6808
2MB-F1428-00-00
Unavailable
36
INSERT, PLATE
2MB-F5345-00-00
Unavailable
37
. PLATE, GUIDE
2MB-F5689-00-00
Unavailable
38
BOLT, LOCK PLATE
2MB-G2478-00-00
Unavailable
39
. LEVER, CAMSHAFT
2MB-F5355-00-00
Unavailable
40
CAMSHAFT
2MB-F5351-00-00
Unavailable
41
. WASHER
1CT-E2289-10-00
Unavailable
42
PLATE 1
1CT-F539F-00-00
Unavailable
43
SPRING, RETURN
1CT-G6277-00-00
Unavailable
44
. SPRING
2MB-F476L-00-00
Unavailable
45
WASHER 2
1CT-G1298-00-00
Unavailable
46
RING,SEAL
1CT-E4005-10-00
Unavailable
47
WASHER, 1
1CT-G1297-00-00
Unavailable
48
BALL
1CT-E7051-00-00
Unavailable
49
. BOLT 2
1CT-E22A1-00-00
Unavailable
50
. CLIP
1CT-E1486-00-00
Unavailable
51
CLIP
1CT-G5319-00-00
Unavailable
52
. SHIM
1CT-E3147-00-00
Unavailable
53
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
54
SHAFT, DRIVE
2MB-G6172-00-00
Unavailable
55
CIRCLIP(1EY)
99009-19400-00
Unavailable
56
COUPLING
5KM-46126-00-00
Unavailable
57
CIRCLIP (537)
93410-22039-00
Unavailable
58
DAMPER
5KM-46559-00-00
Unavailable
59
SEAL 2
5KM-46137-00-00
Unavailable
60
SEAL 1
5KM-46136-00-00
Unavailable
61
HOSE (L1700)
90445-070G6-00
Unavailable
62
CLIP (1J7)
90467-07029-00
Unavailable
63
CLAMP
90464-12830-00
Unavailable
64
BOLT, FLANGE
95812-12130-00
Unavailable
65
NUT, SELF-LOCKING
90185-12002-00
Unavailable
66
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
67
BRKT., RR. AXLE
1XD-F1981-00-00
Unavailable
68
BOLT, FLANGE
90105-12082-00
Unavailable
69
NUT, SELF-LOCKING
90185-12002-00
Unavailable
70
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
71
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
