2018 Yamaha Wolverine (YXE70WDBJD) Starting Motor Diagram

← All diagrams

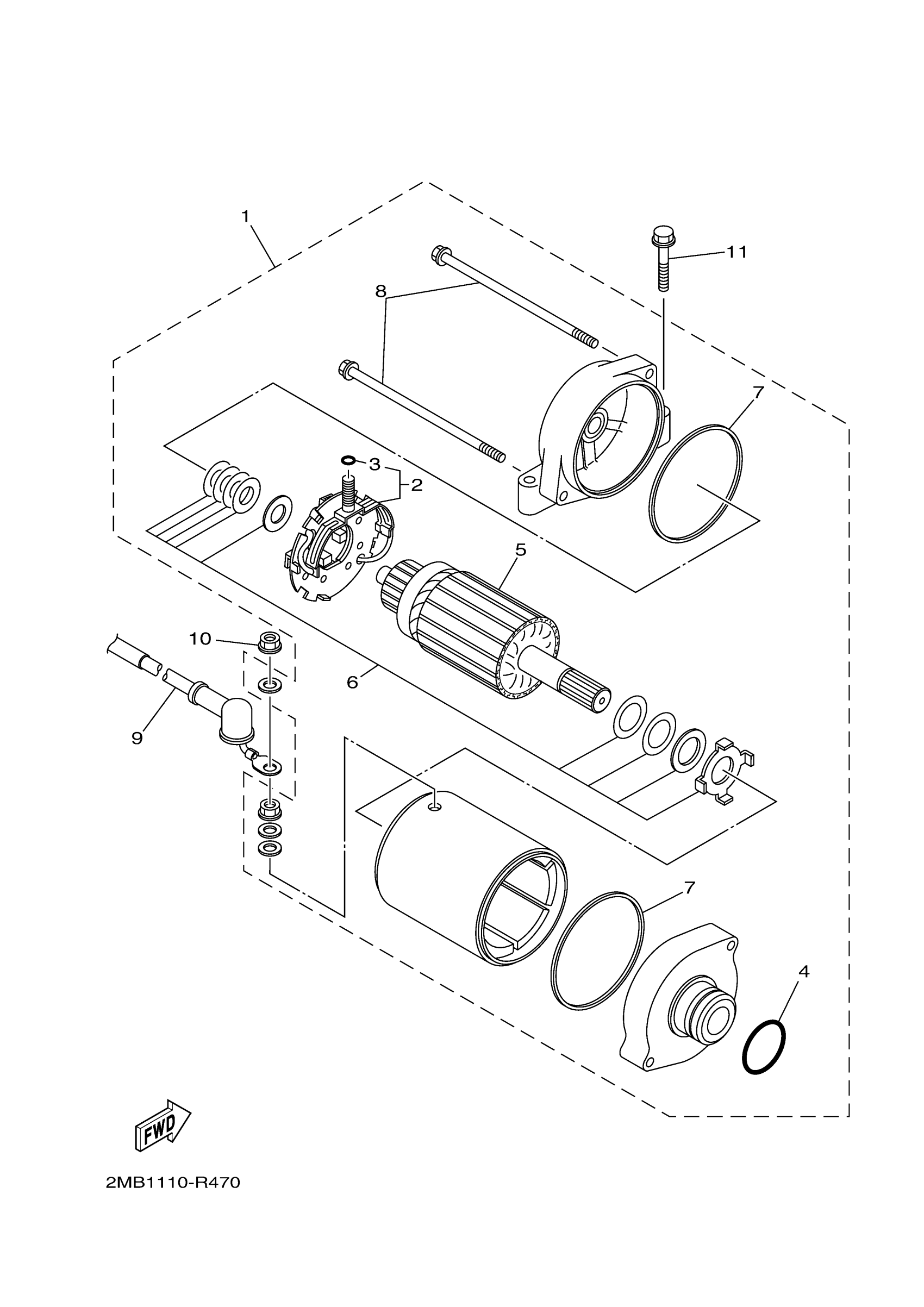

Find the part on the Starting Motor diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

1S3-81890-00-00

1
Out of stock

2

BRUSH SET

3AJ-81801-00-00

1

$110.54

In stock

3

.. O-RING

3TB-81847-00-00

1

$2.31

In stock

4

O-RING (437)

93210-24235-00

1

$5.72

In stock

5

ARMATURE ASSY

4NK-81850-00-00

1
Out of stock

6

WASHER KIT

3KS-81809-00-00

1
Out of stock

7

GASKET

35C-81844-00-00

—

$43.01

In stock

8

BOLT

3AJ-81826-00-00

1

$21.17

In stock

9

CORD, STARTER MOTOR

2MB-H1815-00-00

1

$52.95

In stock

10

NUT

4XV-8182A-00-00

1

$6.28

In stock

11

BOLT 1

2MB-E5481-50-00

—

$1.52

In stock
