2018 Yamaha Wolverine (YXE70WDBJD) Pedal Wire Diagram

← All diagrams

Find the part on the Pedal Wire diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

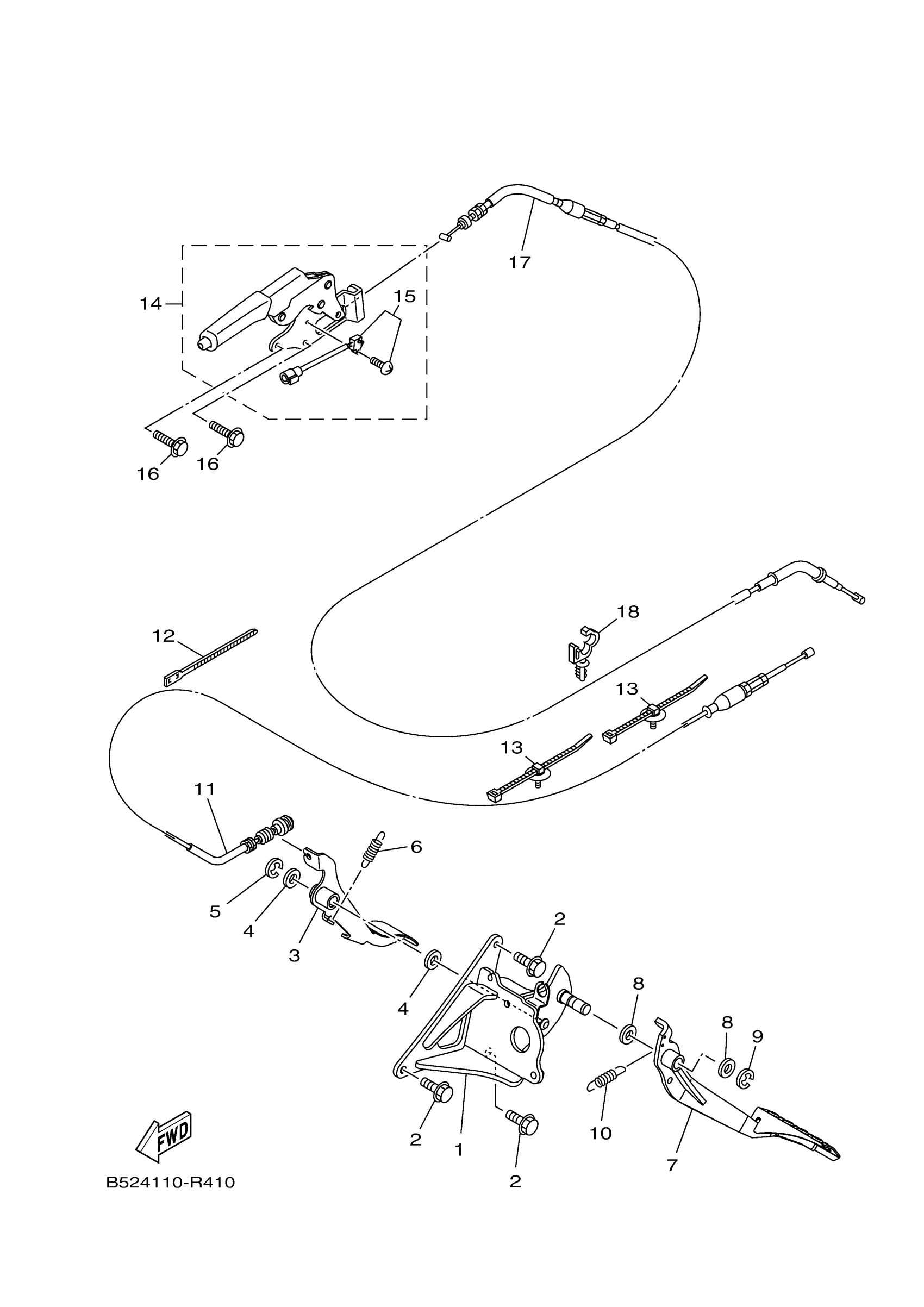

2018 Yamaha Wolverine (YXE70WDBJD) Pedal Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

1

$63.58

In stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

1

$14.38

In stock

4

WASHER, PLATE

90201-15018-00

1

$6.32

In stock

5

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

6

SPRING, TENSION

90506-23023-00

1

$3.97

In stock

7

PEDAL, BRAKE

1XD-F7200-00-00

1

$28.40

In stock

8

WASHER, PLATE

90201-15018-00

1

$6.32

In stock

9

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

10

SPRING, TENSION (2X4)

90506-20192-00

1
Out of stock

11

CABLE, THROTTLE 1

2MB-26311-00-00

1

$59.63

In stock

12

CLAMP(JN6)

90464-40825-00

1

$1.77

In stock

13

CLAMP

5B4-F1338-00-00

1
Out of stock

14

PARKING LEVER ASSY

BDW-F5690-00-00

1

$74.05

In stock

15

. SWITCH COMP

5UG-H251S-00-00

1
Out of stock

16

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

17

WIRE, BRAKE 1

2MB-26341-02-00

—
Out of stock

18

CLAMP

90464-12830-00

—

$1.02

In stock
