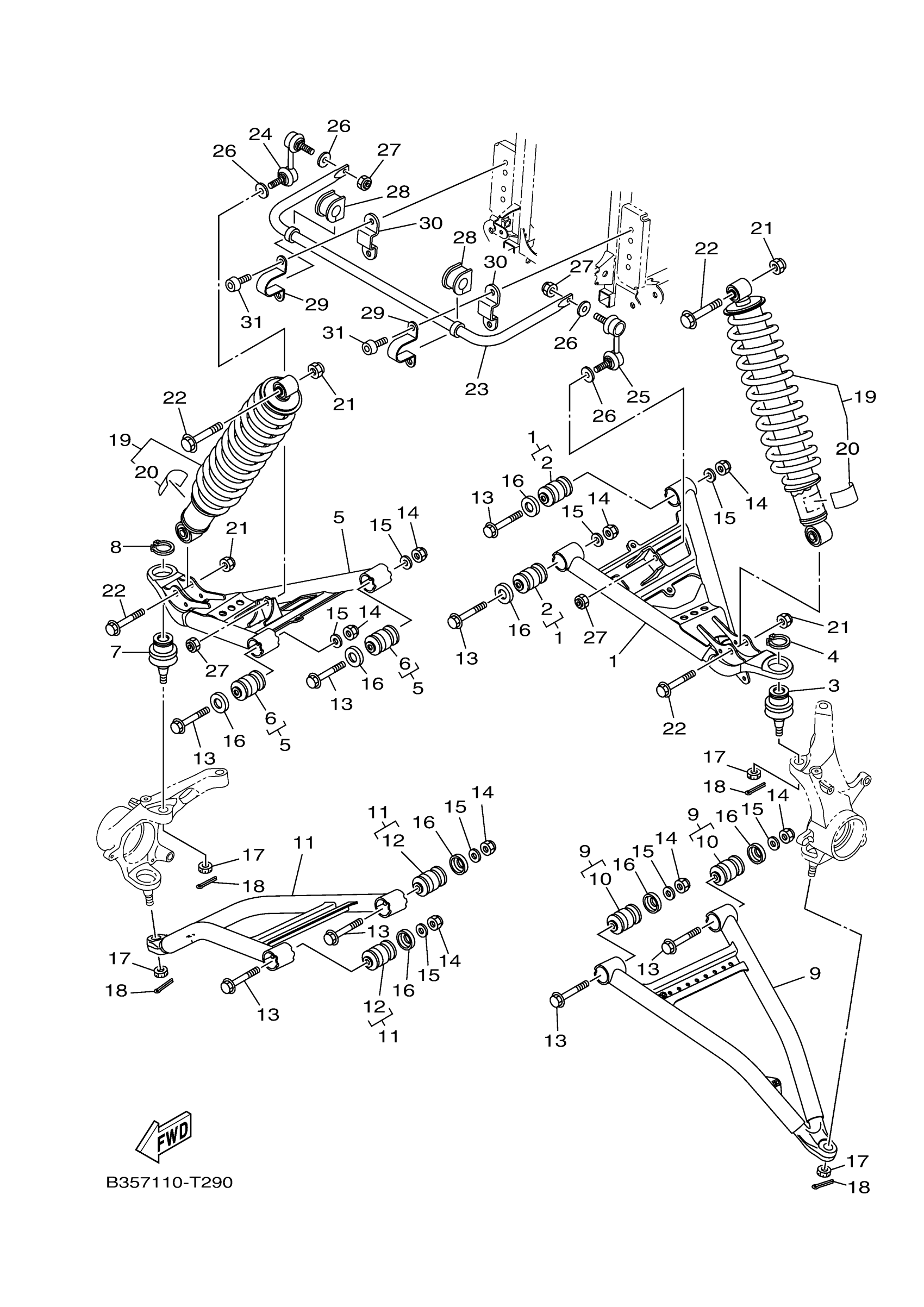

Yamaha YXE70WDBJD (WOLVERINE) B357 2018 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

B3D-F3540-01-00

Unavailable

2

BUSH

1HP-F3526-00-00

$22.99

3

BALL JOINT 2

1XD-23579-00-00

$76.99

4

CIRCLIP

93410-32075-00

$9.49

5

FRONTUPPERARMCOMP.(RIGHT)

B3D-F3550-01-00

$95.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BALL JOINT 2

1XD-23579-00-00

$76.99

8

CIRCLIP

93410-32075-00

$9.49

9

FRONT LOWER ARM CO

2MB-F3570-00-00

$88.99

10

BUSH

1HP-F3526-00-00

$22.99

11

FRONT LOWER ARM CO

2MB-F3580-00-00

Unavailable

12

BUSH

1HP-F3526-00-00

$22.99

13

BOLT, FLANGE

90105-10267-00

$9.49

14

NUT, SELF-LOCKING

90185-10012-00

$9.49

15

WASHER, PLATE

90201-10035-00

$4.19

16

COVER, THRUST 1

BG4-F3517-00-00

Unavailable

17

NUT, CASTLE

90171-12001-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

SHOCK ABSORBER ASS

B35-F3390-00-00

Unavailable

20

LABEL,WARNING

1HP-F2259-01-00

Unavailable

21

NUT, SELF-LOCKING

90185-10012-00

$9.49

22

BOLT, FLANGE

90105-10283-00

Unavailable

23

BAR, STABILIZER FR

B3D-F386E-00-00

Unavailable

24

JOINT, STABILIZER 1

16B-2385L-10-00

Unavailable

25

JOINT, STABILIZER 2

16B-2385M-10-00

Unavailable

26

WASHER, PLATE

90201-10035-00

$4.19

27

NUT, SELF-LOCKING

90185-10012-00

$9.49

28

GROMMET

90480-01819-00

Unavailable

29

BRKT., STABILIZER

B3D-F386B-00-00

Unavailable

30

BRACKET 1

B3D-F3881-00-00

Unavailable

31

BOLT, BUTTON HEAD

92012-08016-00

Unavailable
