- YXE70WDBJD (WOLVERINE) B357 2018
ELECTRICAL 1

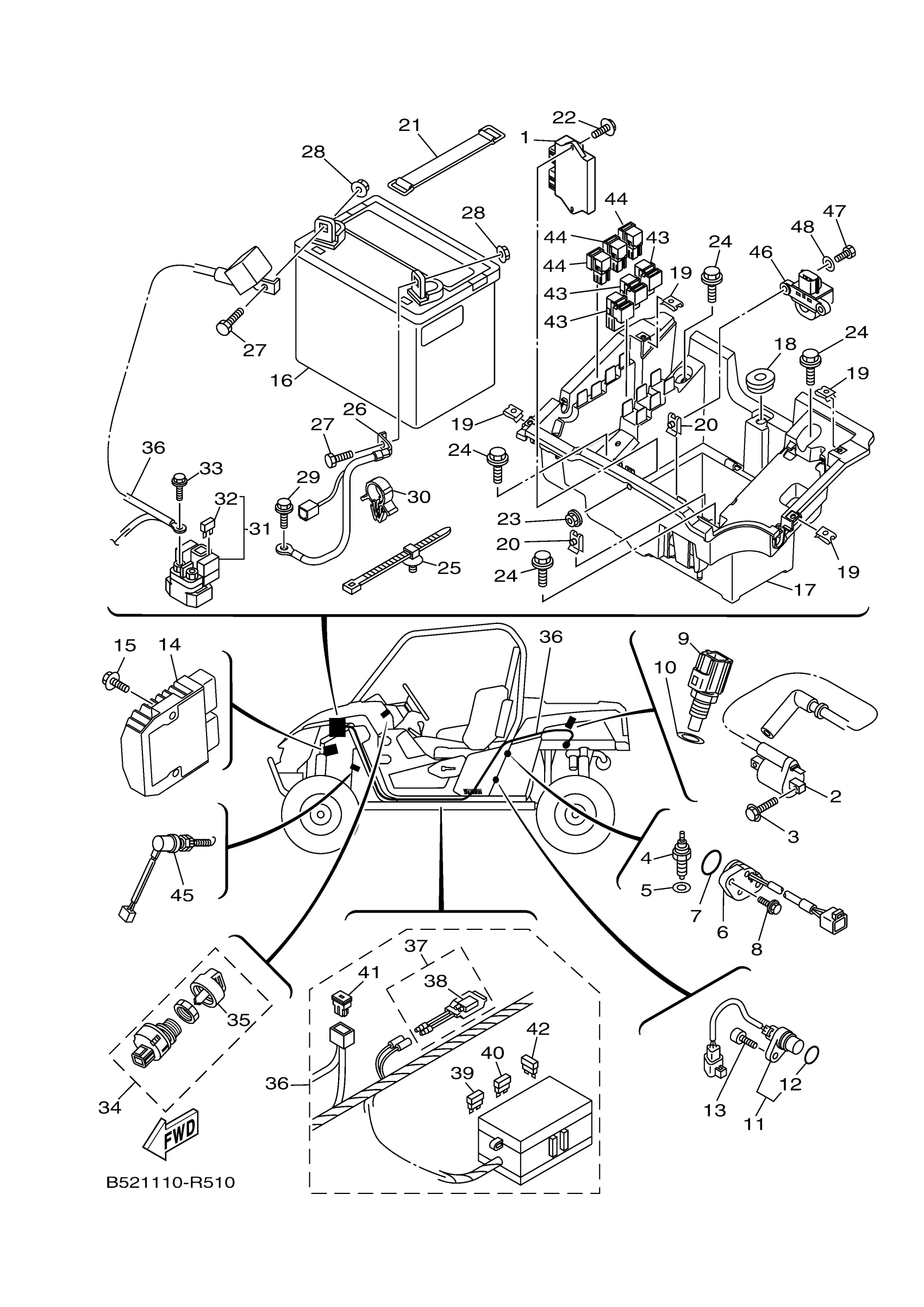

Yamaha YXE70WDBJD (WOLVERINE) B357 2018 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
2MB-8591A-20-00
$667.99
2
IGNITION COIL ASSY
2MB-82320-02-00
Unavailable
3
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
4
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
5
GASKET
2MB-E5384-00-00
$4.37
6
NEUTRAL SWITCH ASS
2MB-H2540-10-00
$67.99
7
O-RING
2MB-E4D97-00-00
$5.49
8
BOLT
2MB-E5768-10-00
Unavailable
9
THERMOSENSOR ASSY
2MB-H5790-00-00
$68.99
10
GASKET
2MB-E1195-00-00
$2.03
11
SENSOR, SPEED
2MB-H3755-00-00
$129.99
12
O-RING
4D9-81168-00-00
$6.99
13
BOLT 1
2MB-E5481-10-00
$1.04
14
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
15
BOLT, FLANGE
90105-06833-00
$2.28
16
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
17
BOX, BATTERY 1
1XD-H212B-00-00
Unavailable
18
GROMMET(4DN)
90480-01558-00
Unavailable
19
NUT, SPRING
90183-060A6-00
Unavailable
20
NUT, SPRING
90183-05008-00
Unavailable
21
BAND, BATTERY
22F-82131-00-00
Unavailable
22
BOLT, FLANGE
95817-06020-00
Unavailable
23
NUT, FLANGE
95702-06500-00
Unavailable
24
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
25
CLAMP
1NS-F1338-00-00
Unavailable
26
WIRE, MINUS LEAD
B52-H2116-00-00
Unavailable
27
BOLT(6TD)
97080-08020-00
Unavailable
28
NUT
90179-08015-00
Unavailable
29
BOLT, FLANGE
95812-06014-00
Unavailable
30
CLAMP(3XV)
90464-15157-00
Unavailable
31
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
32
FUSE (10A)
42X-82151-00-00
Unavailable
33
BOLT, FLANGE
95022-06008-00
Unavailable
34
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
35
CAP, KEY
5UG-H2579-00-00
Unavailable
36
WIRE HARNESS ASSY
B52-82590-00-00
Unavailable
37
CIRCUIT BREAKER ASSY
5B4-82180-00-00
Unavailable
38
THERMO SWITCH ASSY
5B4-82560-00-00
Unavailable
39
FUSE (15A)
67F-82151-50-00
Unavailable
40
. FUSE (10A)
67F-82151-40-00
Unavailable
41
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
42
FUSE (25A-BL)
5JJ-82151-70-00
Unavailable
43
RELAY ASSY
5DM-81950-01-00
Unavailable
44
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
45
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
46
LEAN ANGLE SENSOR
3B4-82576-00-00
Unavailable
47
BOLT(6A1)
97095-05016-00
Unavailable
48
WASHER, PLAIN (646)
92990-05600-00
Unavailable
